XC70 L5-2.5L Turbo VIN 59 B5254T2
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

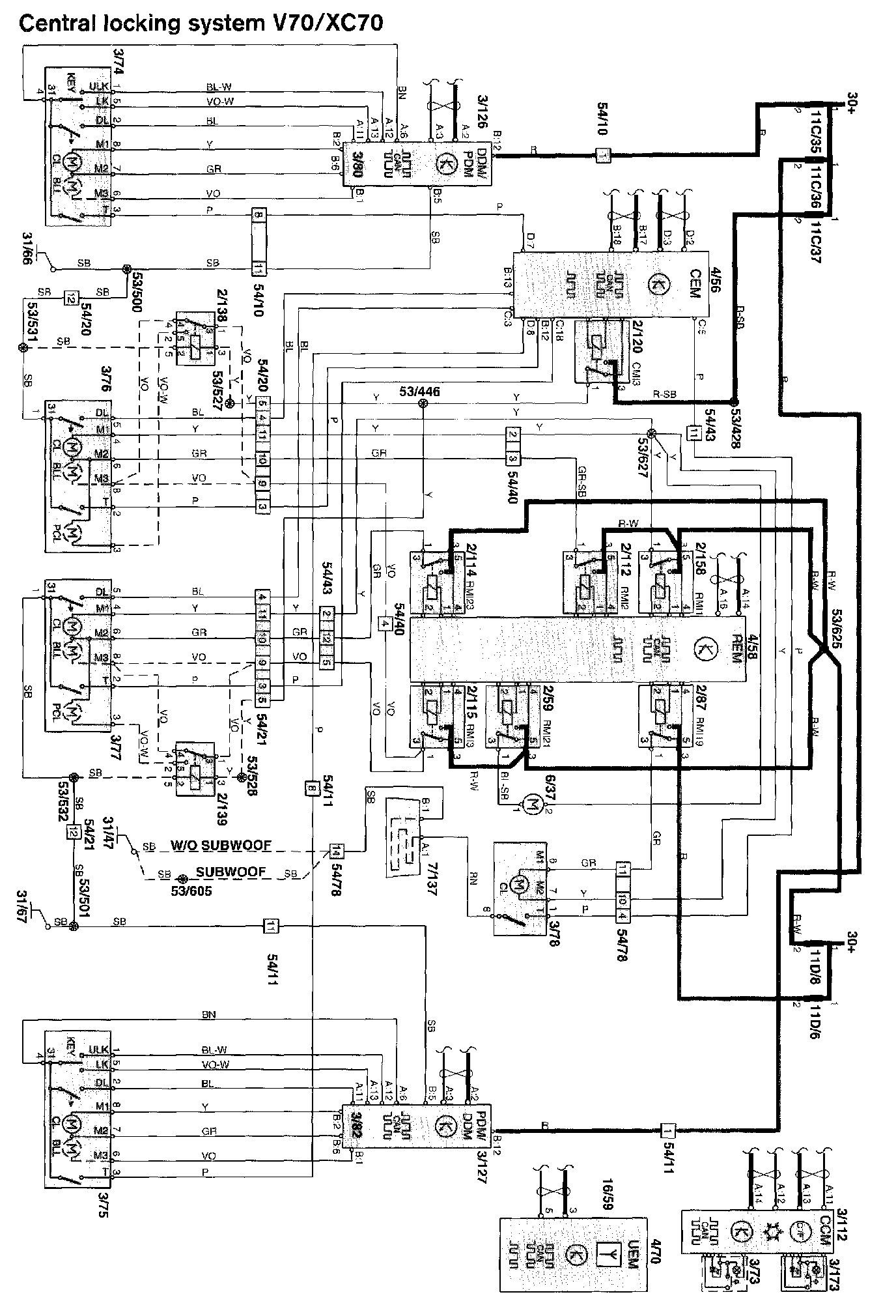

Central Locking System:
Diagram Legend,
Diagram Legend
