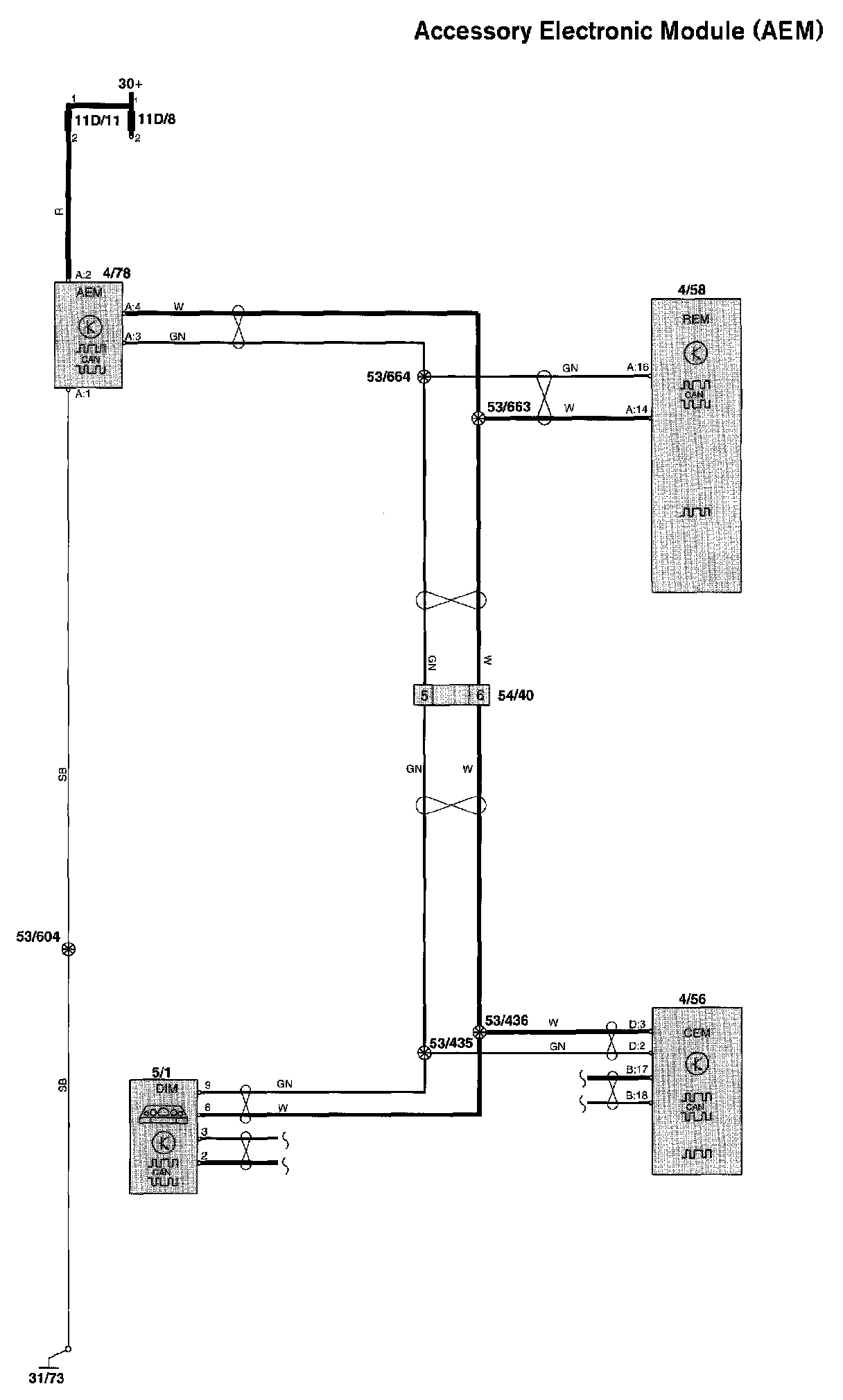

Accessory Electronic Module (AEM)




Accessory Electronic Module (AEM):






Diagram Legend, Diagram Legend
