Checking Supply Ground Lead

Checking supply ground lead

Checking wiring and components

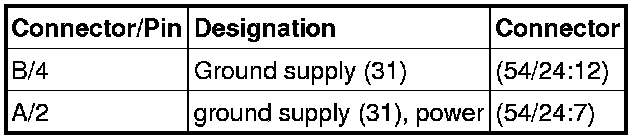

Check ground leads between power seat and ground according to table below for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Check connector.
Fault-trace for a short-circuit to supply voltage if the fuses have blown according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.





Other information:
- For information about connectors/signals, see Signal specification, Power seat module Signal Specification, Power Seat Module (PSM).





Were any faults found?

Yes - Fault Found

No - No Fault Found

-------------------------------------------------
