11D-E/no. Fuses In Cargo Compartment



Fuses In Cargo Compartment

Fuses In The Cargo Compartment:

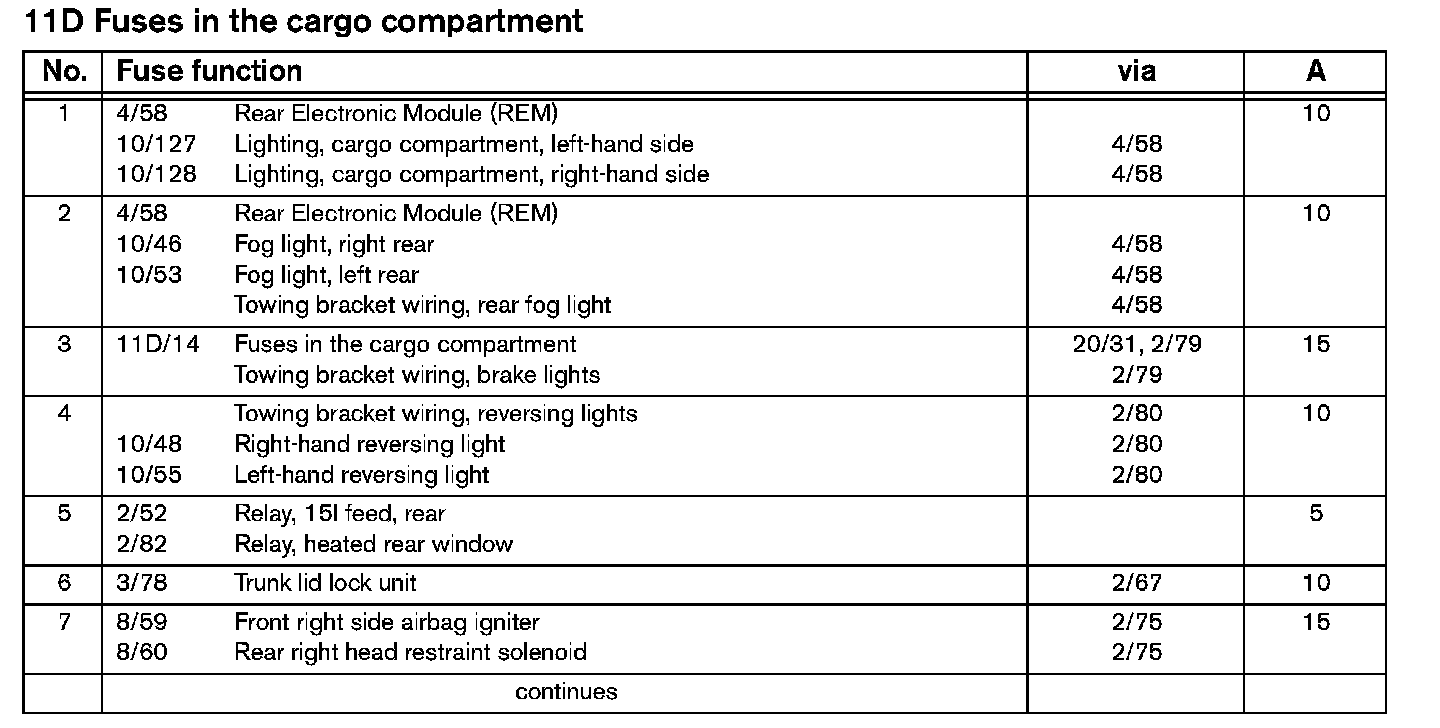

Fuses 11D/1-7:

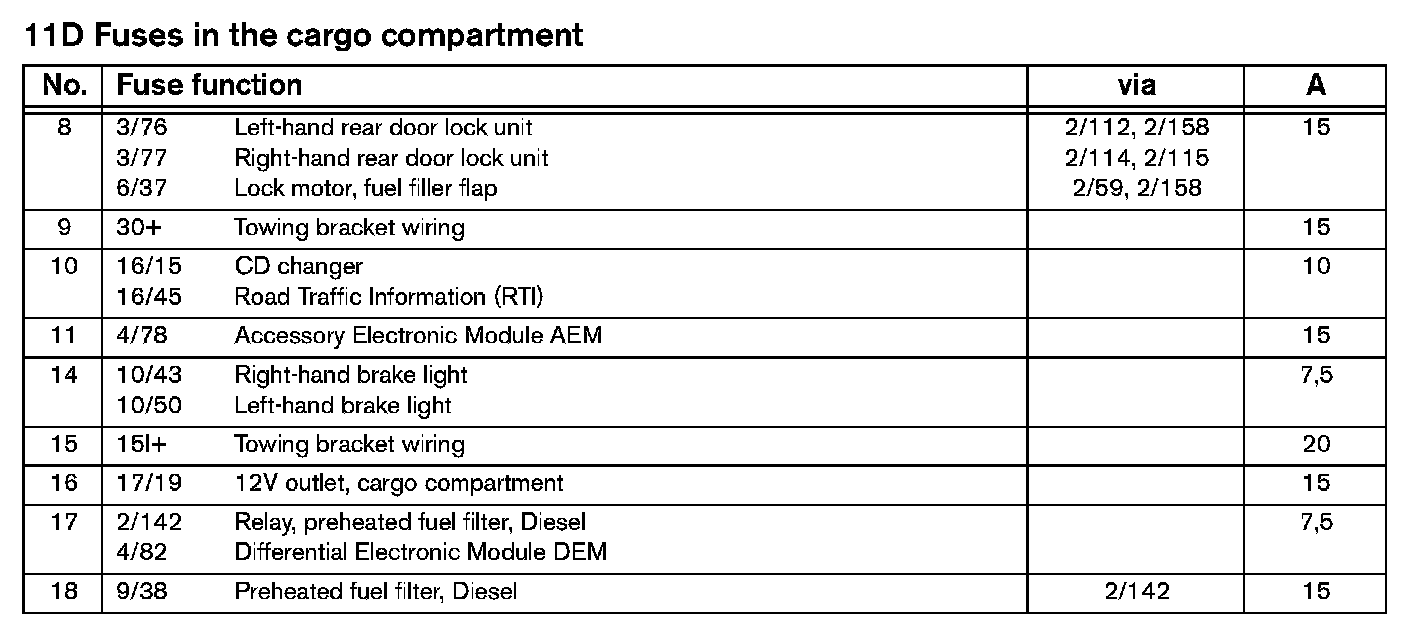

Fuses 11D/8-18:

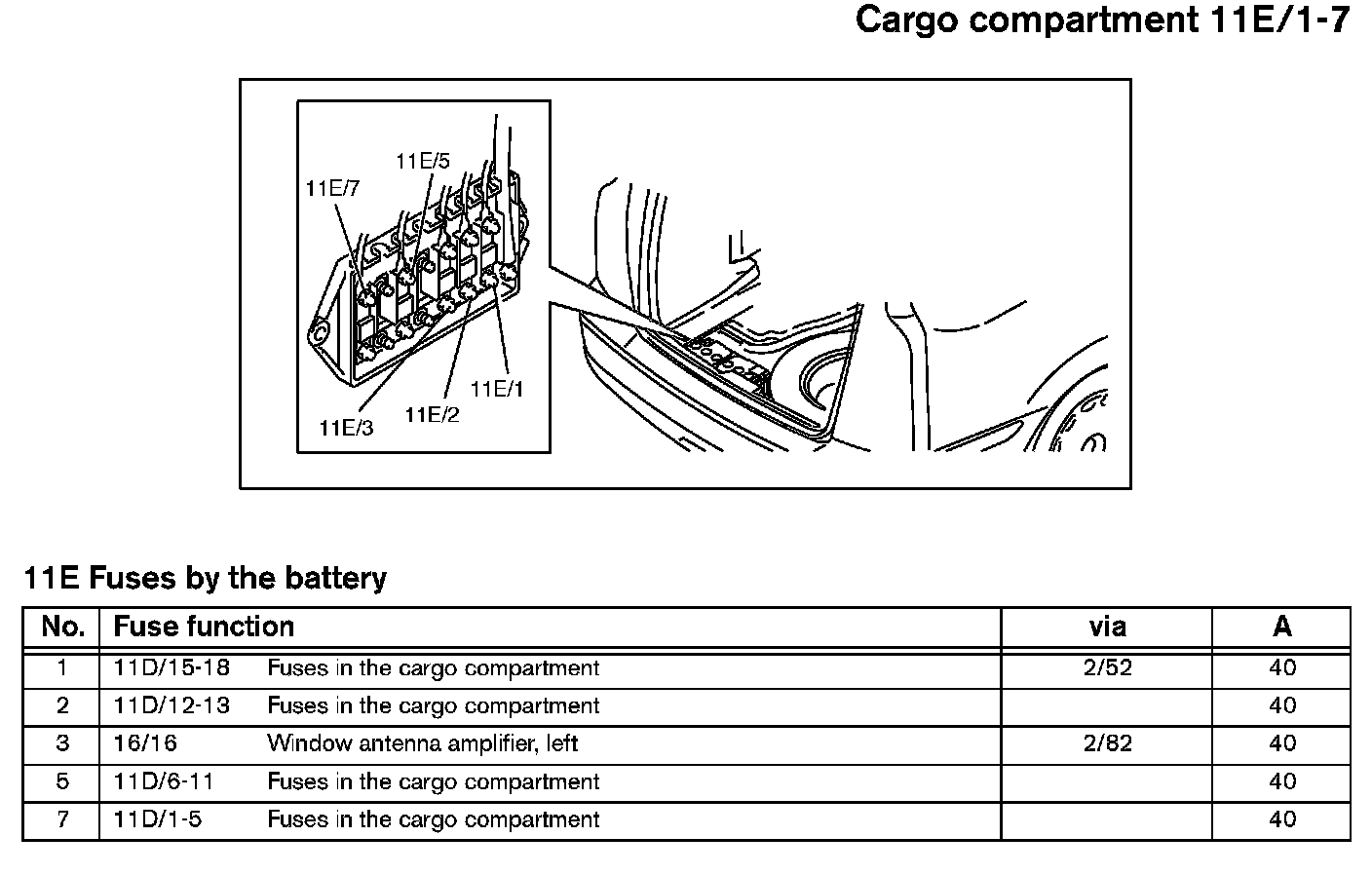

Fuses By The Battery, Fuses 11E/1-7:
