11C/no. Fuses In the Passenger Compartment



Fuses In the Passenger Compartment

Fuses In The Passenger Compartment:

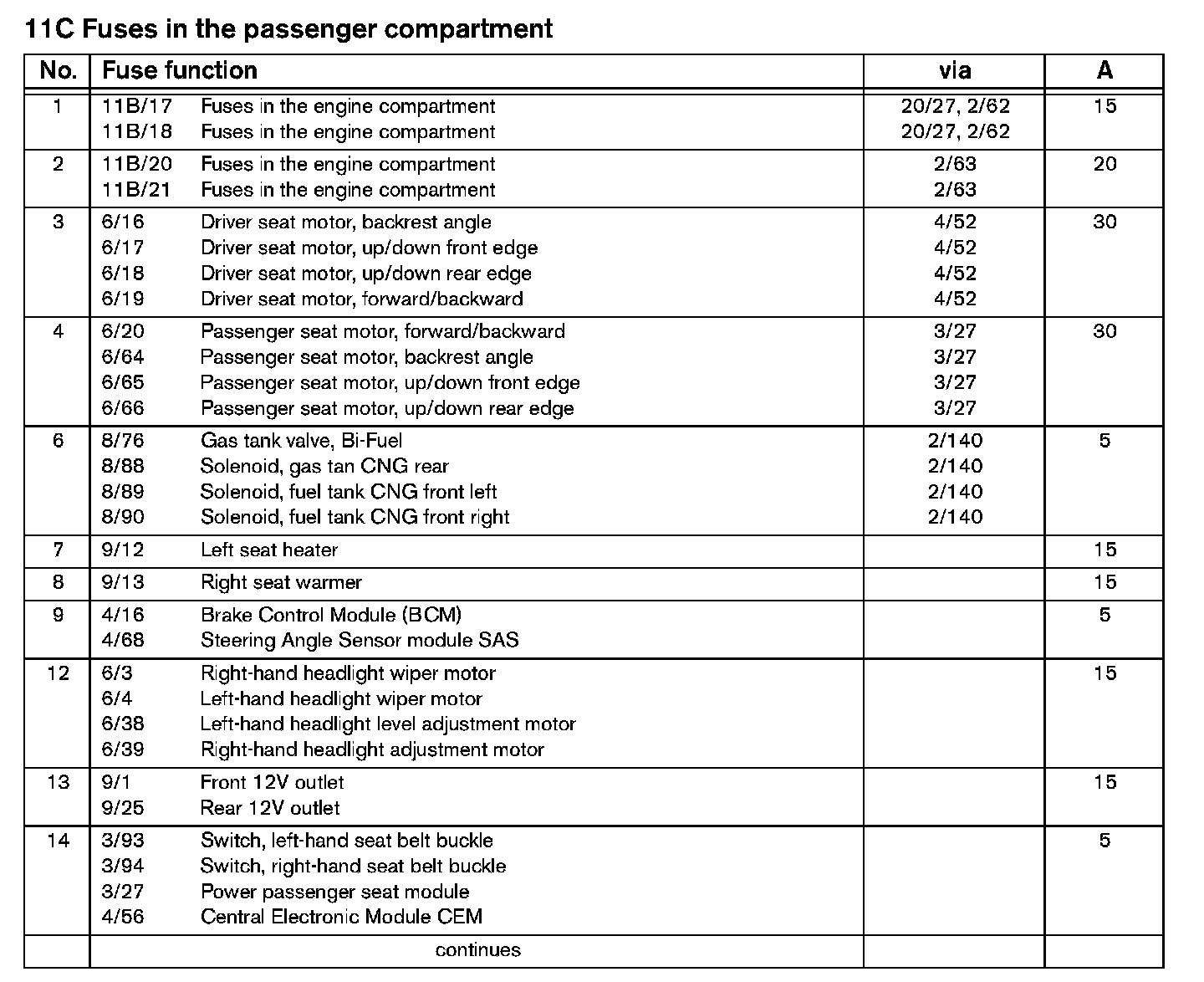

Fuses 11C/1-14:

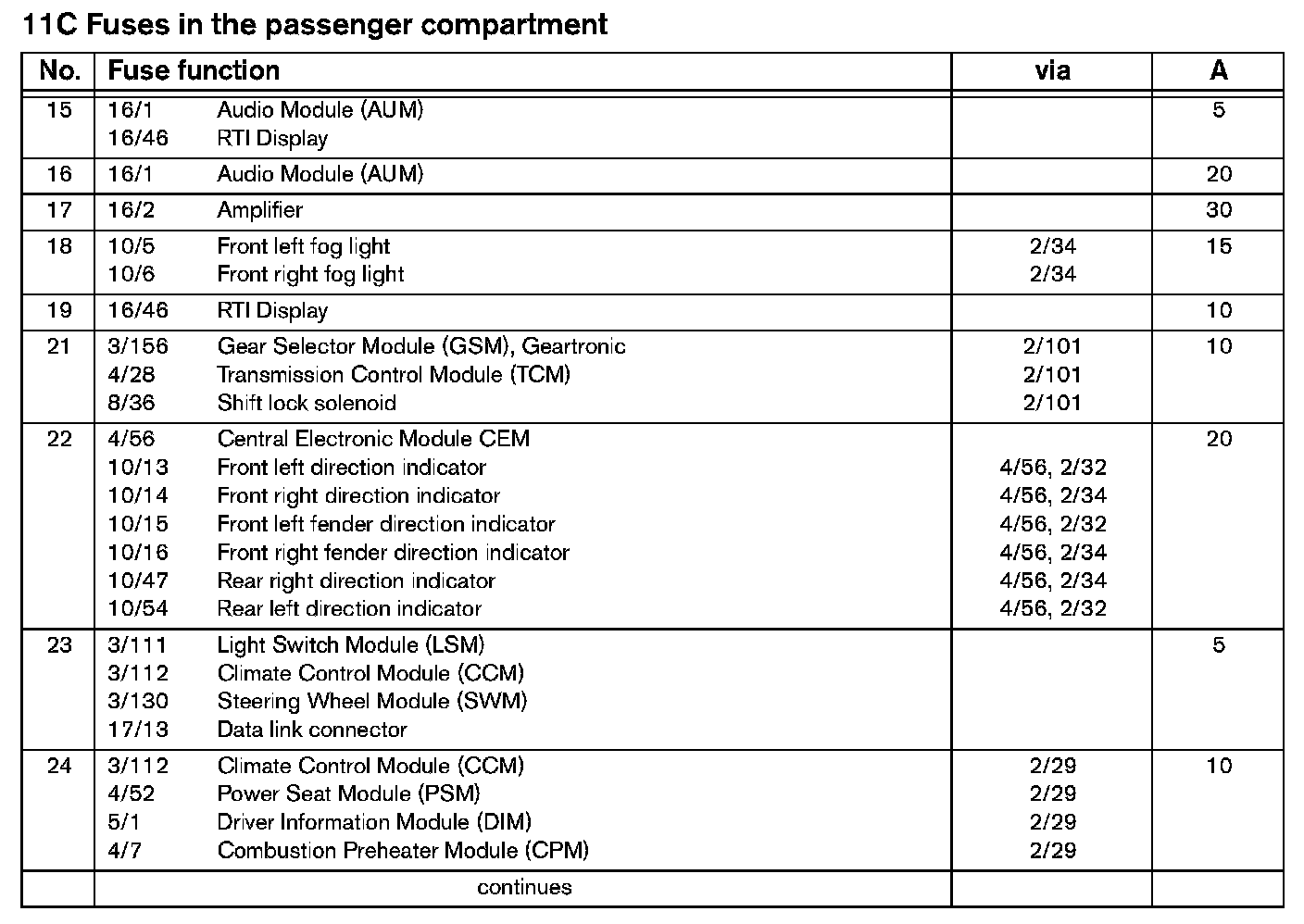

Fuses 11C/15-24:

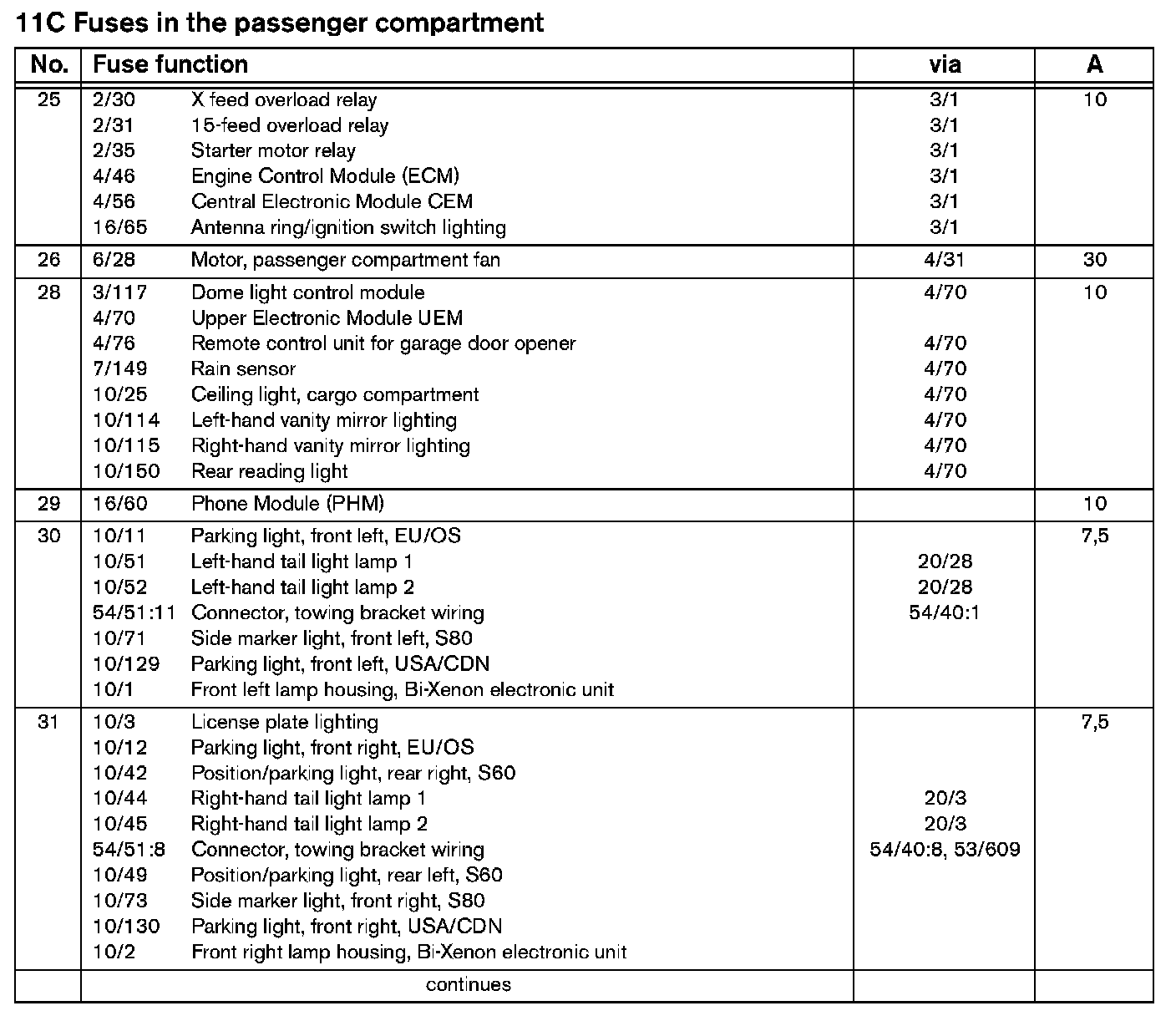

Fuses 11C/25-31:

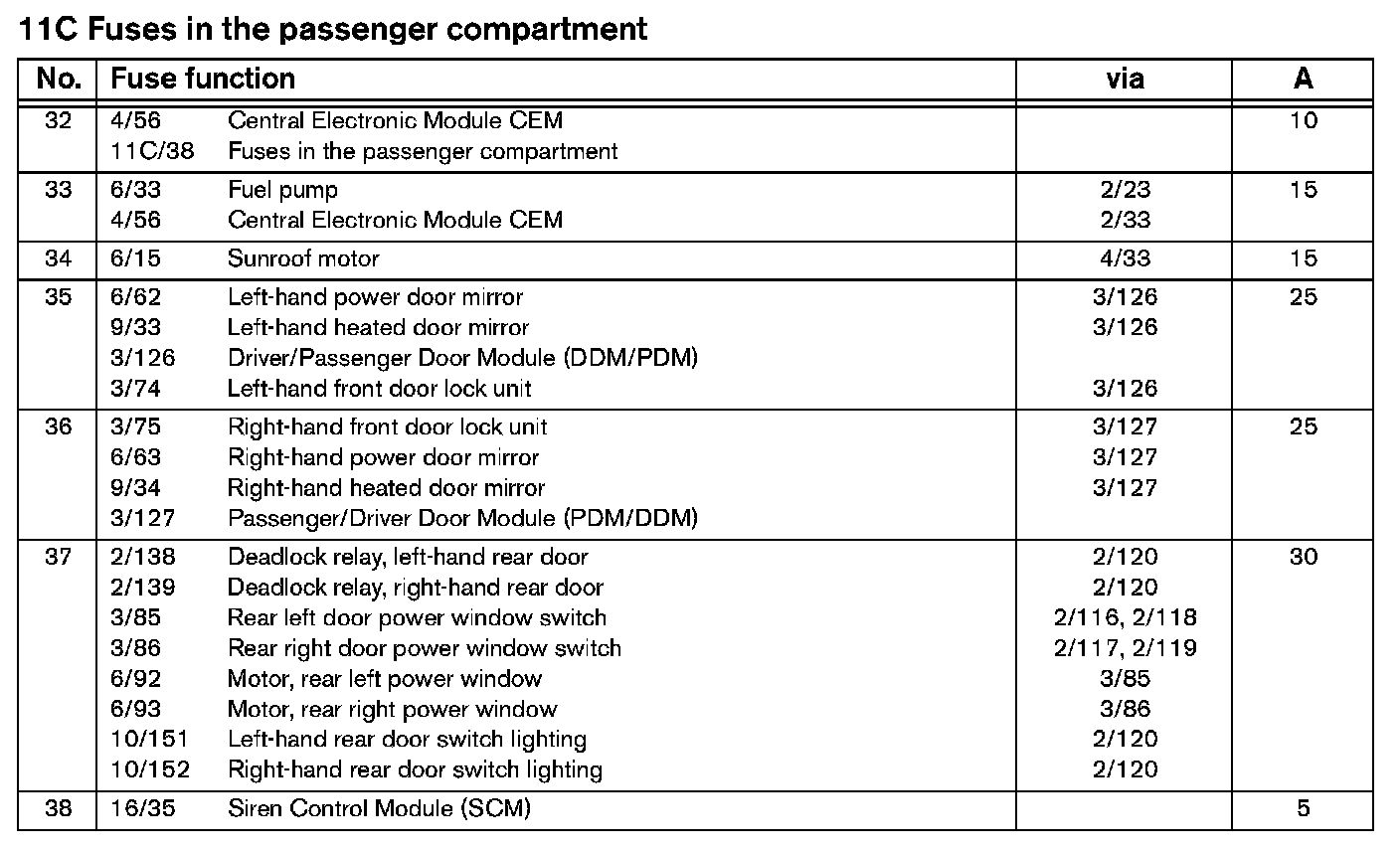

Fuses 11C/32-38:
