Home >> Volvo >> 2003 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

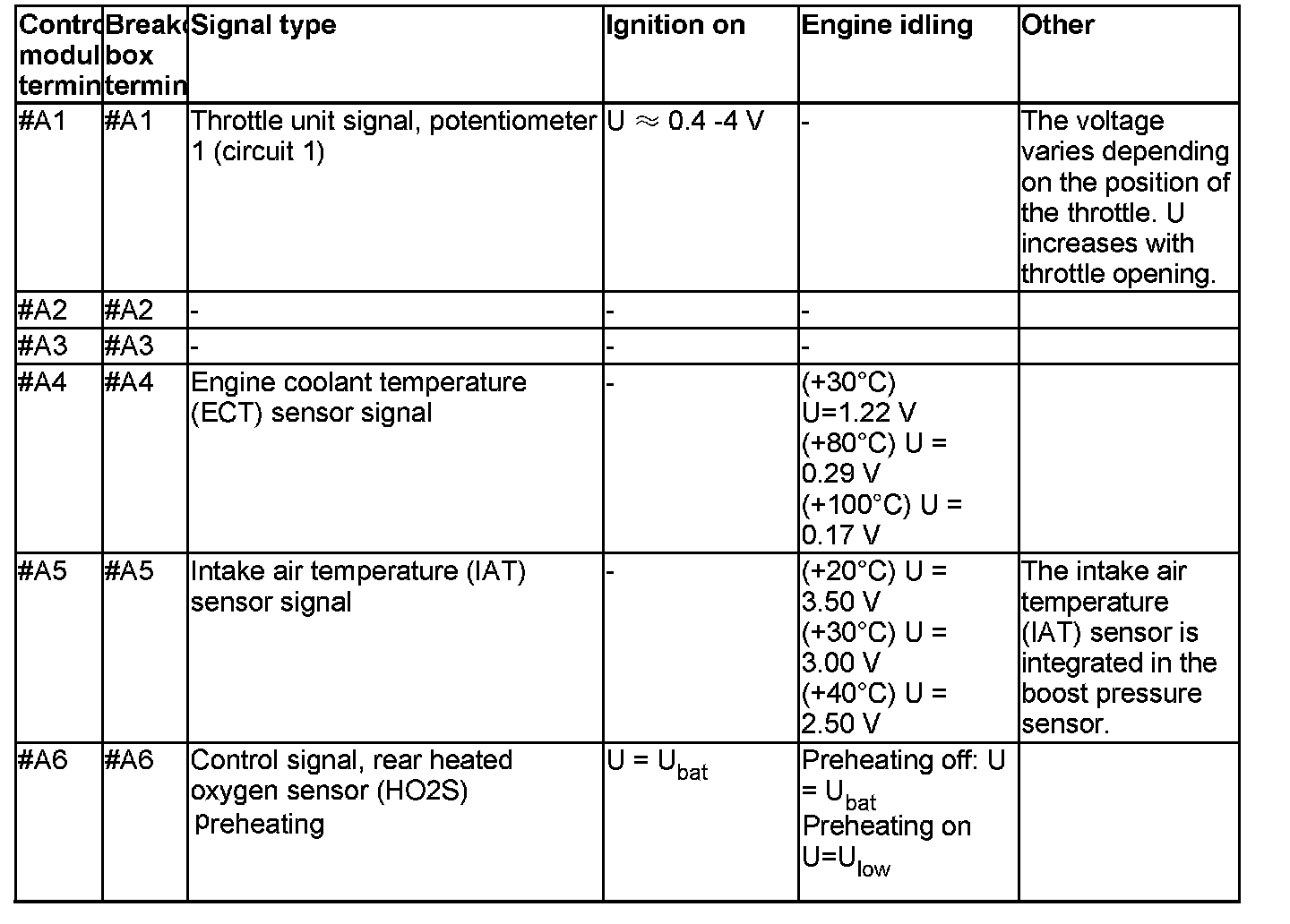

#A1 - #A6:

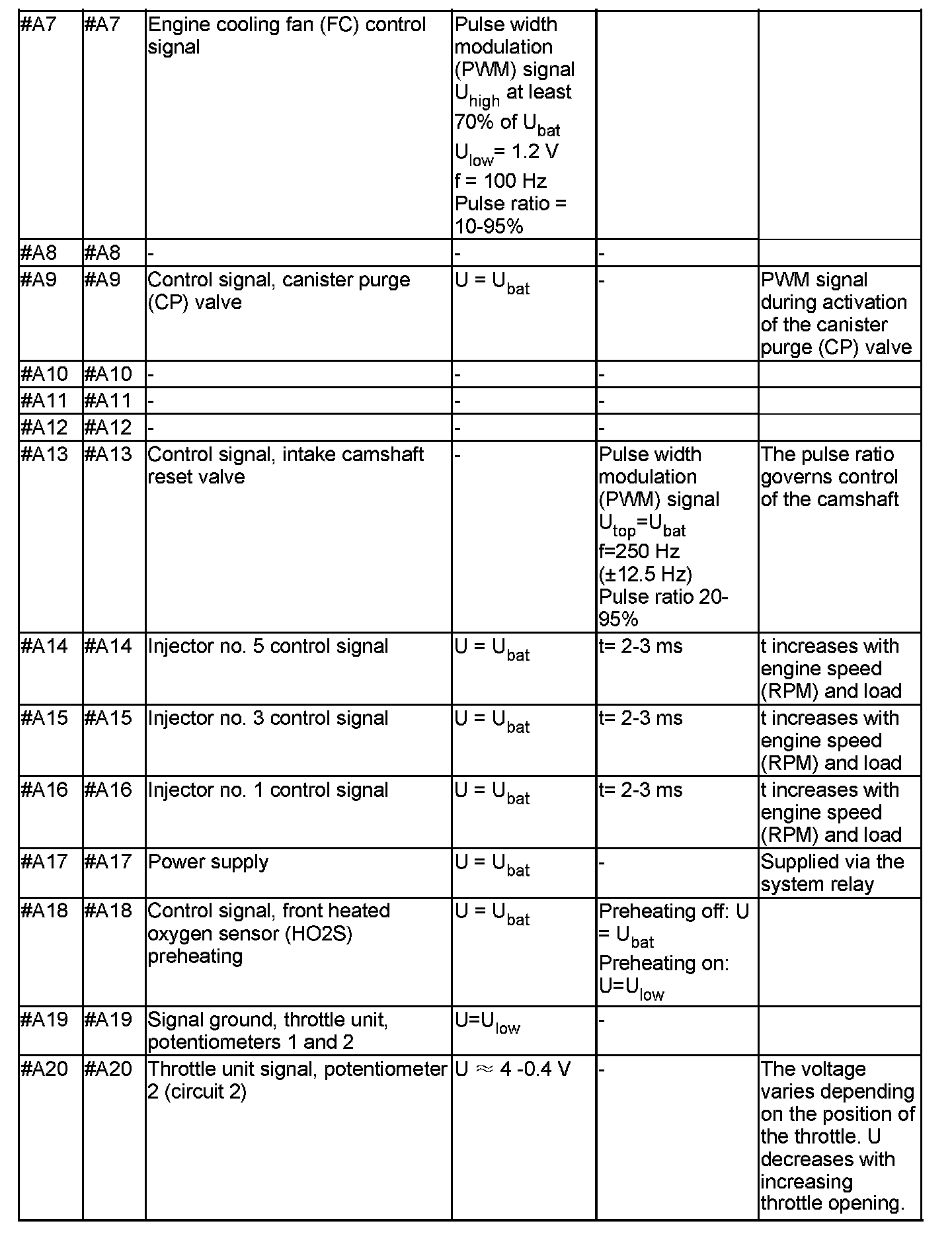

#A7 - #A20:





#A21 - #A35:

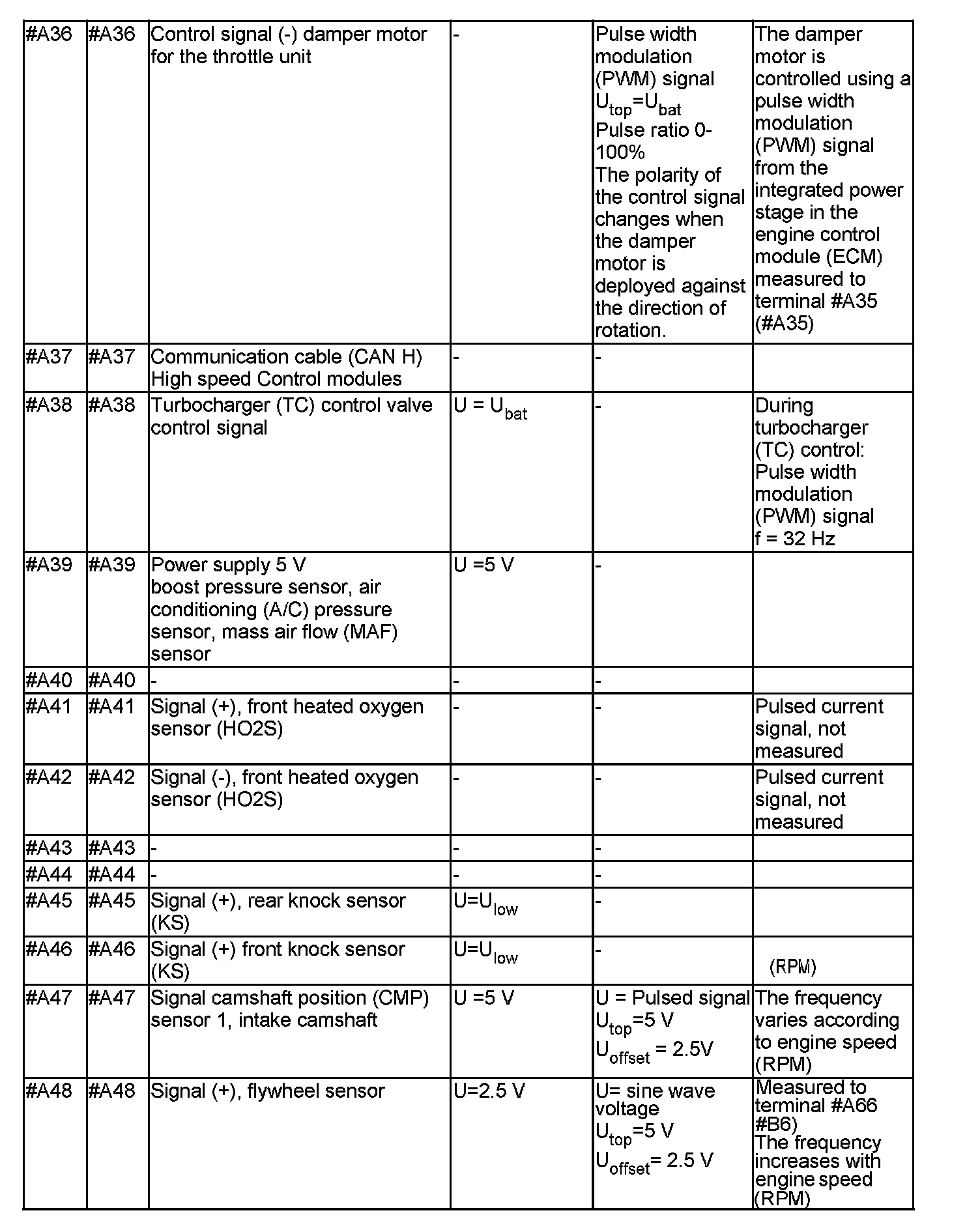

#A36 - #A48:

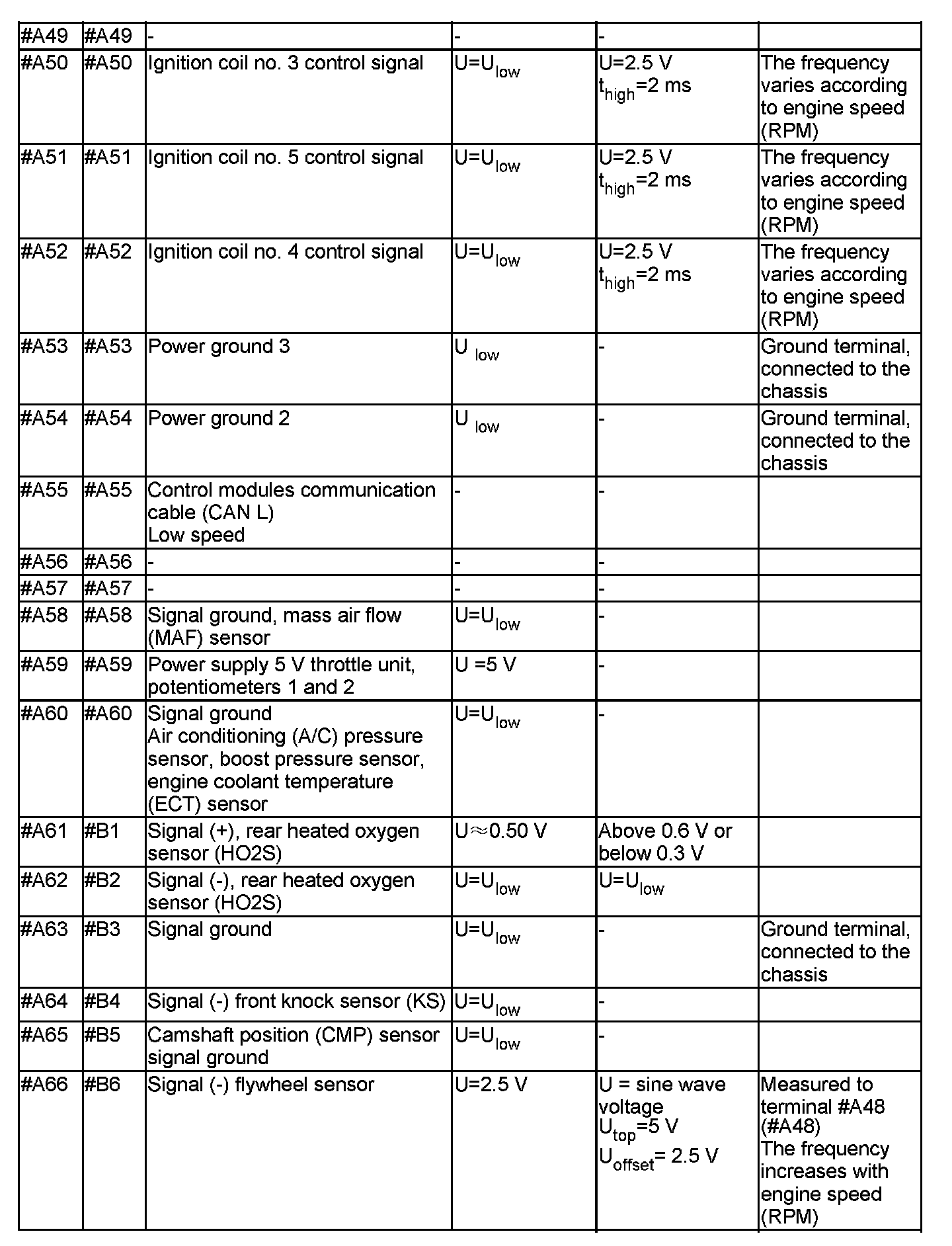

#A49 - #A66:





#A67 - #A70:

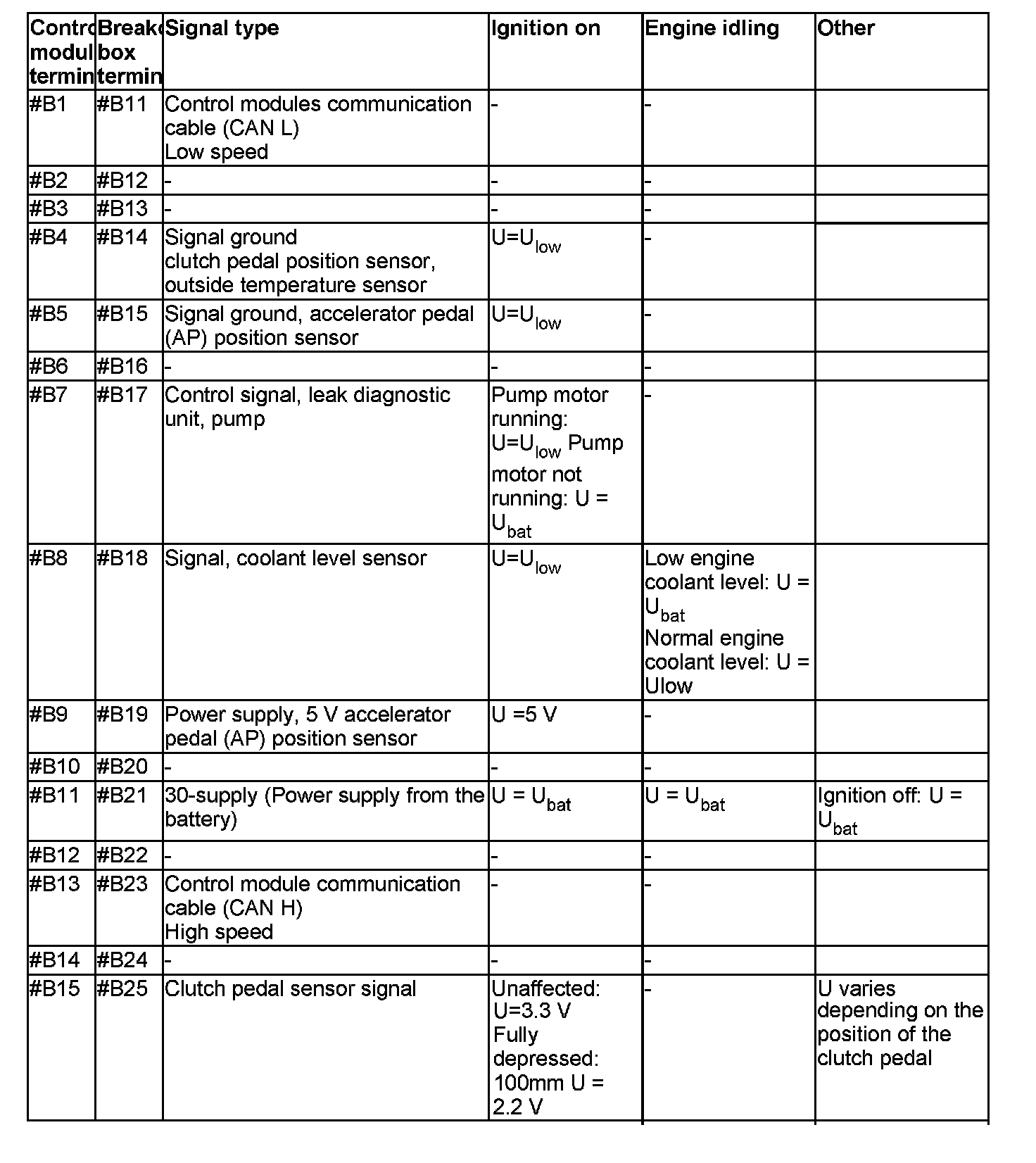

#B1 - #B15:

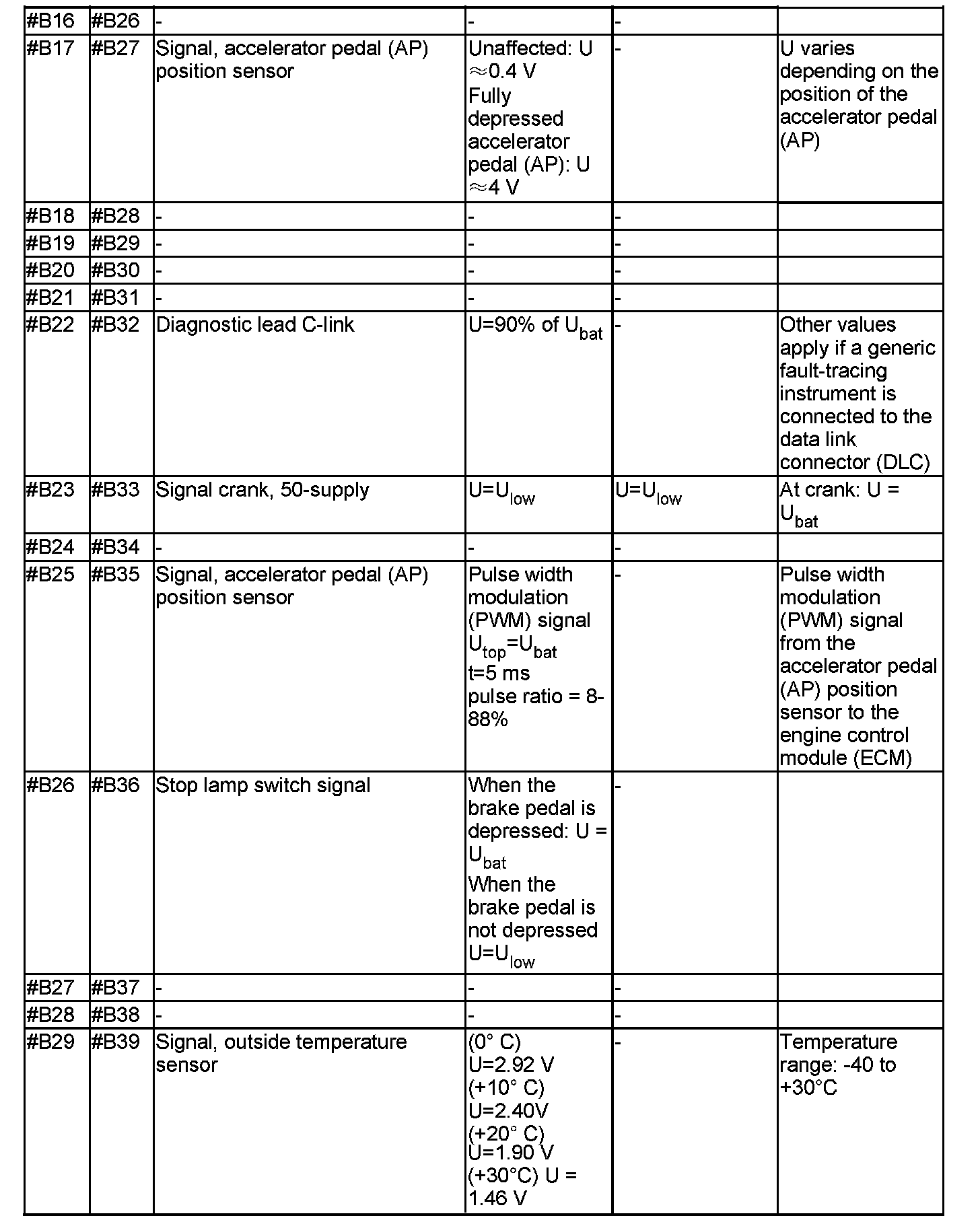

#B16 - #B29:

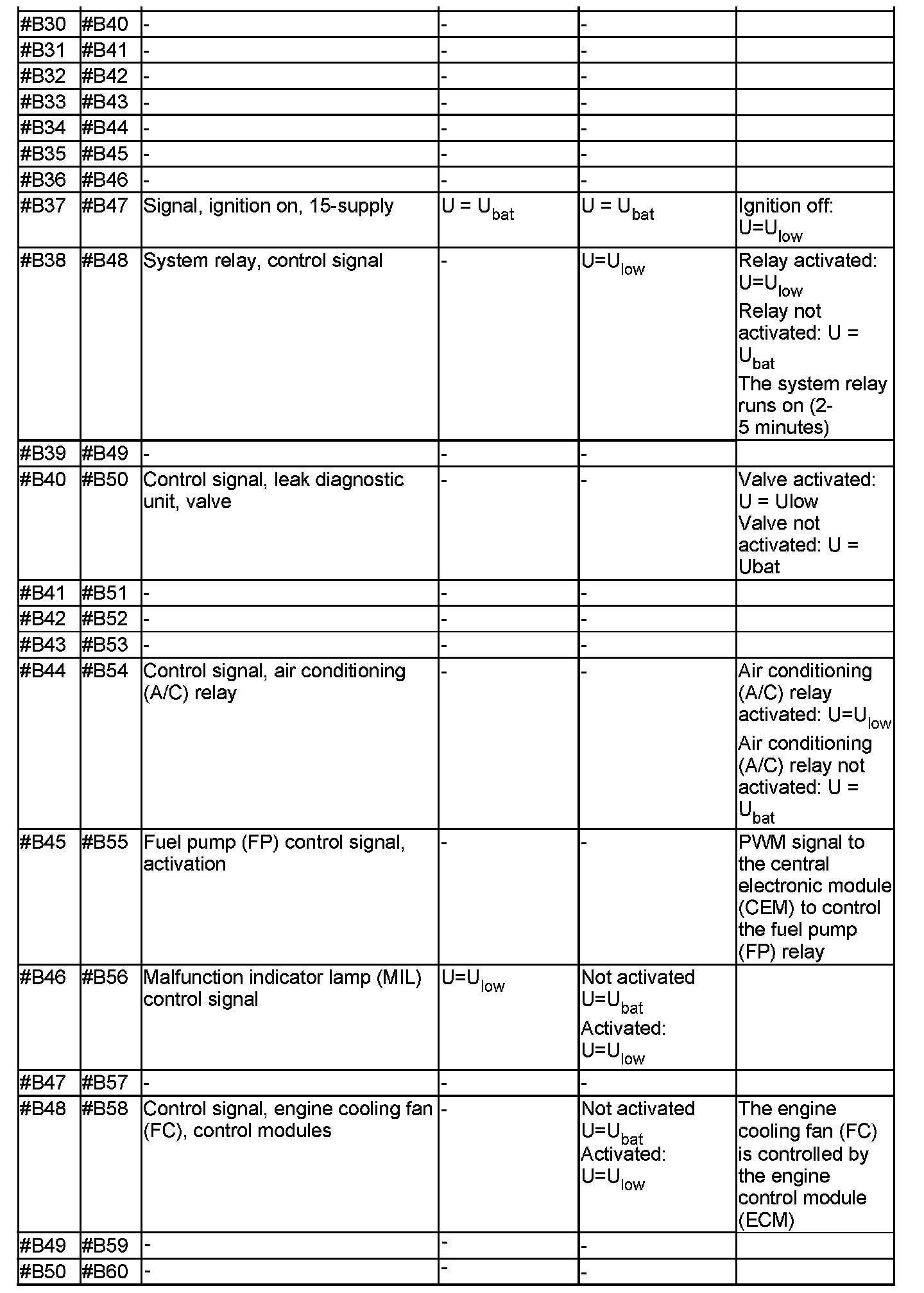

#B30 - #B50:
