DEM-0003

DTC DEM-0003





Condition

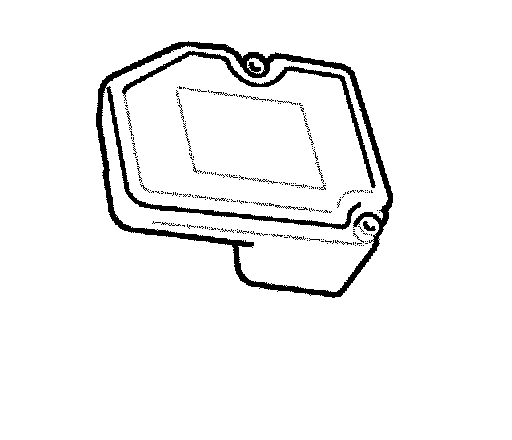

The Differential Electronic Module (DEM) checks its voltage supply by comparing the voltage between the Differential Electronic Module (DEM) and the Central Electronic Module (CEM). Diagnostic Trouble Code (DTC) DEM 003 is stored if the control module registers a difference in the power supply between the Central Electronic Module (CEM) and the Differential Electronic Module (DEM) which is greater than 2.5 Volts. Diagnostic Trouble Code (DTC) DEM 0003 can be diagnosed with the engine running and the engine speed (RPM) >500 rpm.

Substitute value
- Four wheel drive is blocked.

Possible source Signal too high:
- Short-circuit to supply voltage in the signal cable. Signal too low:
- Short-circuit to ground in the signal cable
- Open-circuit in the power supply.

Fault symptom[s]
- Four wheel drive is not functioning.
