Connector Views

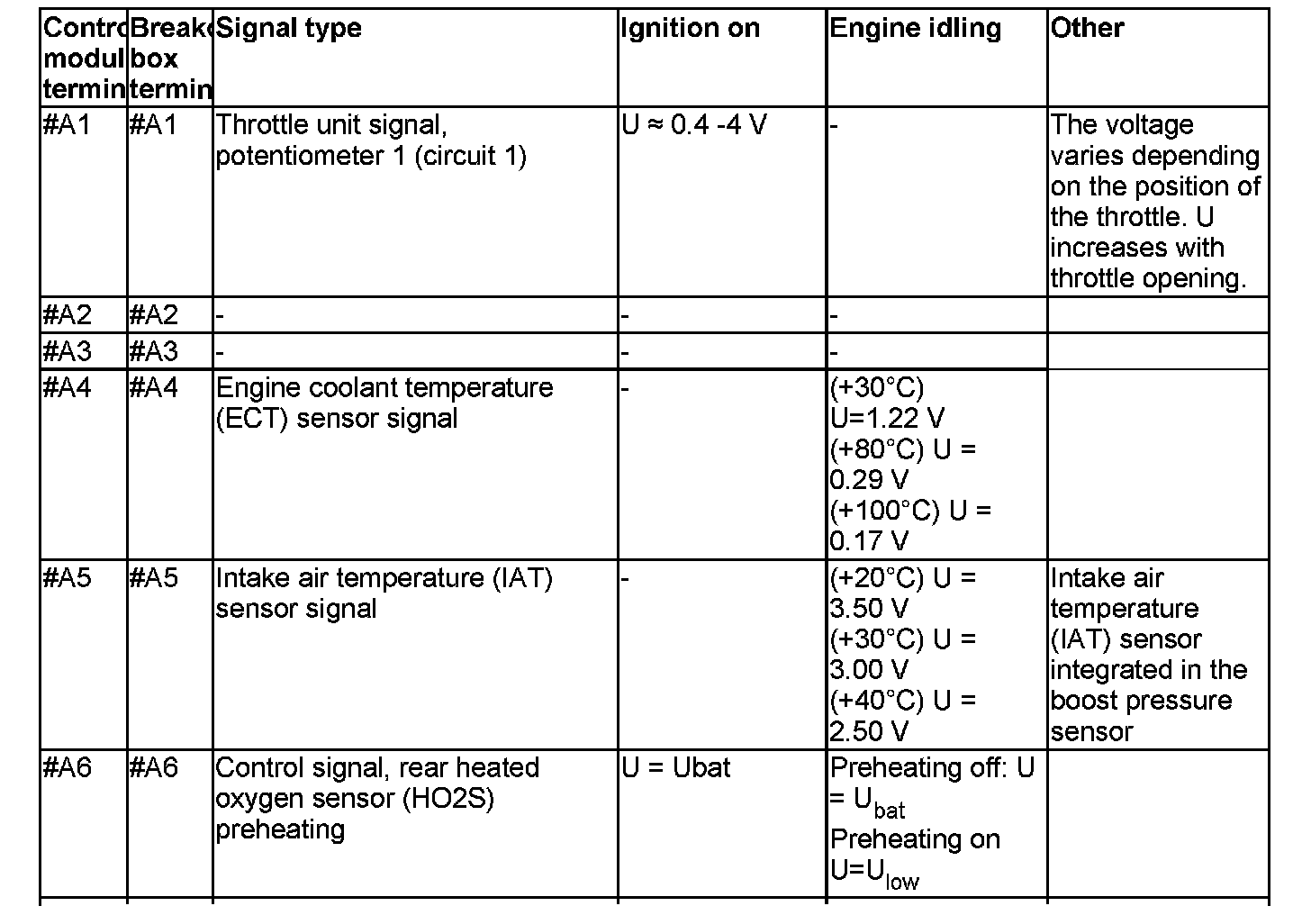

#A1 - #A6:

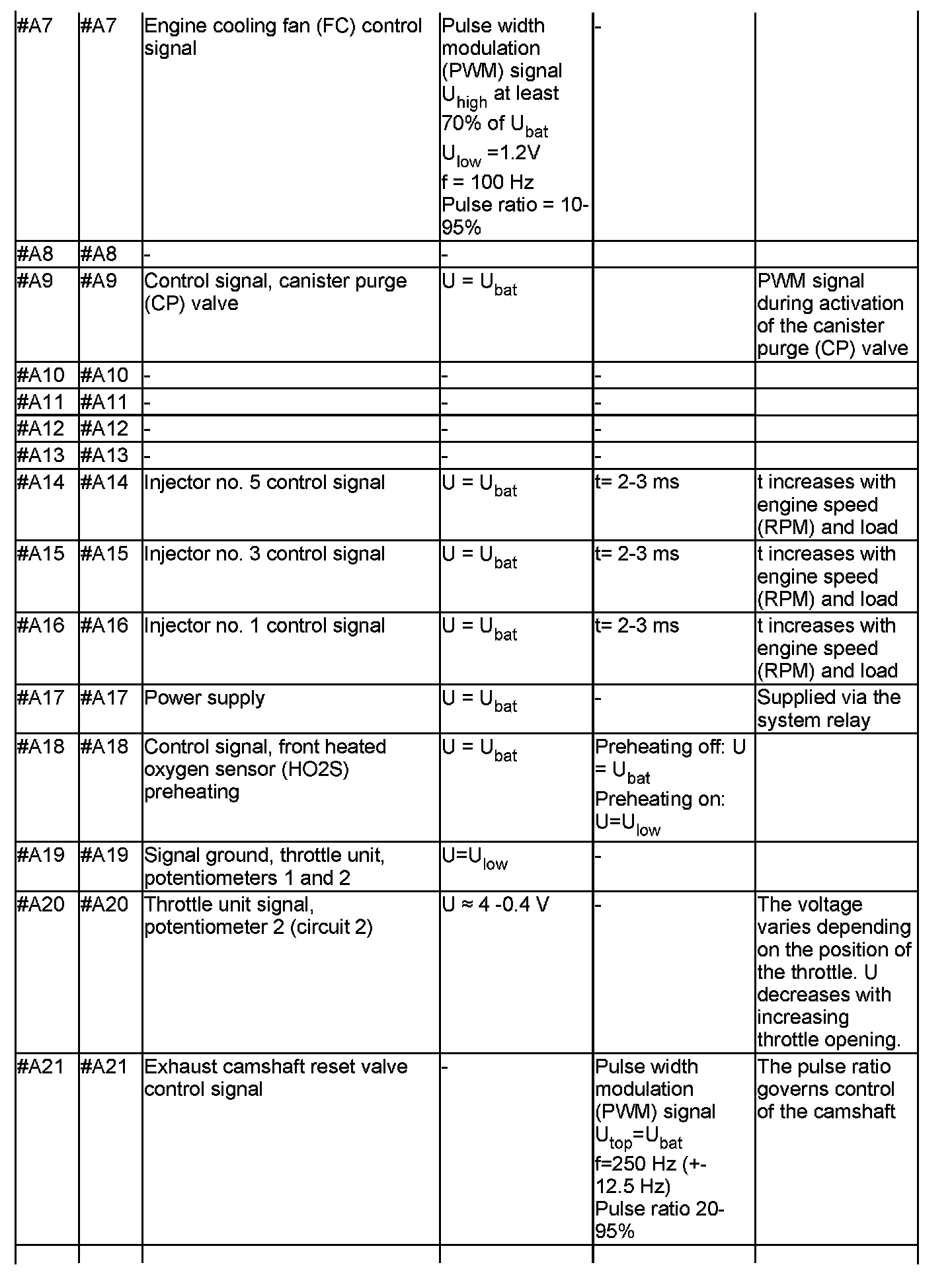

#A7 - #A21:

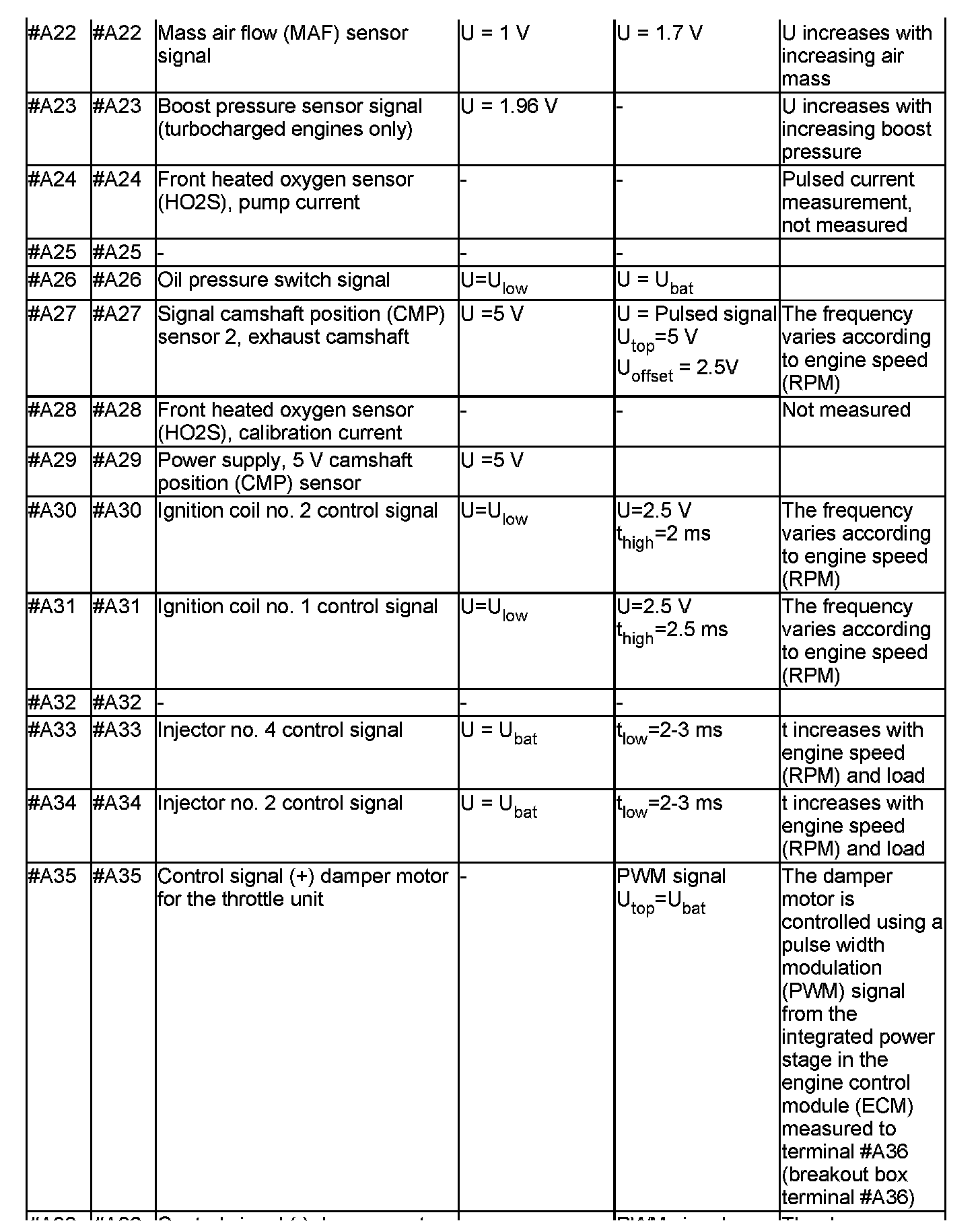

#A22 - #A35:

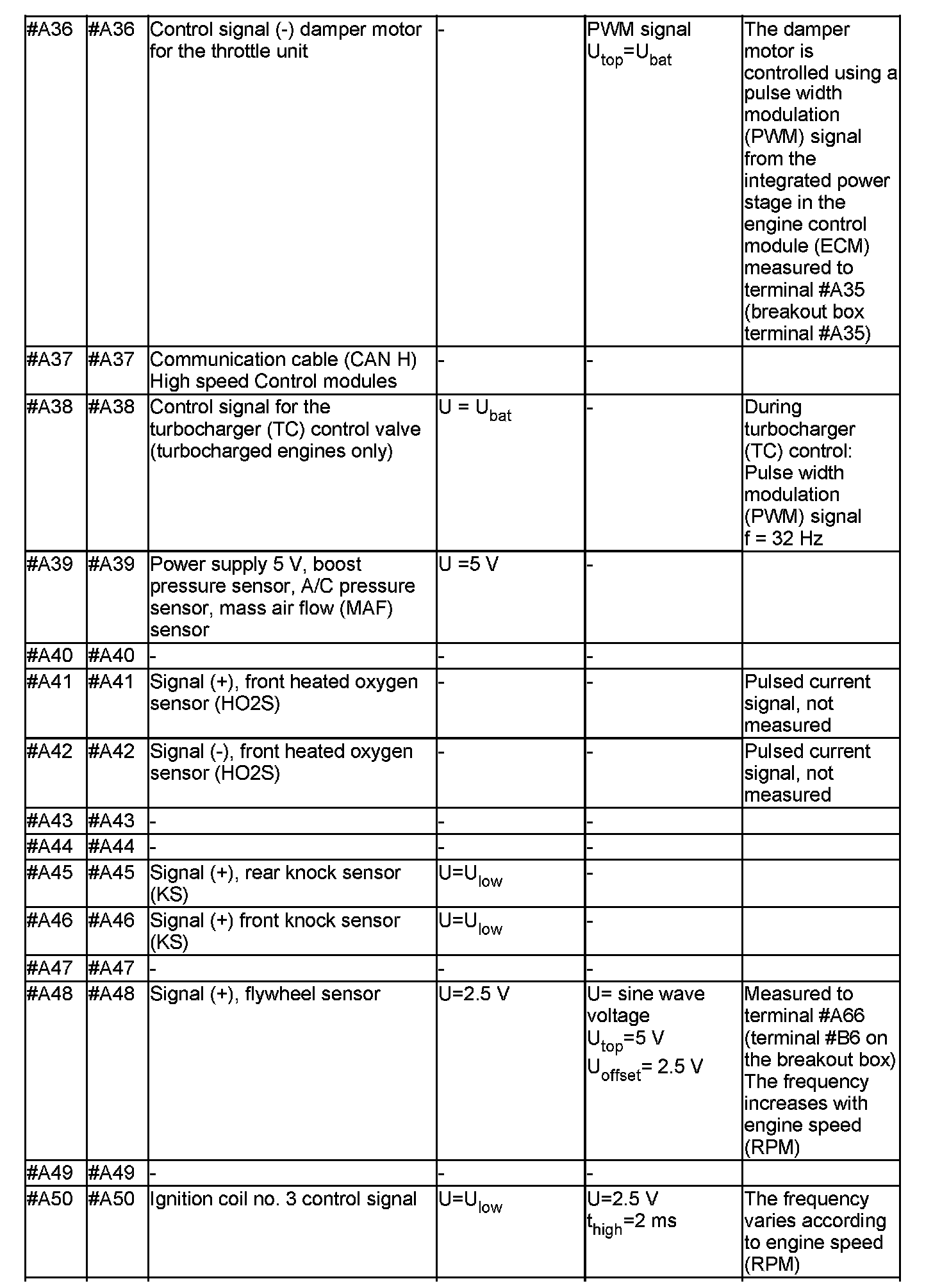

#A36 - #A50:

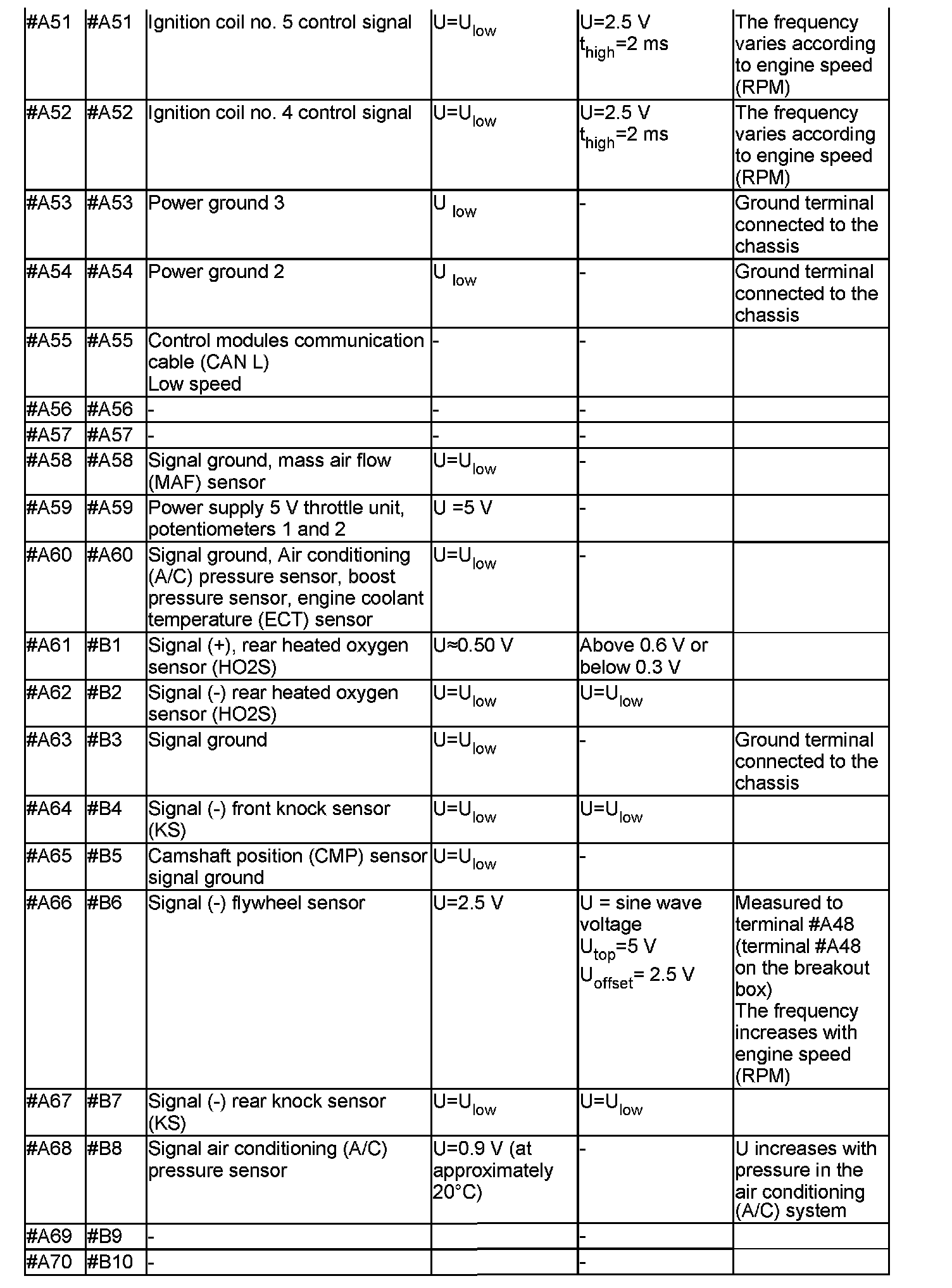

#A51 - #A70:

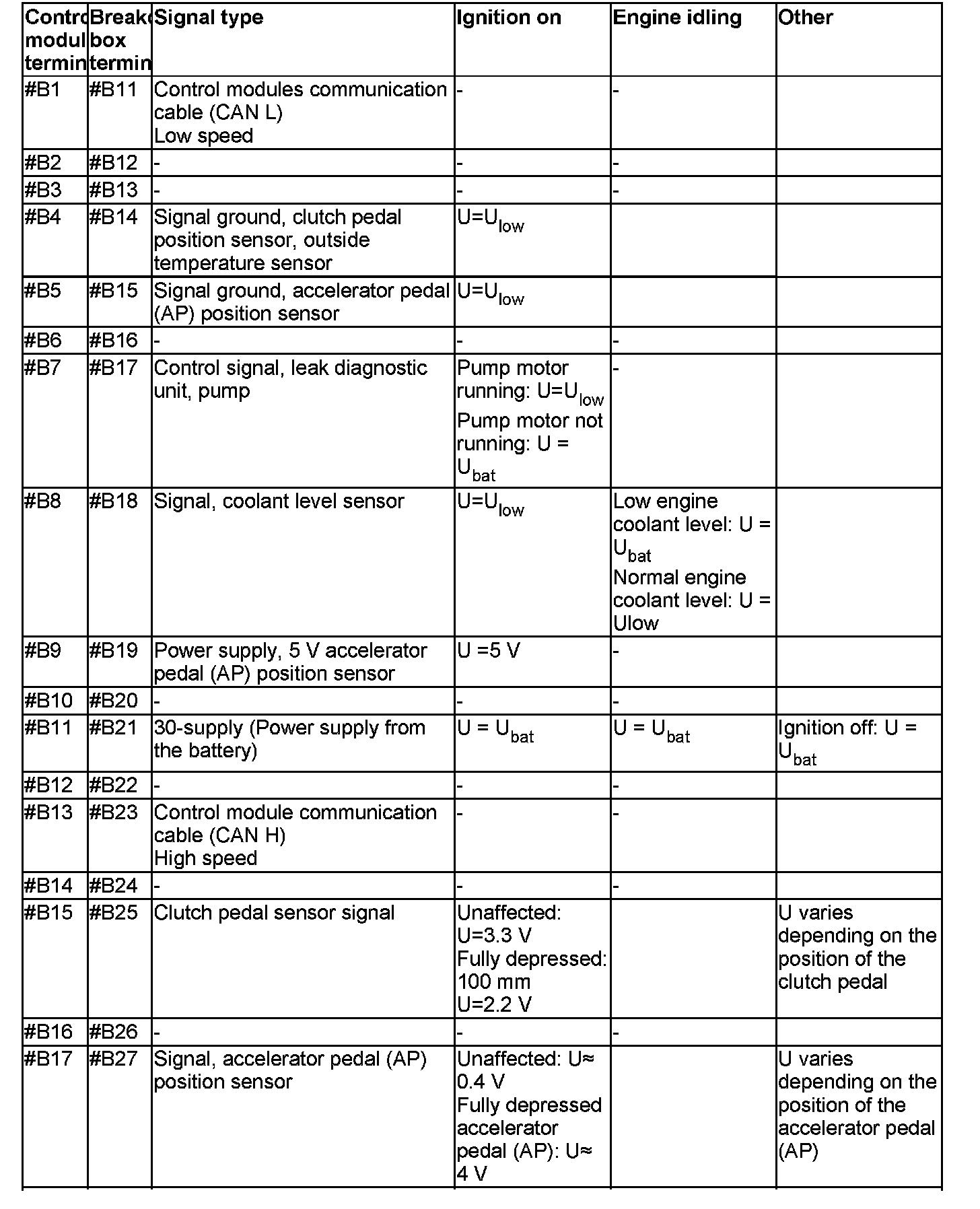

#B1 - #B17:

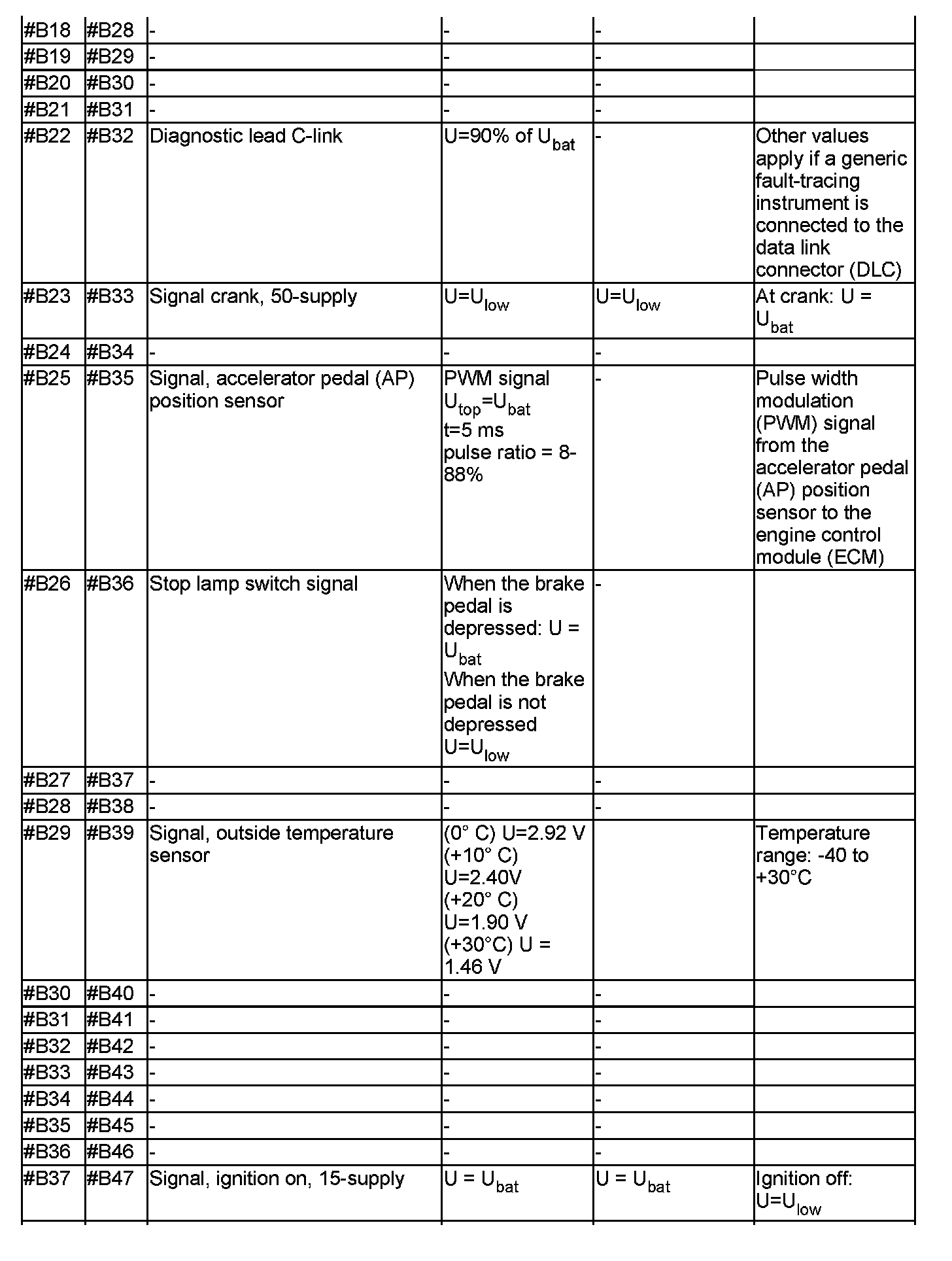

#B18 - #B37:

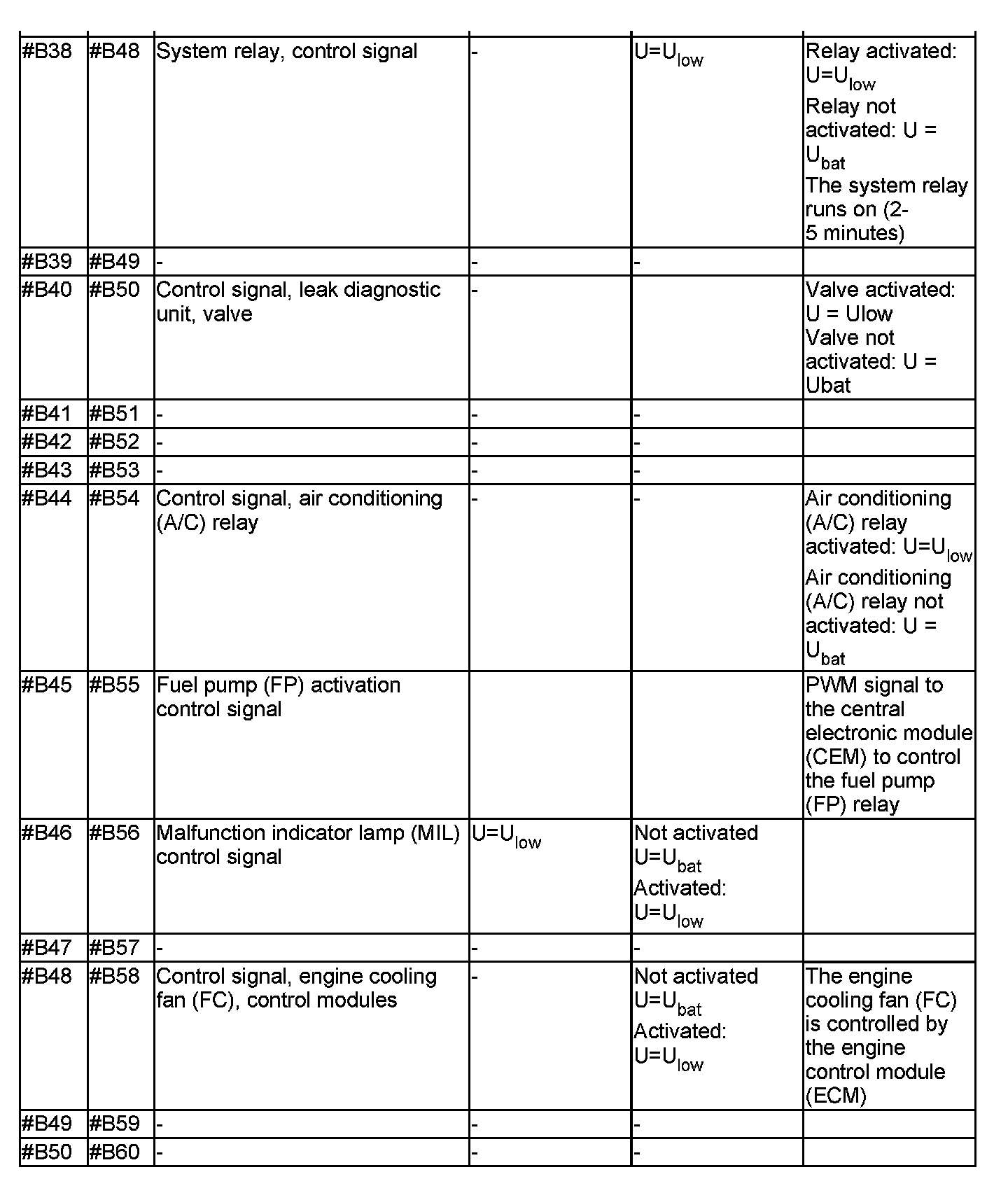

#B38 - #B50:
