High and Low Beam, Auxiliary Light Wiring



High and Low Beam, Auxiliary Light Wiring

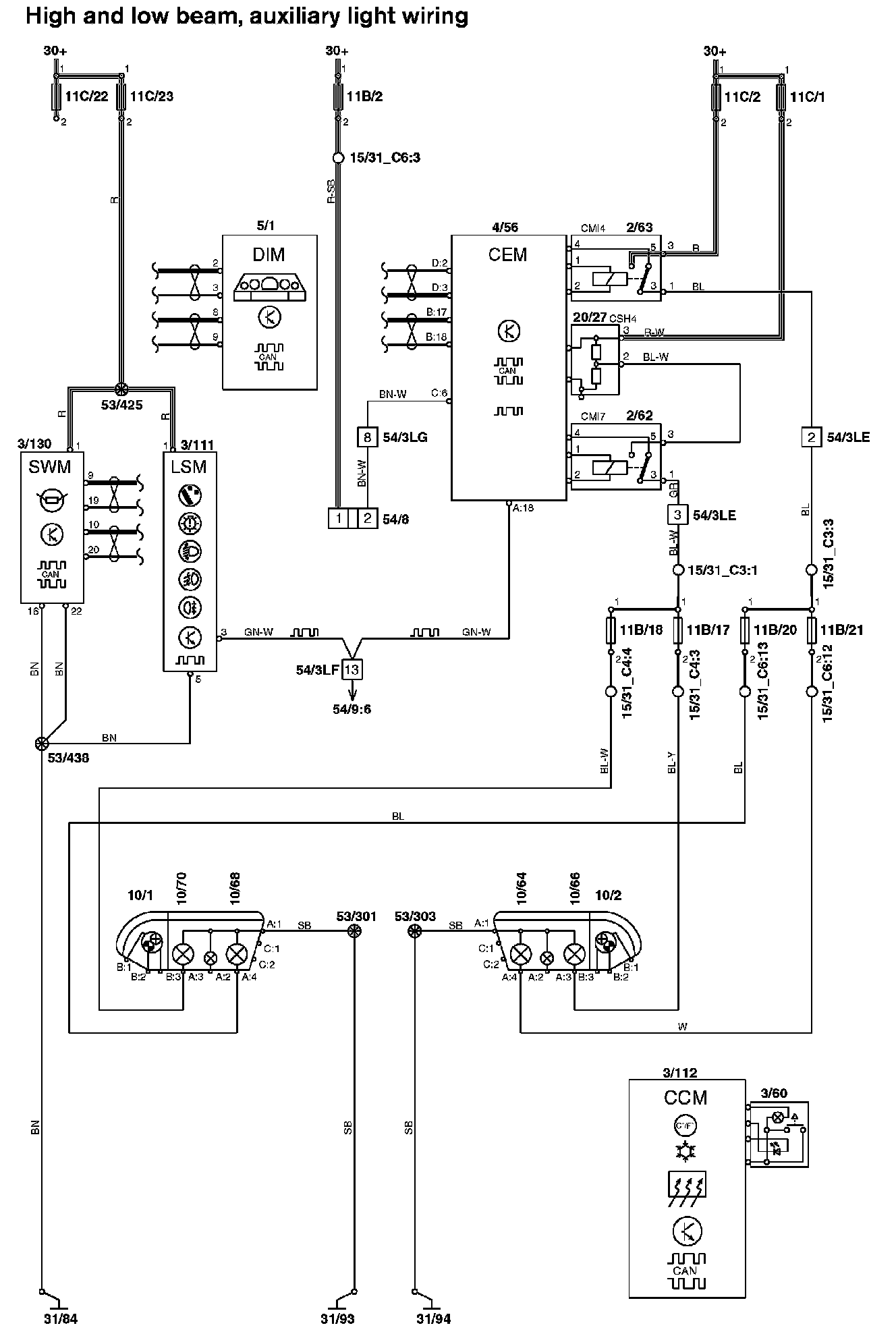

High And Low Beam, Auxiliary Light Wiring:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
