S60 2.4T L5-2.4L Turbo VIN 58 B5244T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
>>

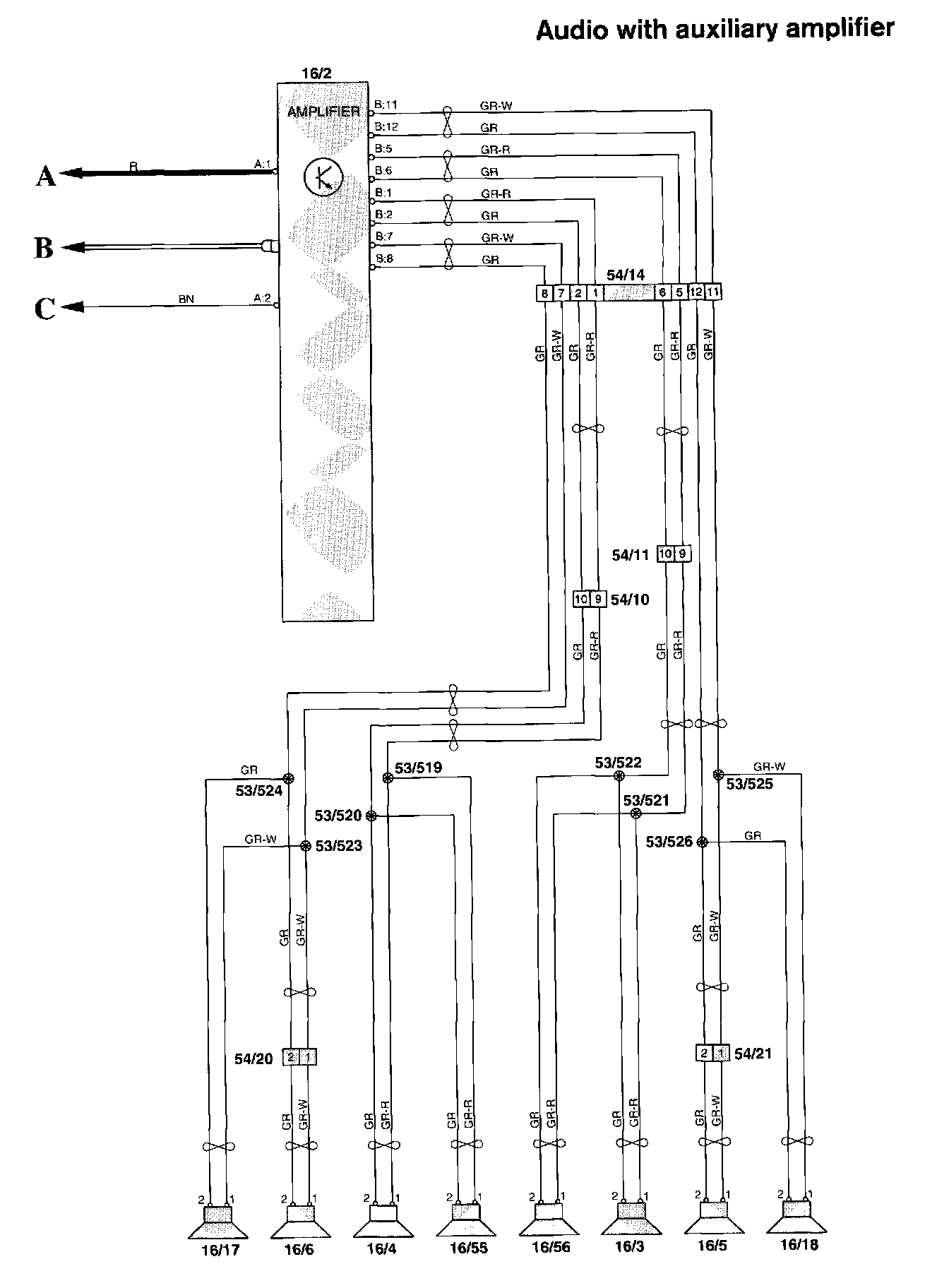

Audio With Auxiliary Amplifier
Audio With Auxiliary Amplifier
Audio With Auxiliary Amplifier Part - 1:
Audio With Auxiliary Amplifier Part - 2:
Diagram Legend,
Diagram Legend
