Engine: Application and ID

Engine manufacture number, engine serial number and type

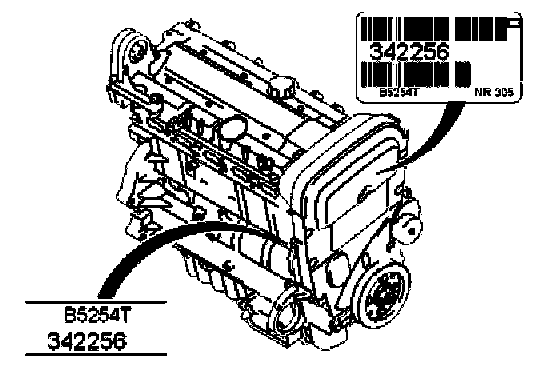

Component Illustration:

The engine serial number and type are stamped on the left side of the cylinder block at the top of the mounting for the water pump. There is also a decal on the timing cover with the engine type, manufacture number and serial number.
