TCM-0049

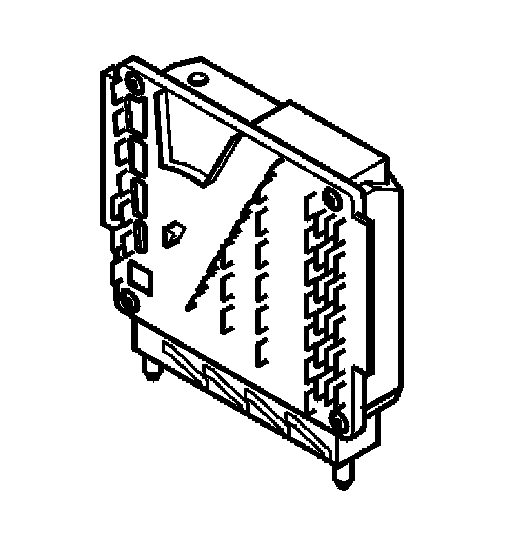

TCM-0049 Control Module
Internal Fault. Permanent Fault
Internal Fault. Intermittent Fault





Condition
Diagnostic Trouble Code (DTC) TCM-0049 is stored if the control module detects a fault in the control module EEPROM memory.

Substitute value
- The Transmission Control Module (TCM) "Emergency mode 1" program has been initiated.

Possible source
- Faulty software in control module.
- Internal fault in control module.

Fault symptom[s]
- No fault symptoms.
