BCM-0117

Condition

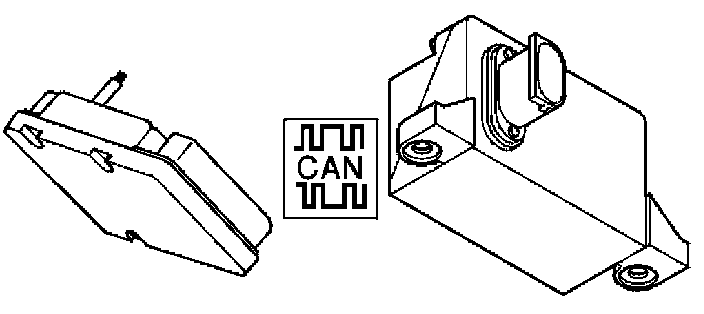

There are two different active yaw control sensors. One is for two wheel drive cars, the other is for four wheel drive cars. Diagnostic Trouble Code (DTC) BCM-0117 is stored if the Brake Control Module (BCM) registers that the installed active yaw control sensor is not correct for this car.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, see Brake system abbreviations.

Possible source
- An incorrect active yaw control sensor had been installed.

Fault symptom[s]
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- General yellow warning lamp lit (from model year 2003 inclusive)
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
