Connector Views




Rain sensor

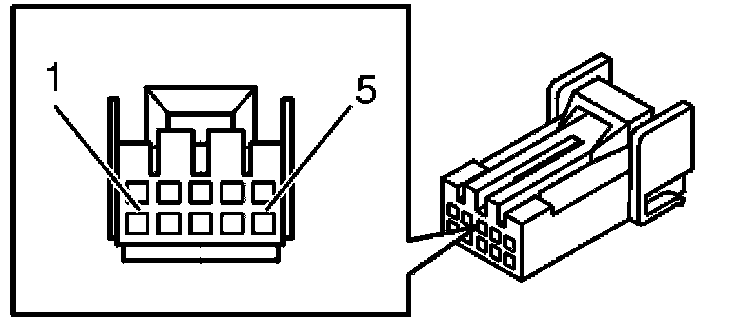

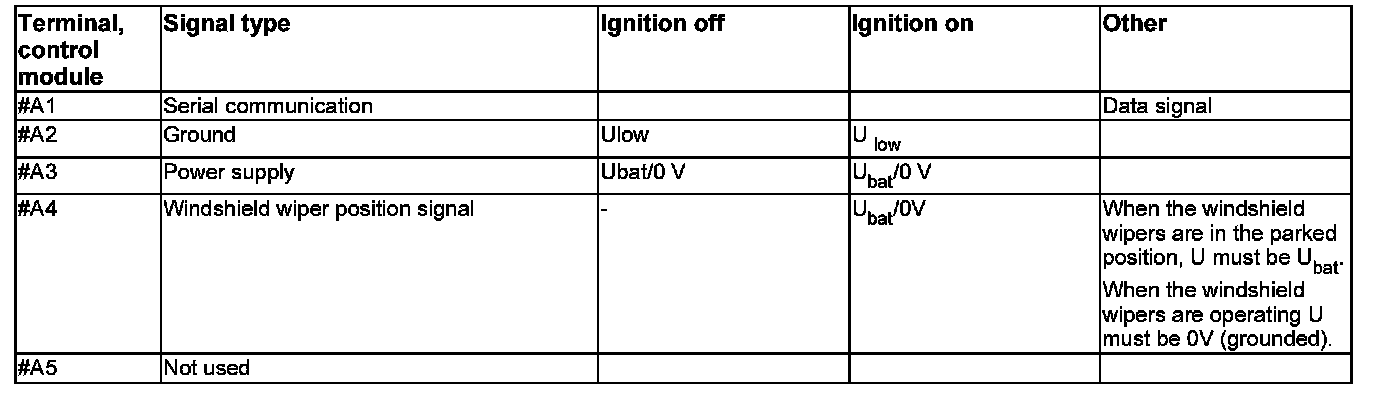

Connector A, terminals #A1-#A5

U = DC in volts (V).
Ubat = battery voltage in volts (V).
Ulow = Voltage close to 0 V.
