Front Door Lift Mechanism Assembly

Front door lift mechanism assembly

Removing the lift mechanism assembly from the front door




- Remove the run-off profile according to Run-off profile and bracket Run-Off Profile And Bracket.
- Remove the side window according to Window, front side door, replace Service and Repair.

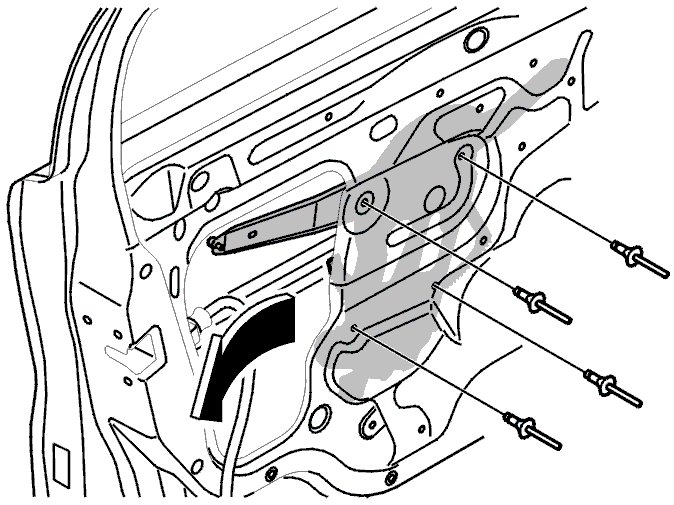

- Drill out the 4 blind rivets according to Removing rivet .
- Twist the lift mechanism assembly out through the opening for the door mirror.

Installing the lift mechanism assembly

Install:
In reverse order.
