Electrical Accessory Panel: Locations

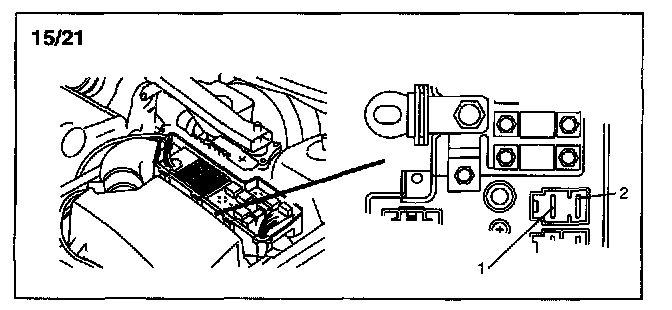

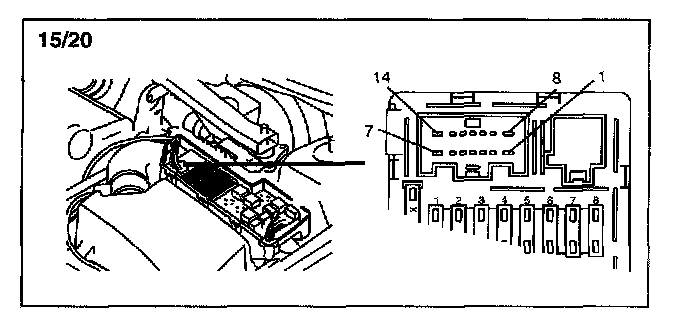

15/20 Distribution Rails:






15/20 Distribution Rails:

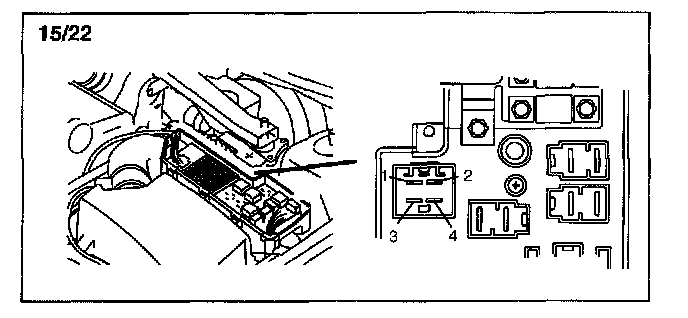

15/22 Distribution Rails:

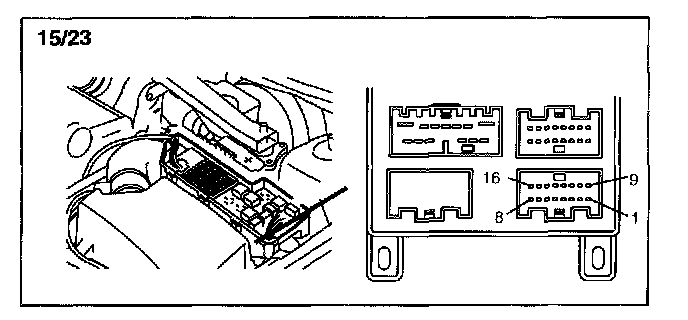

15/23 Distribution Rails:

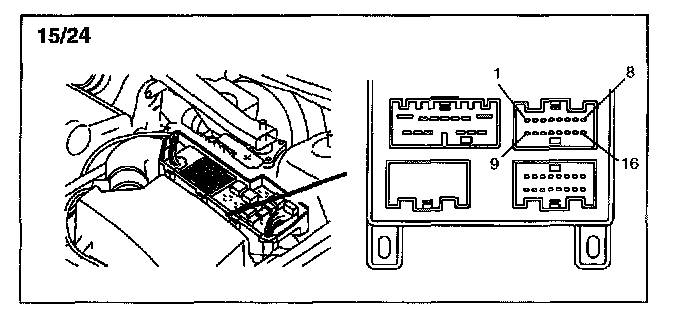

15/24 Distribution Rails:

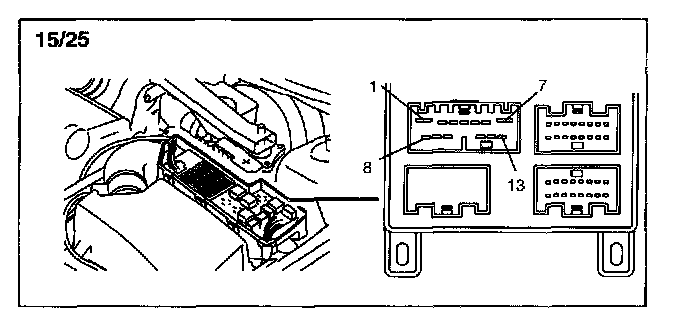

15/25 Distribution Rails:

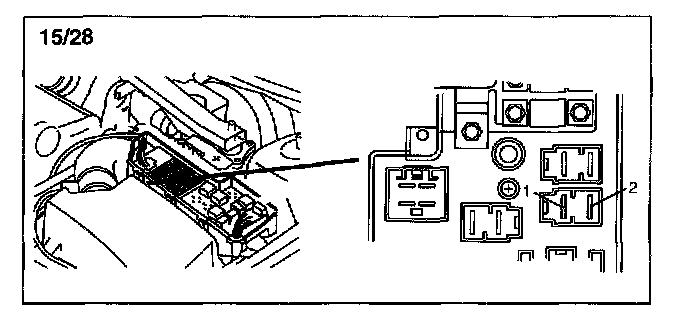

15/28 Distribution Rails:

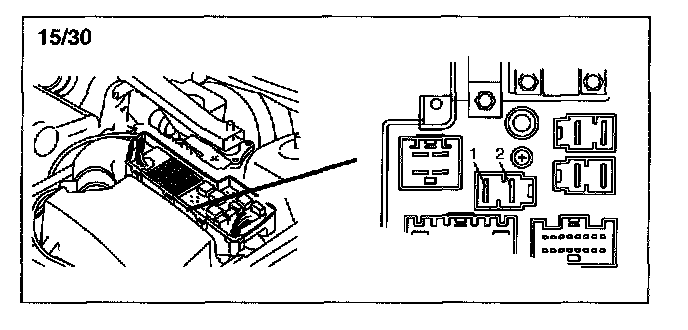

15/30 Distribution Rails:
