Cigarette Lighter / Electrical Socket, Rear, Replacing

Cigarette lighter / electrical socket, rear, replacing

Removal

Cigarette lighter and electrical socket
- Ignition off.

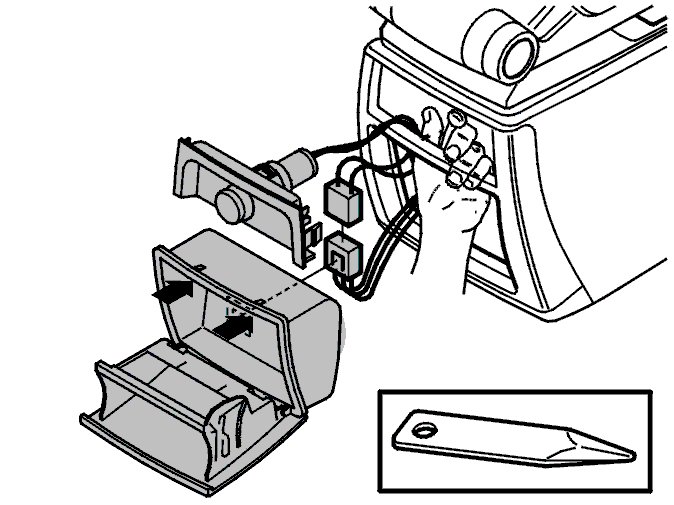

- Remove the rear ashtray by pressing it downwards
- Press the catches inwards. Remove the panel for the ashtray.




- Disconnect the connector from the ashtray panel.
Note how the cable is routed

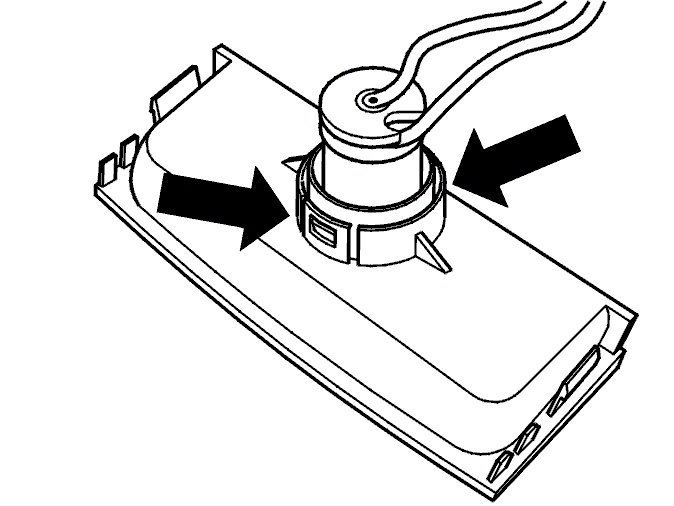

- Press out the panel with the lighter. Press it inwards from the back.

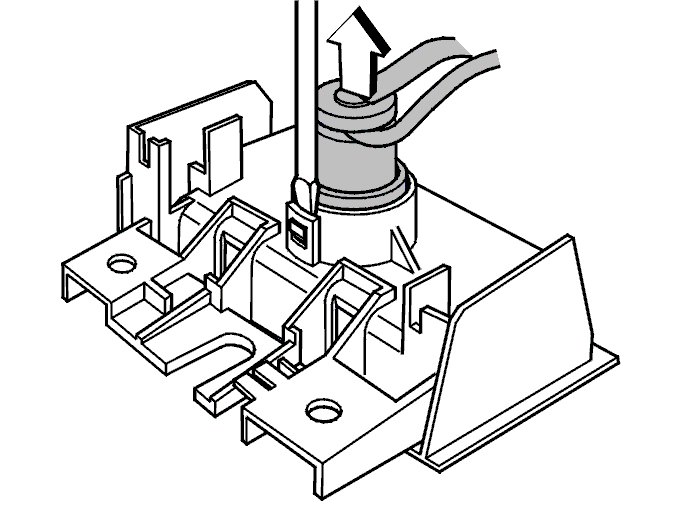

- Tension the catch (see the illustration) using a small screwdriver. Press out the lighter sleeve so that the locking releases. Maintain the pressure so that the lighter sleeve does not jump back in.
- Tension the other catch. Press out the lighter sleeve.

Installation

Cigarette lighter and electrical socket
In reverse order.
