Signal Specification, Brake Control Module (BCM) With STC/TRACS

Signal specification, Brake Control Module (BCM) with STC (stability and traction control) / TRACS (traction control system)

All values given are between the relevant terminal in column 1 and terminal # A16 or # A47 (ground), unless otherwise indicated in brackets.
Terminals 6, 8-10, 12-14, 17-31, 35, 38-41 and 44 are not used.

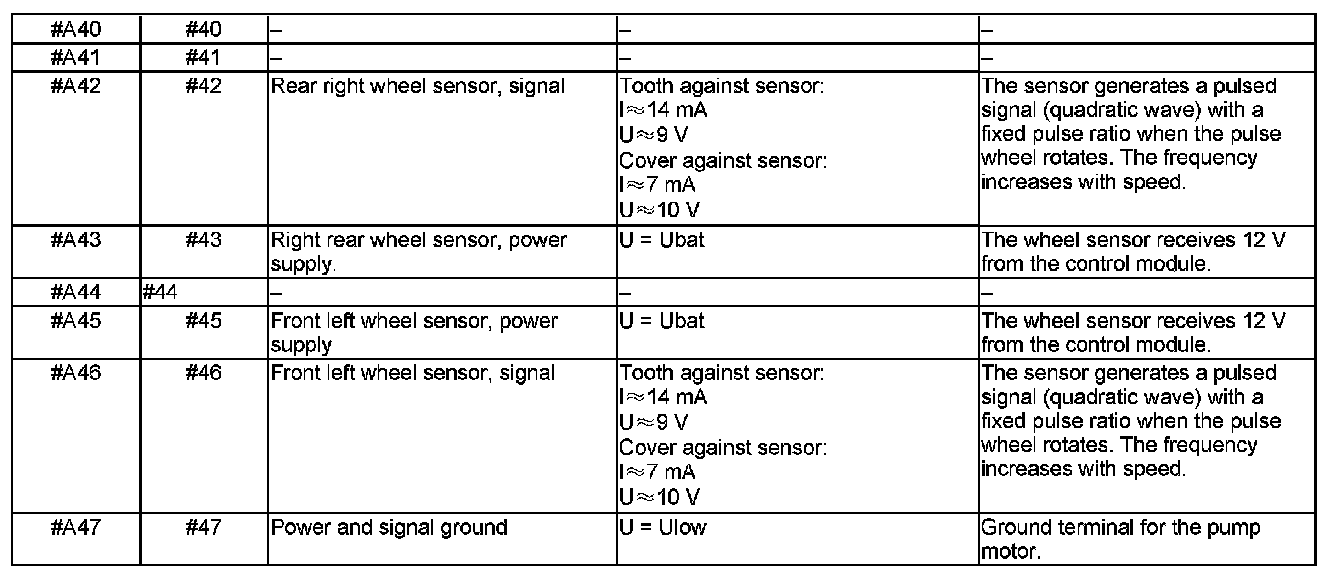

Part 1 Of 2:

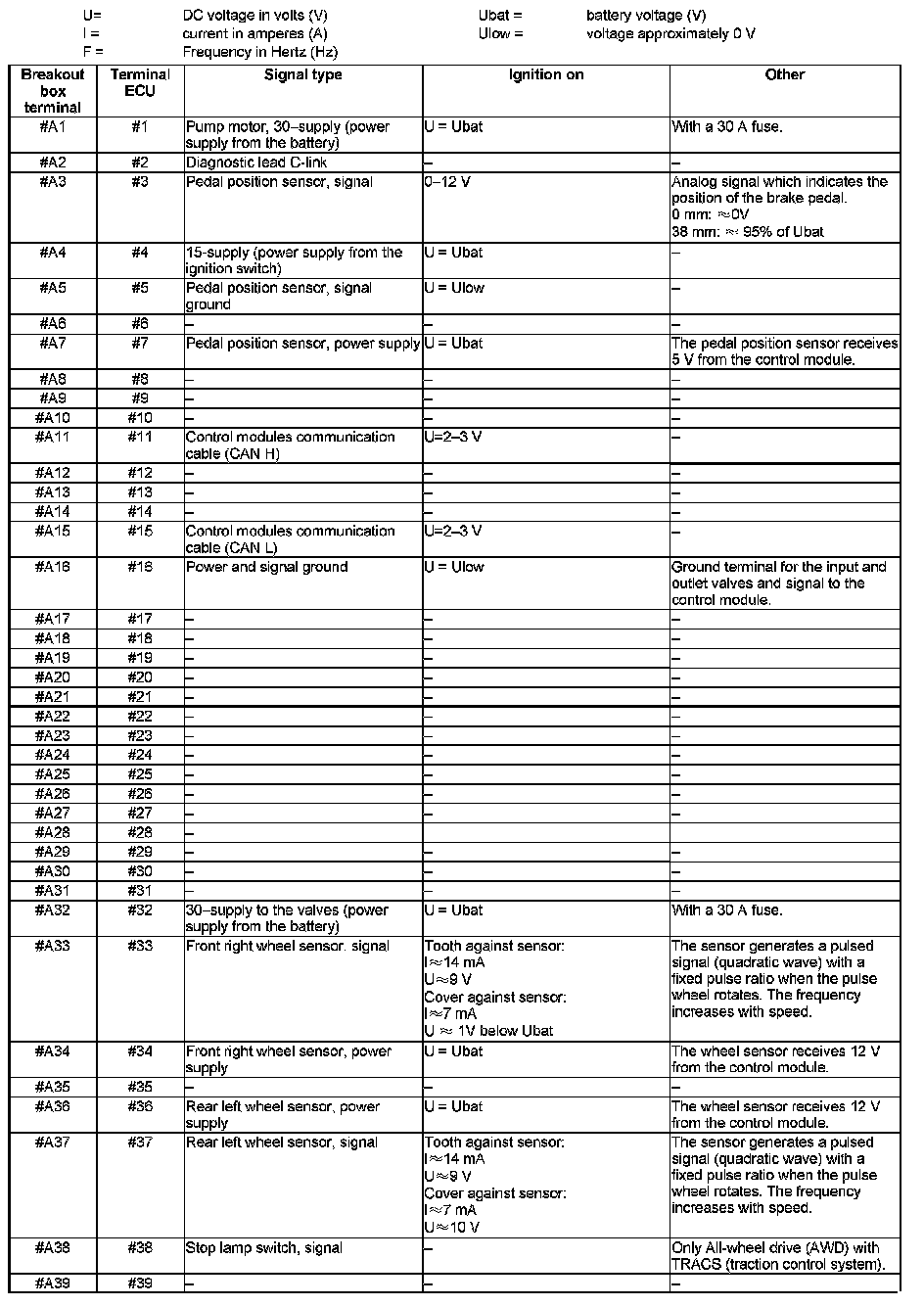

Part 2 Of 2:

Note! It is important that the breakout box is connected and that the ground terminals have been checked before readings are taken.
