Signal Specification, Brake Control Module (BCM) With DSTC

Signal specification, Brake Control Module (BCM) with DSTC (dynamic stability and traction control)

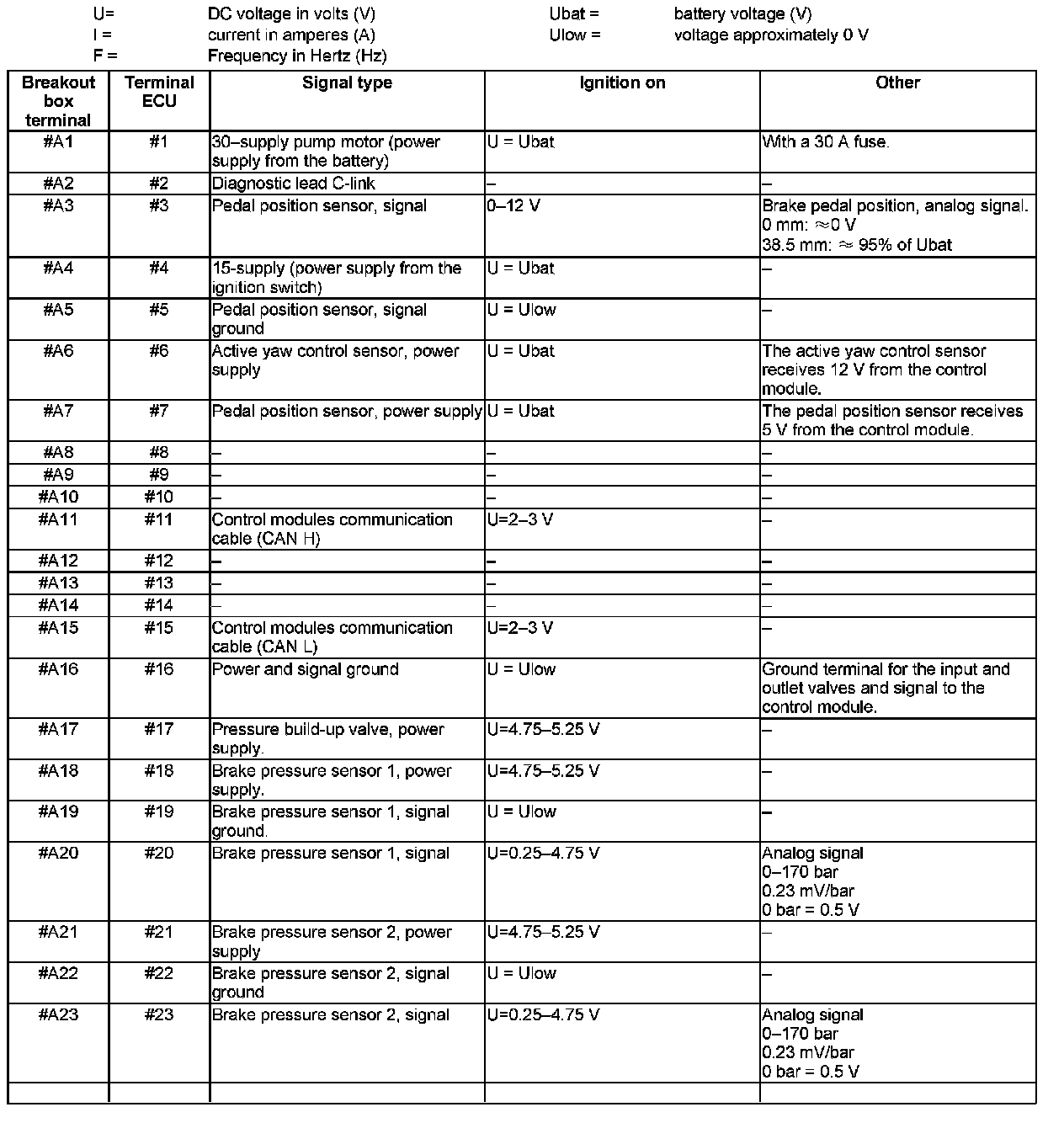

Part 1 Of 2:

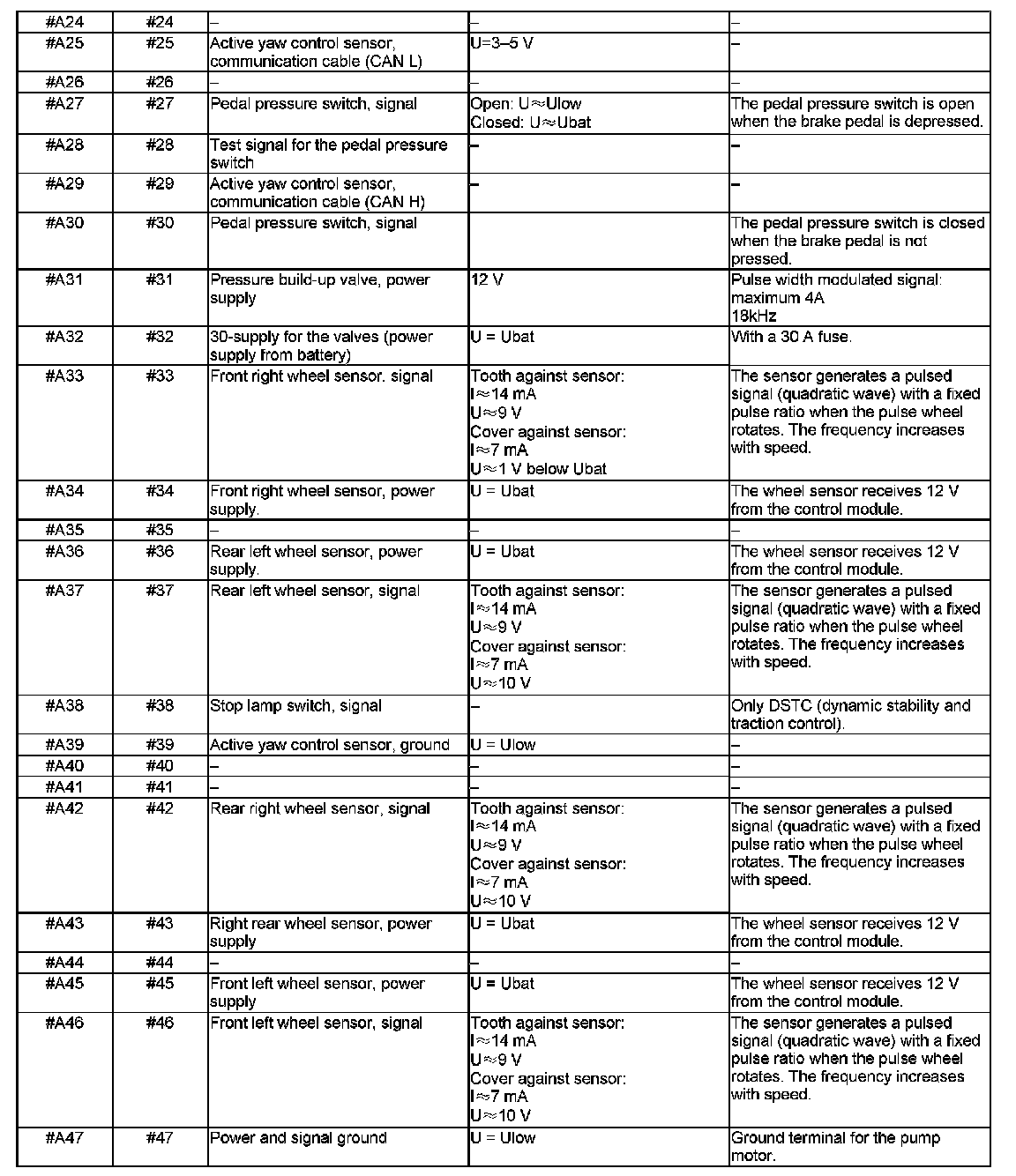

Part 2 Of 2:

All values given are between the relevant terminal in column 1 and terminal # A16 or # A47 (ground), unless otherwise indicated in brackets.
Terminals 8-10,12-14, 24,26, 35, 38, 40-41 and 44 are not used.

Note! It is important that the breakout box is connected and that the ground terminals have been checked before readings are taken.
