Diagnostic Trouble Codes (DTCS)

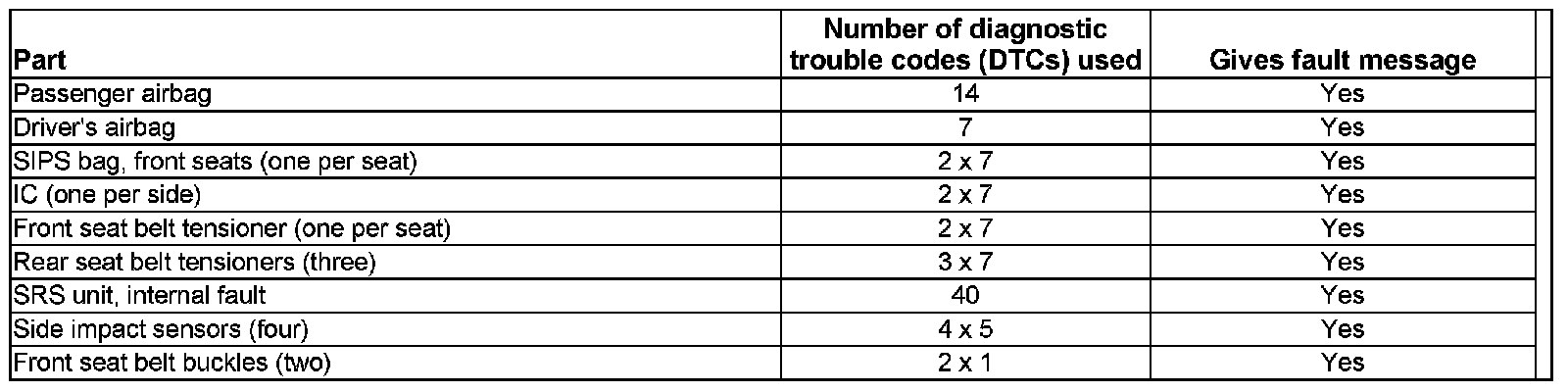

Diagnostic trouble codes (DTCs)

��+D:

Diagnostic trouble codes (DTCs) are stored by the SRS module's internal diagnostic procedures. The diagnostic trouble codes (DTCs) are defined in the software which is installed in the factory.

Diagnostic trouble codes (DTCs) are stored in the event of each diagnosis case automatically carried out by the SRS module or activated by the VADIS/VIDA station.
