Panel and SRS Passenger Airbag Module

Passenger Airbag Module

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparations
Disconnect the battery lead.
Replace the decal.
Remove the dashboard.

Removing

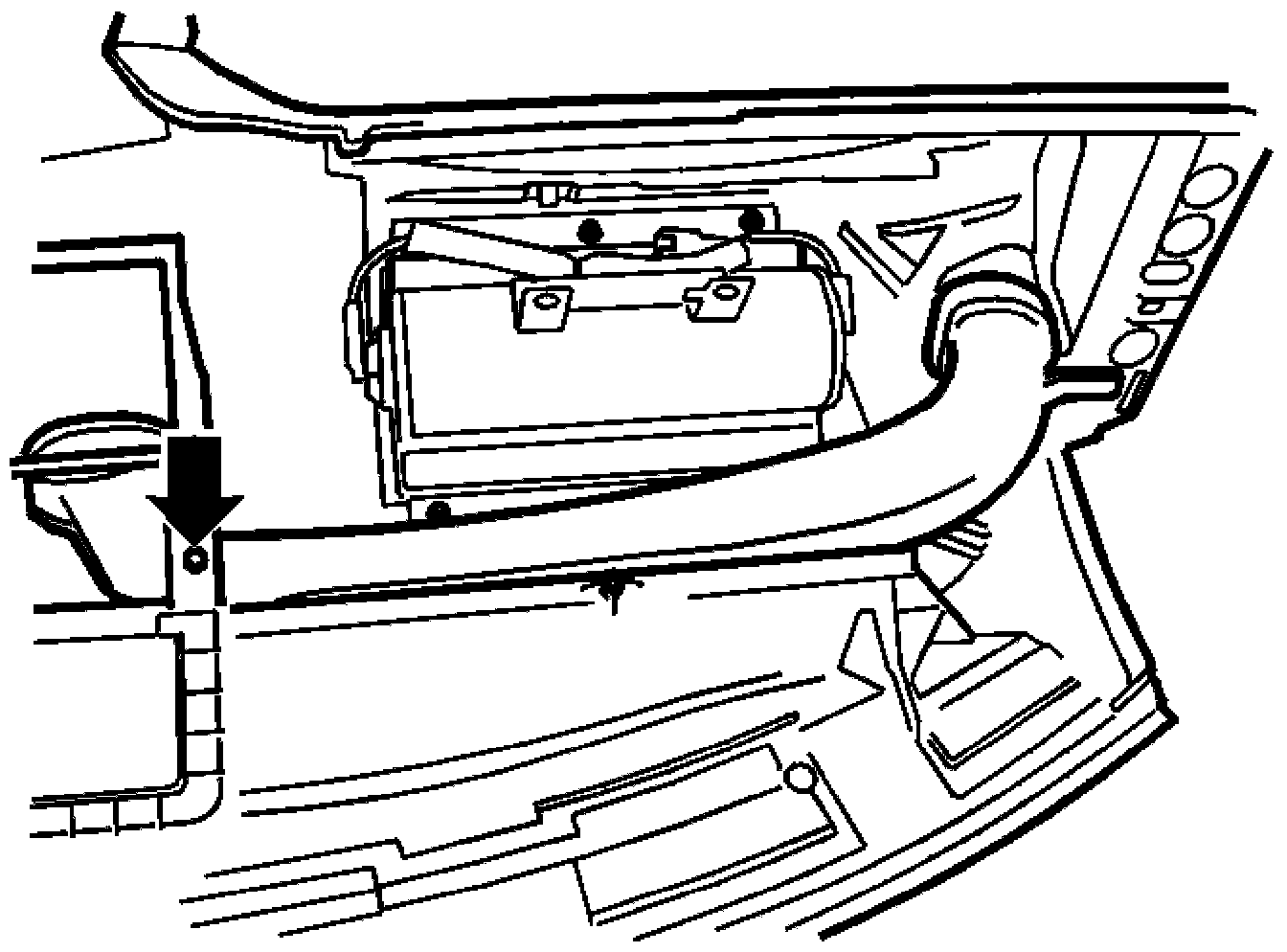

- Remove the screw for the air duct.
- Detach the clip mounting.
- Ease out the air duct.

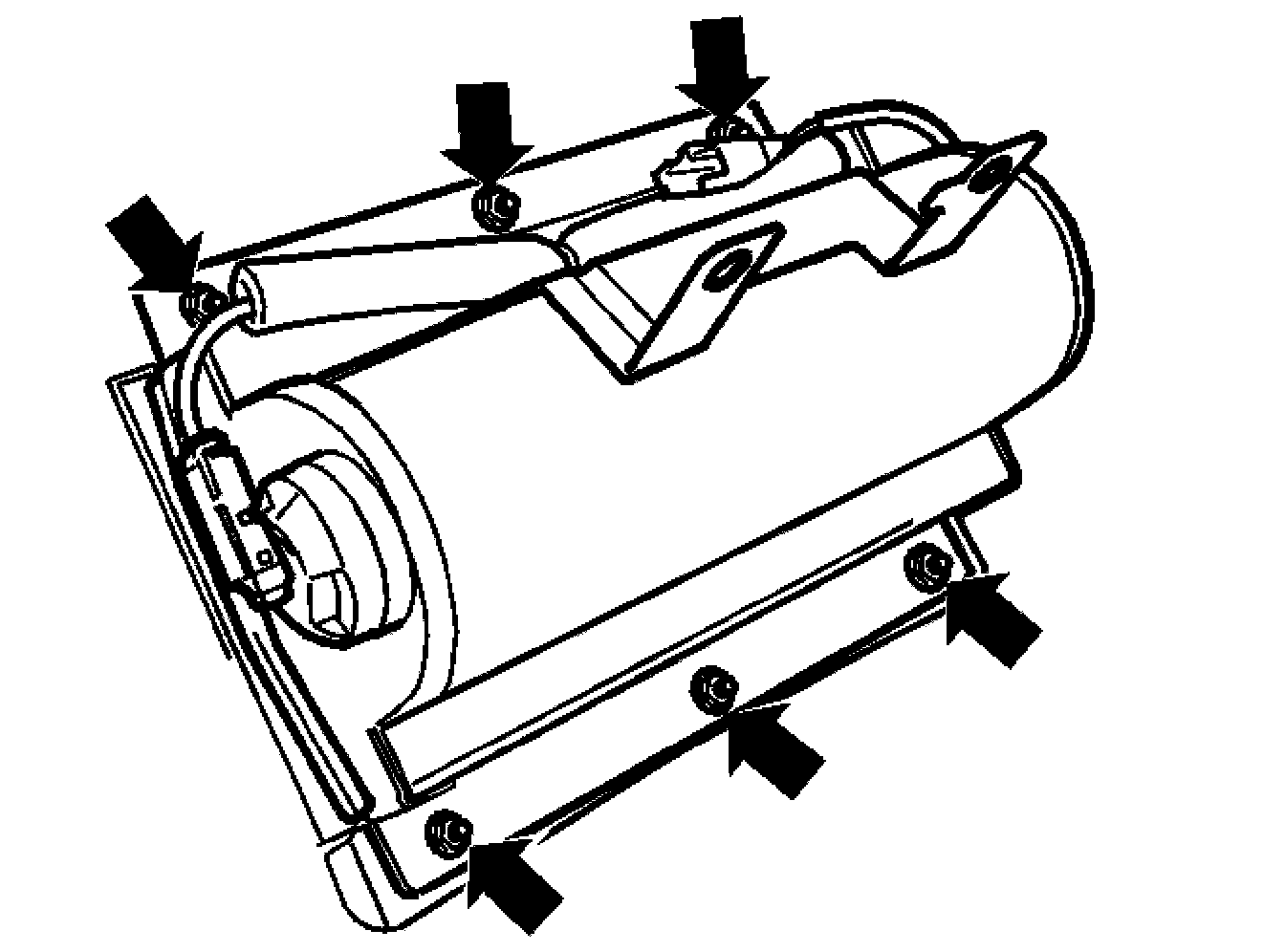

- Remove the six nuts.
- Lift out the passenger airbag module.

Installing
- Install the passenger airbag module
- Install the six nuts. Tighten to 10 Nm
- Install the air duct
- Install the dashboard.
- Install the battery lead.
