Function

Function

Controlling functions and menu selection using the steering wheel buttons
See:
- Design and Function, audio module (AUM). Applies to S60, V70, V70XC/XC70 and S80
- Design and Function, audio module (AUD). Applies to XC90
- Design and Function, Road traffic information system (RTI). Applies to S60, V70, V70XC/XC70 and S80
- Design and Function, multimedia module (MMM). Applies to XC90
- Design and Function, engine management system
- Design and Function, phone module (PHM).

Controlling the headlamps and turn signal lamps
See Design and Function, central electronic module (CEM).

Horn
See Design and Function, central electronic module (CEM).

Windshield wiper and washer functions
See Design and Function, central electronic module (CEM).

Trip computer and displaying/erasing text messages

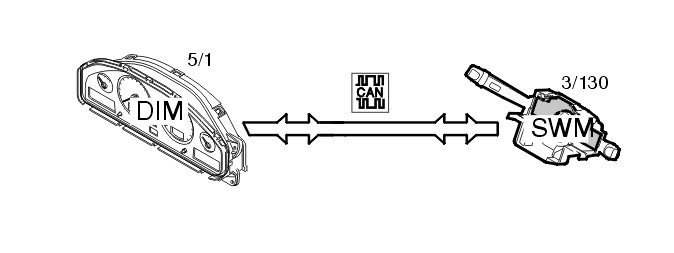

The left-hand control stalk is used to control the trip computer and to display and erase text messages in the driver information module (DIM) (5/1). The steering wheel module (SWM) (3/130) transmits information to the driver information module (DIM) on the Control area network (CAN) indicating which function is selected.
The trip computer menu is controlled using the ring on the left-hand control stalk. Turn the ring forwards or backwards to scroll through the menu one step at a time. Some menu selections, such as average speed and fuel consumption, can be reset using the RESET button.
Error messages displayed in the driver information module display are erased using the READ button.
For additional information about the trip computer and text messages, see Design and Function, driver information module (DIM).
