Entertainment System Control Module: Service and Repair

Entertainment equipment

TV receiver, replacing

Removal







- Remove the front floor hatch from the cargo compartment
- Fold up the short backrest

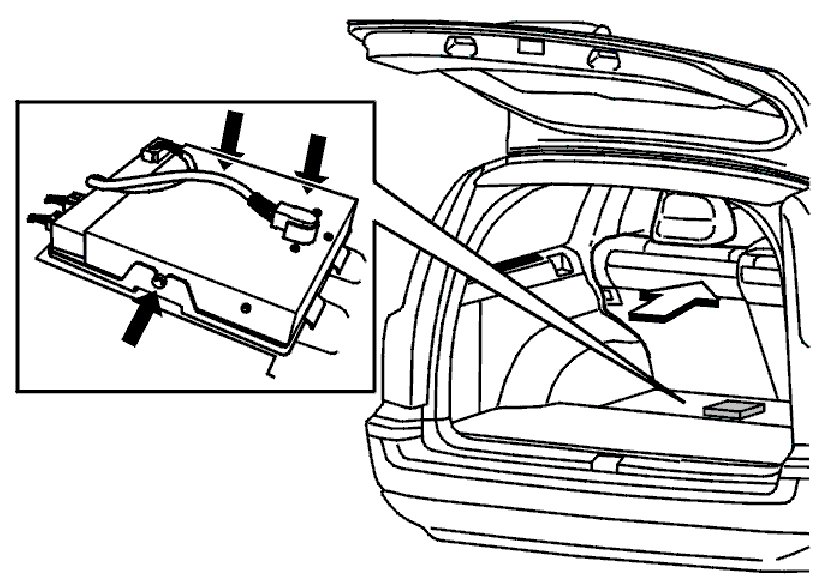

- Slacken off the front and rear screws for the receiver. Lift the receiver up
- Disconnect the connectors.

NOTE: The DIN connector and terminal on the receiver are marked yellow.

Installation
- Lightly tighten the screws for the receiver
- Install the connector.

NOTE: The DIN connector and terminal on the receiver are marked yellow.

- Install the receiver. Tighten the screws
- Reposition the backrest
- Install the front floor hatch.
