Component Resistance Values

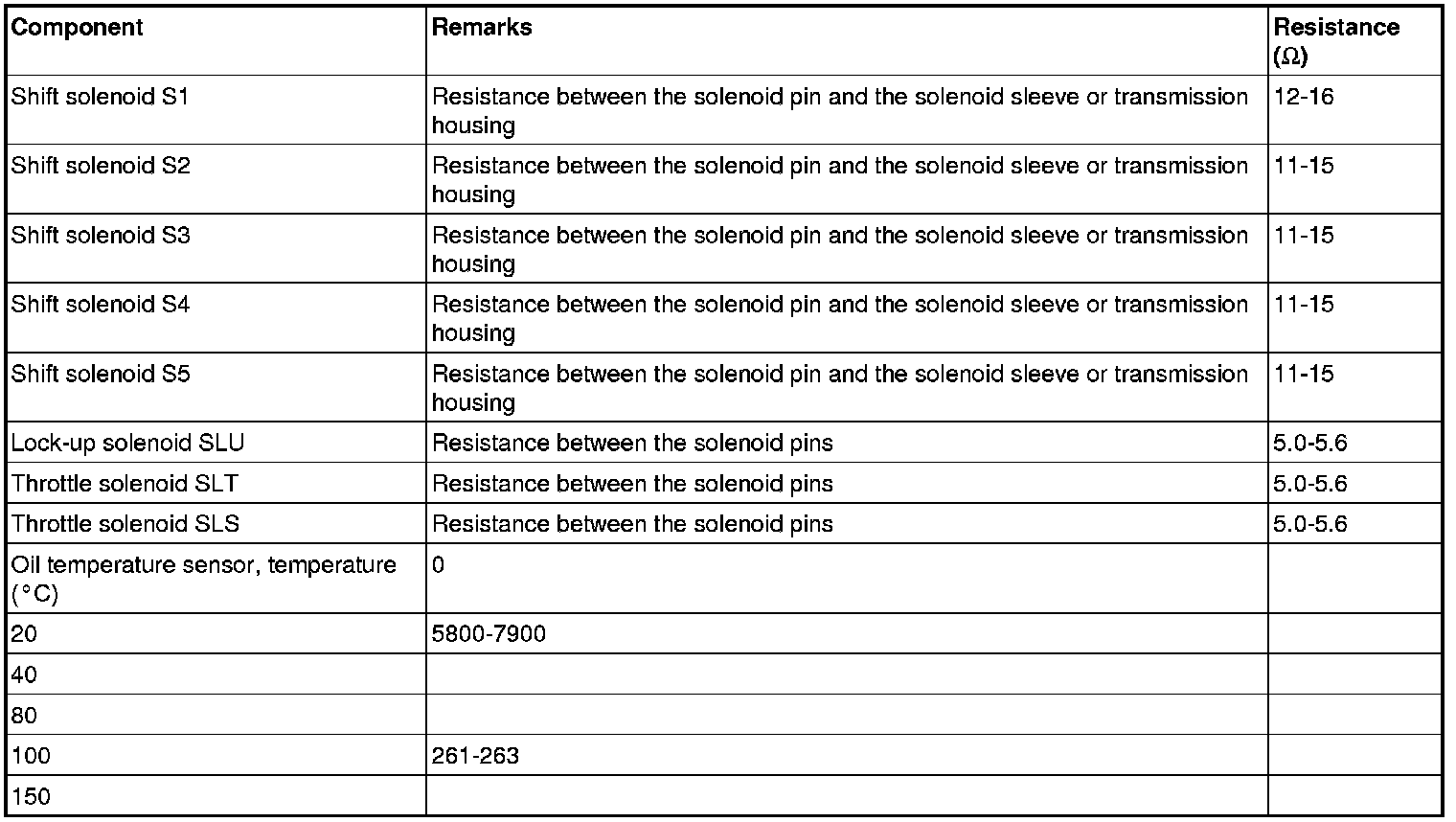

Component resistance values
The resistance values assume a temperature of +20°C unless otherwise stated.
