Accessory Electronic Module With Wiring Kit

Accessory electronic module with wiring kit

- Turn the ignition key to position 0
- Cars with manual gearboxes: Remove the ignition key
- Disconnect the battery negative lead.

Note! Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

Illustration A applies to the S60 and the S80

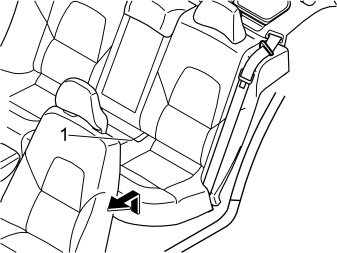

- Remove the seat cushion (1). First pull the front edge of the seat cushion up. Pull the cushion forwards. Then lift the seat cushion out.

Illustration B applies to the V70 (00-)

- Fold the rear seat cushions forward.

Illustration A applies to the S60 and the S80

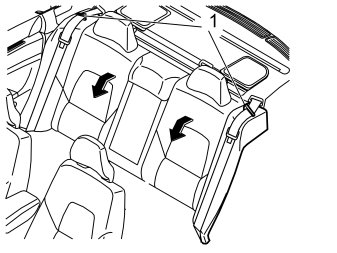

- Fold both the rear backrests forward
- Remove the seat belts from the guides (1).

Illustration B applies to the V70 (00-)

- Fold the rear backrests forward.

Applies to the S60

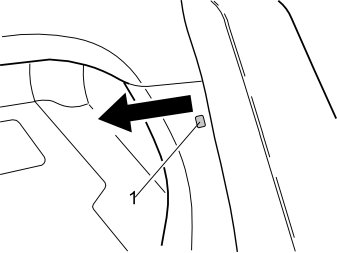

- Remove the clip (1) at the side of the left-hand side cushion
- Pull the top edge of the left front cargo compartment panel out to access the upper lock for the side cushion
- Repeat the operation on the right-hand side.

Applies to the S60

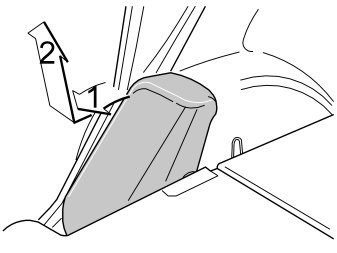

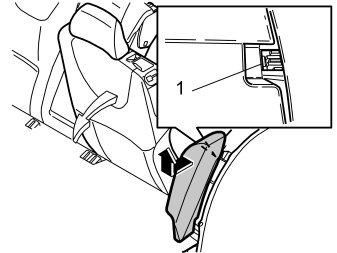

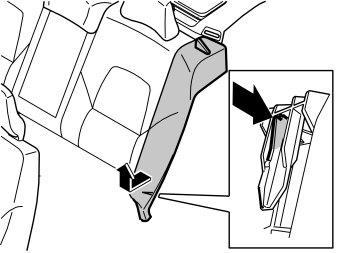

- Remove the left-hand side cushion. First press in the catches (1) at the top edge of the reverse of the side cushion. Pull the cushion out slightly

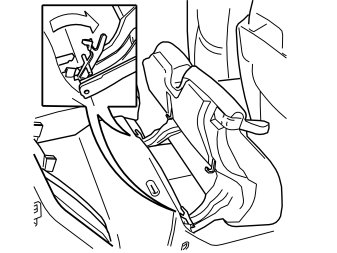

- Grasp the cushion using both hands. Twist counter-clockwise until the catches on the inside release
- Remove the side cushion. First pull out the upper edge of the side cushion. Then pull upwards
- Repeat the operation on the other side.

Applies to the S80

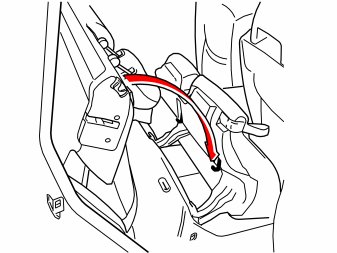

- Insert your hand down the side of the lower section of the side cushion. Remove the left-hand side cushion
- Release the catches. At the same time lift the side cushion
- Place the cushion to one side
- Repeat the operation on the other side.

Applies to the V70

- Remove both side cushions. First pull the upper edge of the cushions backwards. Then lift the cushions upwards.

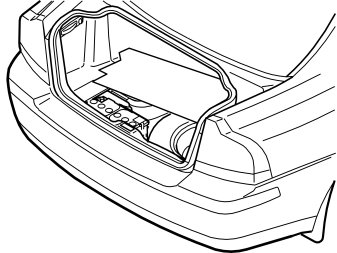

Applies to the S60

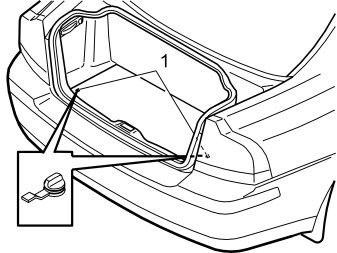

- Remove the cargo compartment carpet at the rear edge. First turn the two handles (1) 90°.

Applies to the S60

- Pull up the front of the cargo compartment carpet. Fold the front half back over the rear half of the cargo compartment carpet.

Applies to the S60

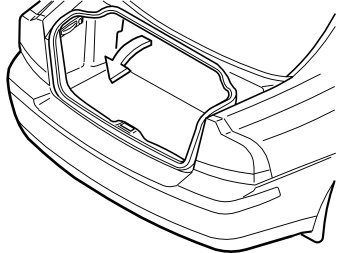

- Slide the entire cargo compartment carpet forward slightly. Twist slightly to remove the carpet through the tailgate opening
- Remove the cargo compartment carpet.

Applies to the S60

- Press the centre of the clips at the lower edge of the foldable side panel on the left-hand side until they click
- Remove the two clips
- Remove the plastic nut at the front and lower edges of the side panel
- Repeat the operation on the right-hand side.

Applies to the S60

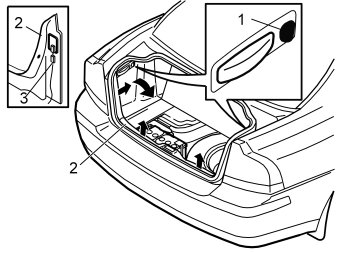

- Turn the handle (1) on the right and left-hand sides through 90°.
- Fold the side panels down. Lift the panels out
- Pull the tailgate sill trim panel (2) forwards on the right and left-hand sides until the clips on each side release. Pull hard but carefully. The panel is securely positioned
- Remove the wiring (3) for the cargo compartment lighting
- Pull the sill trim panel straight up until the four clips on the underneath release. Remove the sill trim panel.

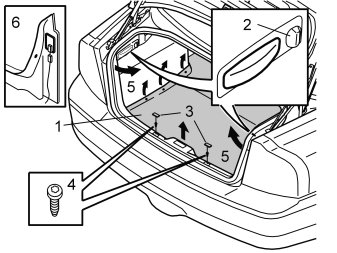

Applies to the S80

- Remove the cargo compartment carpet (1)
- Turn the clip (2) for the left and right side panels. Remove the clips and the plastic nut. Remove the panels
- Remove the two covers (3). Slacken off the two screws (4) from under the cover. Grip the outer edges of the panel (5). Pull the panel inwards towards the centre so that the clips release at the sides. Disconnect the connectors (6) for the cargo compartment lamps
- Remove the panel by pulling it straight upwards so that the clips release from the rear crossmember.

Applies to S60 and S80

Remove:

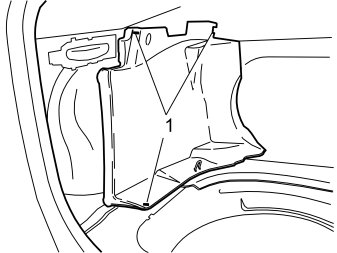

- the clips (1) from the left front side panel in the cargo compartment
- the panel. Place the panel to one side
- repeat the operation on the other side.

Applies to the V70

- Remove both floor hatches. First lift the rear edges of the floor hatches slightly. Then pull the hatches backwards from their mountings.

Applies to the V70

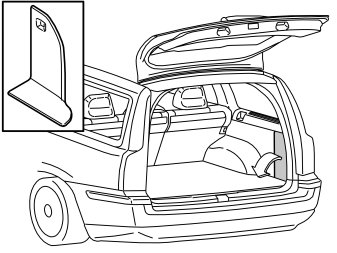

- Remove the foldable panels on the left and right-hand sides of the cargo compartment.

Applies to the V70

- Remove the cover and the screw from the front edge of the left-hand side panel. Remove the left-hand side panel
- Pull the top edge of the panel out until the clips release
- Fold the panel inwards. Lift the panel out
- Repeat the operation on the other side.

Applies to the V70

- Remove the insulation panel from the cargo compartment.

Applies to the V70

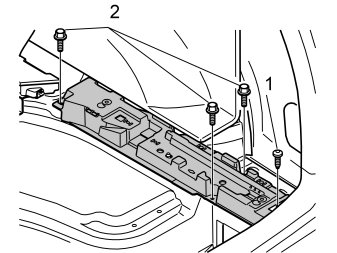

Remove:
- the screw (1) from the right-hand side of the tailgate sill trim panel
- the three screws (2) in the right-hand floor support
- the floor support.

Applies to S60 and S80

- Push the insulation panel to one side under the seat cushion on both sides
- Route the new cable harness along the side of the cargo compartment and out into the passenger compartment as illustrated
- Position the end of the cable with the two large grey connectors on the left-hand side of the car under the seat cushion by the cable duct
- Route the cable harness from the left-hand cable duct under the seat cushion, along the wheel arch and out through the hole in the car body behind the backrest. Then route along the wheel arch and rear crossmember over to the right-hand side of the car
- Continue to route the cable harness along the right-hand side of the cable duct and forward into the car. Then route the cable out through the hole in the car body behind the lower edge of the backrest. Continue to the existing ground terminals under the seat cushion

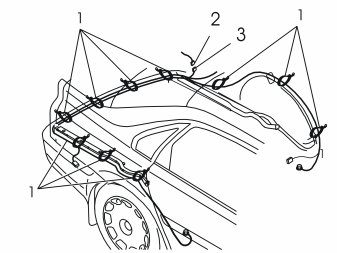

- Secure the cable harness at the existing cable harnesses and cable duct. Use the tie straps (1) (from the kit)
- Find the pre-routed grey connector (2) by the left-hand tail lamp. Connect the grey connector to the corresponding connector (3) from the routed cable harness.

Applies to the V70

- Push the insulation panel to one side under the seat cushion on both sides
- Route the cable harness along the sides of the cargo compartment and out into the passenger compartment as illustrated
- Position the end of the cable with the two large grey connectors on the left-hand side of the car under the seat cushion by the cable duct
- Route the cable harness from the left-hand cable duct under the seat cushion over the wheel arch and continue to the rear edge of the left-hand floor support

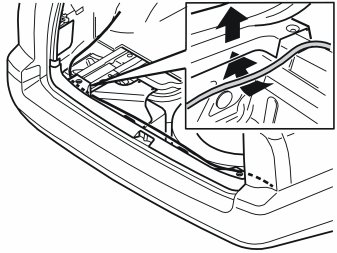

- Pull up the tailgate sill trim panel on the left-hand side. Insert the cable harness between the floor support and the sill trim panel (Illustration B)
- Slide the cable harness in towards the rear crossmember as far as possible. Ensure that the cable harness does not get trapped (Illustration B)
- Then route the cable harness along the existing cable harness by the rear crossmember and over to the right-hand side of the car
- Insert the cable harness towards the rear crossmember (over the right-hand side member) as far as possible
- Route the cable harness along the right-hand side of the cable duct and forward to the existing ground terminals under the seat cushion

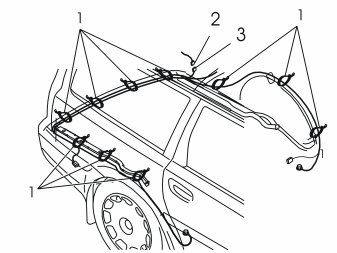

- Secure the cable harness at the existing cable harnesses and cable duct. Use the tie straps (1) (from the kit)
- Find the pre-routed grey connector (2) by the left-hand tail lamp. Connect the grey connector to the corresponding connector (3) from the routed cable harness.

- Connect the black ground lead (1) to the front ground terminal (2). Use the existing ground terminal. Tighten to approximately 10 Nm (8 lbf.ft.)
- Clamp any excess cable. Use a tie strap from the kit
- Fold the insulation panel back into place.

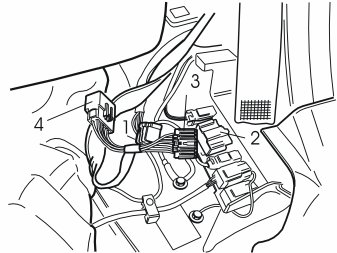

- Remove the connector (1) from the terminal (2) above the cable duct under the rear seat cushion
- Connect the connector (3) from the routed cable harness to the terminal (2)
- Connect the connector (4) from the routed cable harness to the disconnected connector (1). Wrap foam tape (from the kit) around them
- Hide the connectors under the insulation panel
- Fold the insulation panel back into place.

Applies to S60 and S80

- Install the new bracket on the right-hand rear side member as illustrated
- Install and tighten the bracket parallel with the side member. Use the screw and the nut from the kit
- Tighten to 10 Nm (8 lbf.ft.)
- Drill a - 4 mm (5/32") hole in the side member, through the front hole in the bracket
- Tighten the front mounting for the bracket to the side member. Use a self tapping screw from the kit
- Remove any swarf. Rust-proof the hole edge.

Applies to the V70

- Tighten the bracket for the accessory electronic module in the rear right-hand hole for the floor support parallel with the side member. See the illustration
- Drill a - 4 mm (5/32") hole in the side member, through the front hole in the bracket
- Remove the screw and the bracket
- Remove any swarf. Rust-proof the hole edge.

Applies to the V70

- Ensure that the cable harness, previously routed over the side member, is positioned as close to the rear crossmember as possible. This is to prevent the cable harness being trapped by the floor support or the two support feet for the floor support
- Reinstall the floor support. Tighten the floor support together with the bracket for the accessory electronic module. Use the three M6 screws. Tighten the screws. Tighten to 10 Nm (8 lbf.ft.)
- Position two new spacer washers between the front hole in the bracket and the floor support. Tighten using a new self tapping screw.

Applies to all models

Applies to cars equipped with a Diversity antenna amplifier
- Wrap foam tape around the cable / wiring for the antenna amplifier.

Applies to all models

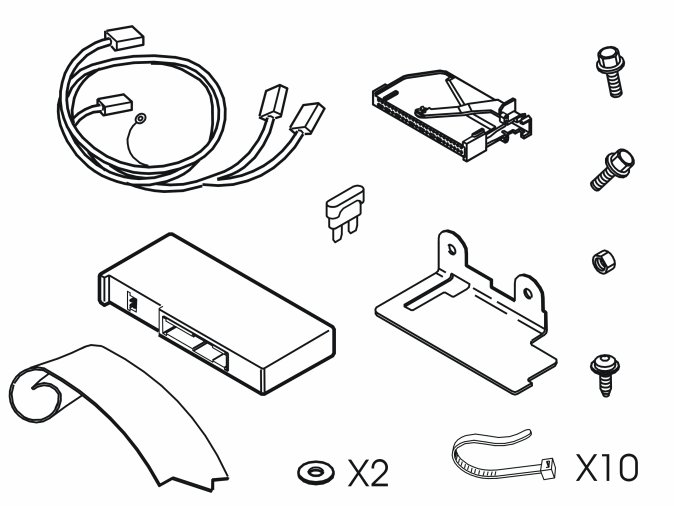

- Take the accessory electronic module from the kit. Connect the cable and connector previously routed along the right-hand side member.

Applies to all models

- Press the control module onto the bracket by the side member.

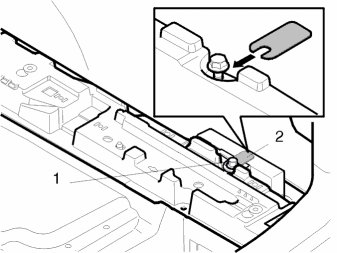

- Slacken off the rear screw (1) in the bracket for the accessory electronic module a few turns
- Insert the grooved end of the lock facing (2) under the screw head. Position as illustrated
- Tighten the screw. Tighten to 10 Nm (8 lbf. ft.).

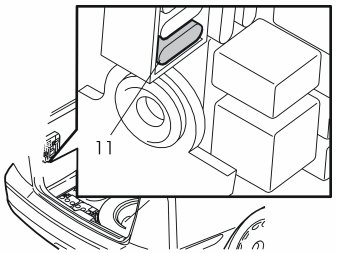

- Install the fuse from the kit in position 11 in the fuse holder.

- Reinstall the panels in the cargo compartment
- Reinstall the two screws in the tailgate sill trim panel
- Reinstall the side cushion
- Fold the backrest back into place
- Reinstall the seat cushions.

- Turn the ignition key to position II
- Reconnect the battery negative lead
- Reinstall the cargo compartment carpet
- Reinstall both floor hatches
- Program the software according to the service information in VIDA.
