Map Light Bulb: Service and Repair

Bulb, Reading Lamp, Rear, Replacing

Removal

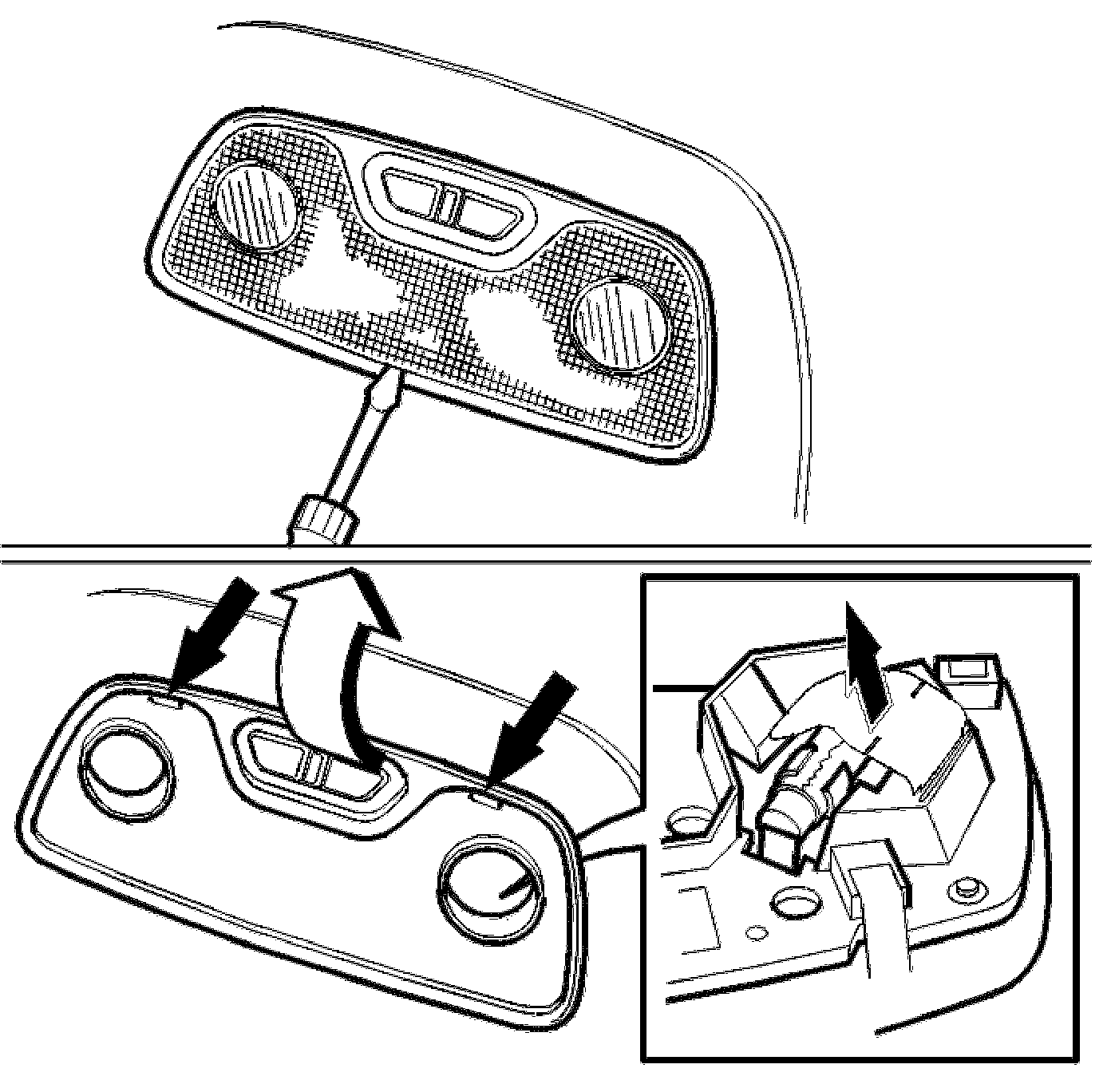

Reading lamp and bulb







- Carefully remove the lens using a small screwdriver
- Release the front edge of the lamp by pressing the catches backward and inward
- Disconnect the connector
- Remove the reflector
- Remove the bulb.

Installation

Reading lamp and bulb

In reverse order.
