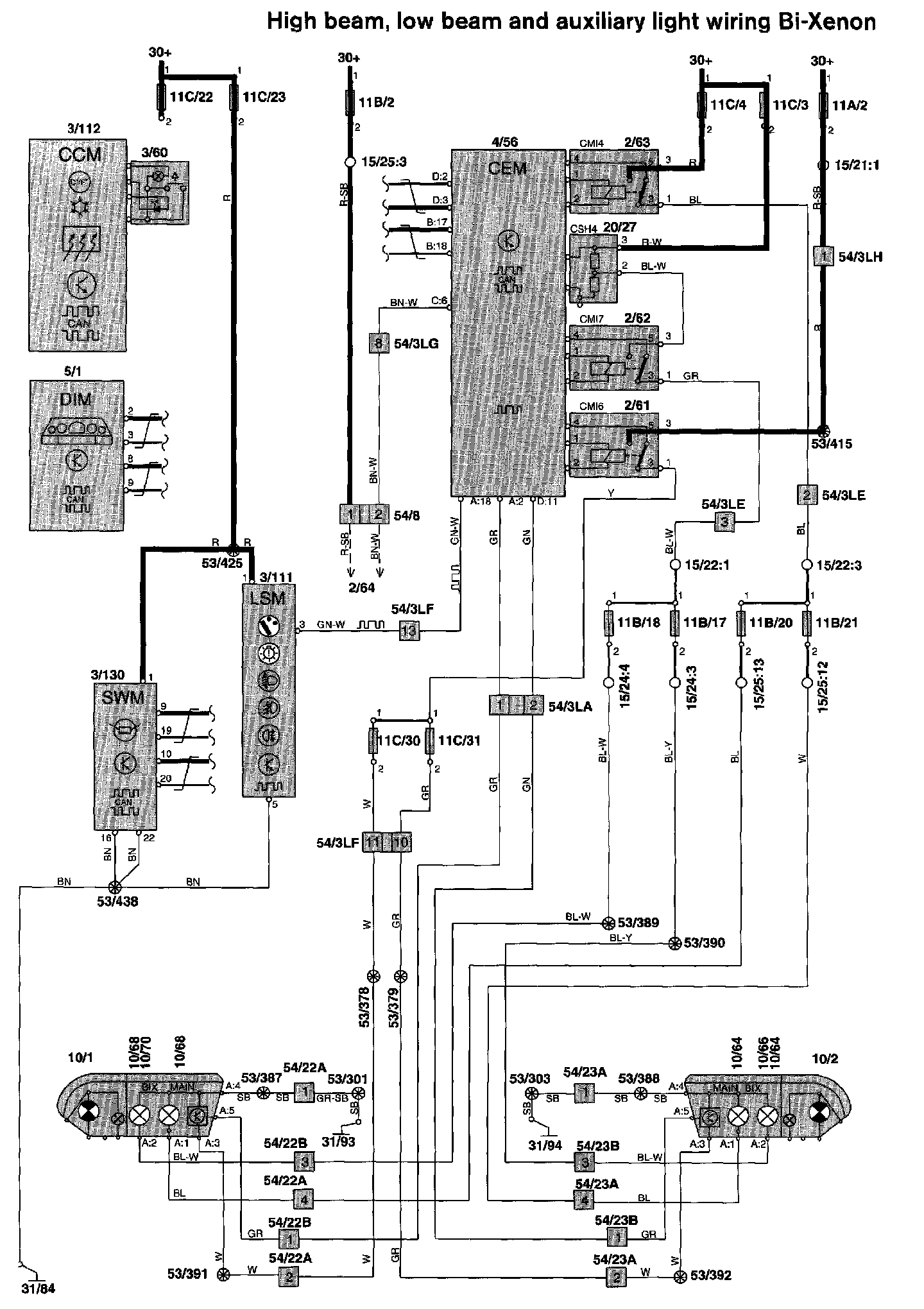

High Beam, Low Beam and Auxiliary Light Wiring BI-Xenon




High Beam, Low Beam And Auxiliary Light Wiring Bi-Xenon:






Diagram legend: Diagram Legend
