Back-Up (Reversing) Warning Sensor, Replacing

Back-up (reversing) Warning Sensor, Replacing

Special tools: 981 4214

NOTE: The control module for the back-up (reversing) warning system is in the right wheel arch. The accessory electronic module and, for the V70 and V70XC, the remote starter unit are also positioned there.

Removal

NOTE: As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information is always correct.

Removing the side panel

- Ignition off.
- Remove the side panel on right-hand side.

Disconnecting the connector

CAUTION: The following procedure must be carried out to ensure that the connector and wiring are not damaged when removing the bumper.

- Follow the cable from the sensors in the bumper up to the control module for the back-up (reversing) warning system.
- Remove the control module for the back-up (reversing) warning system. Disconnect the connector (its cable comes from the bumper).

NOTE: Disconnect the correct connector. The control module for the back-up (reversing) warning system has 2 connectors.

Removing rear bumper

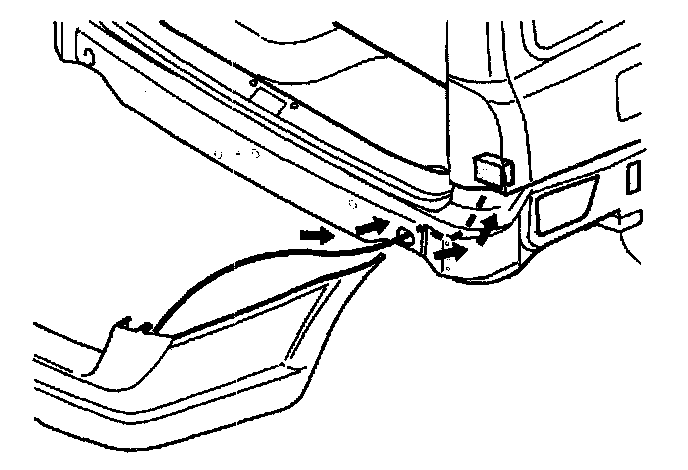

- Remove the rear bumper.
- Pull the cable out of the hole in the body.

Removing the back-up (reversing) warning sensor

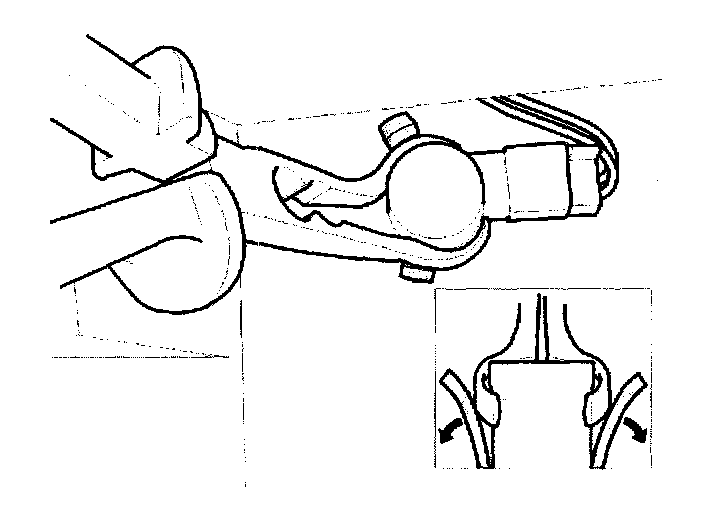

- Press down the spark plug cap rod 981 4214 between the sensor and the two upright catches on the holder so that the catches release from the sensor.
- Carefully pull up the sensor.
- Disconnect the connector.

Installation

Installing the back-up (reversing) warning sensor

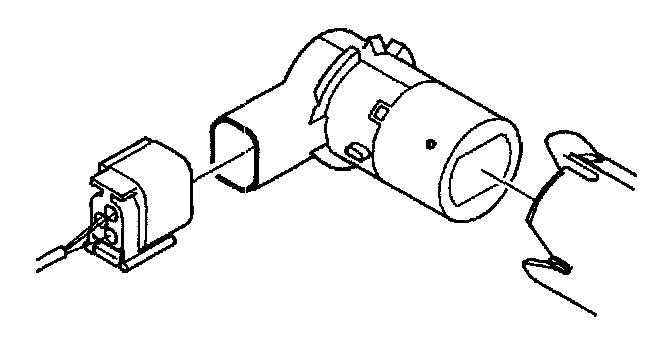

- Connect the connector to the sensor.
- Install the sensor in the holder and press it down so that the catches lock the sensor.

Installing the rear bumper

- Install the rear bumper.

Installing the connector

- Connect the connector to the control module for the back-up (reversing) warning system (ensure that it is secure).
- Install the control module for the back-up (reversing) warning system.
- Reinstall the side panel.
- Check the function.
