Home >> Volvo >> 2002 >> V70 2.4T AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Emission Control Systems

Emission Control Systems

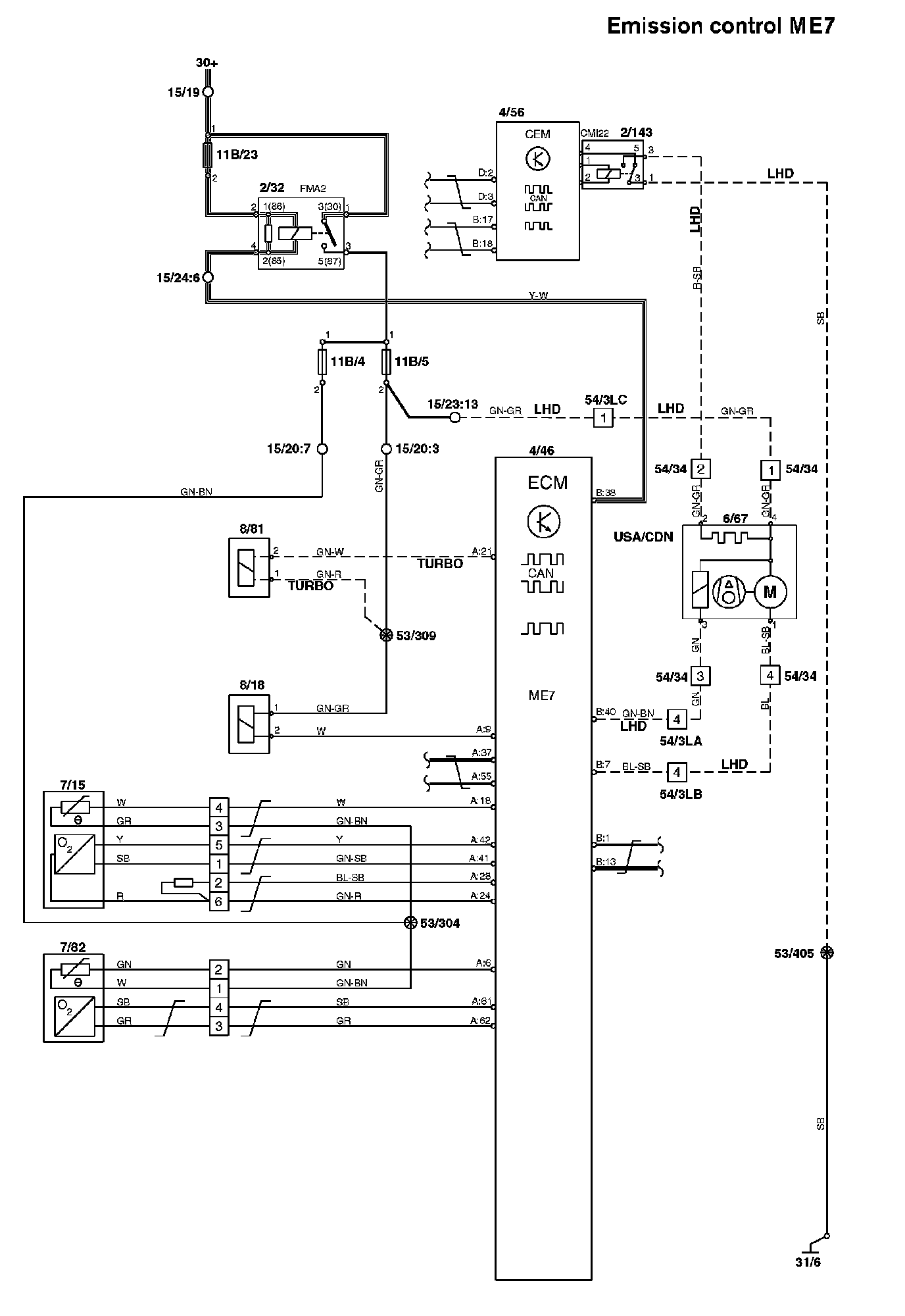

Emission Control, ME7:






Diagram Legend, Diagram Legend

Wire Color Code Identification and other Abbreviations, Wire Color Code and Other Abbreviations
