Instrument Cluster / Carrier

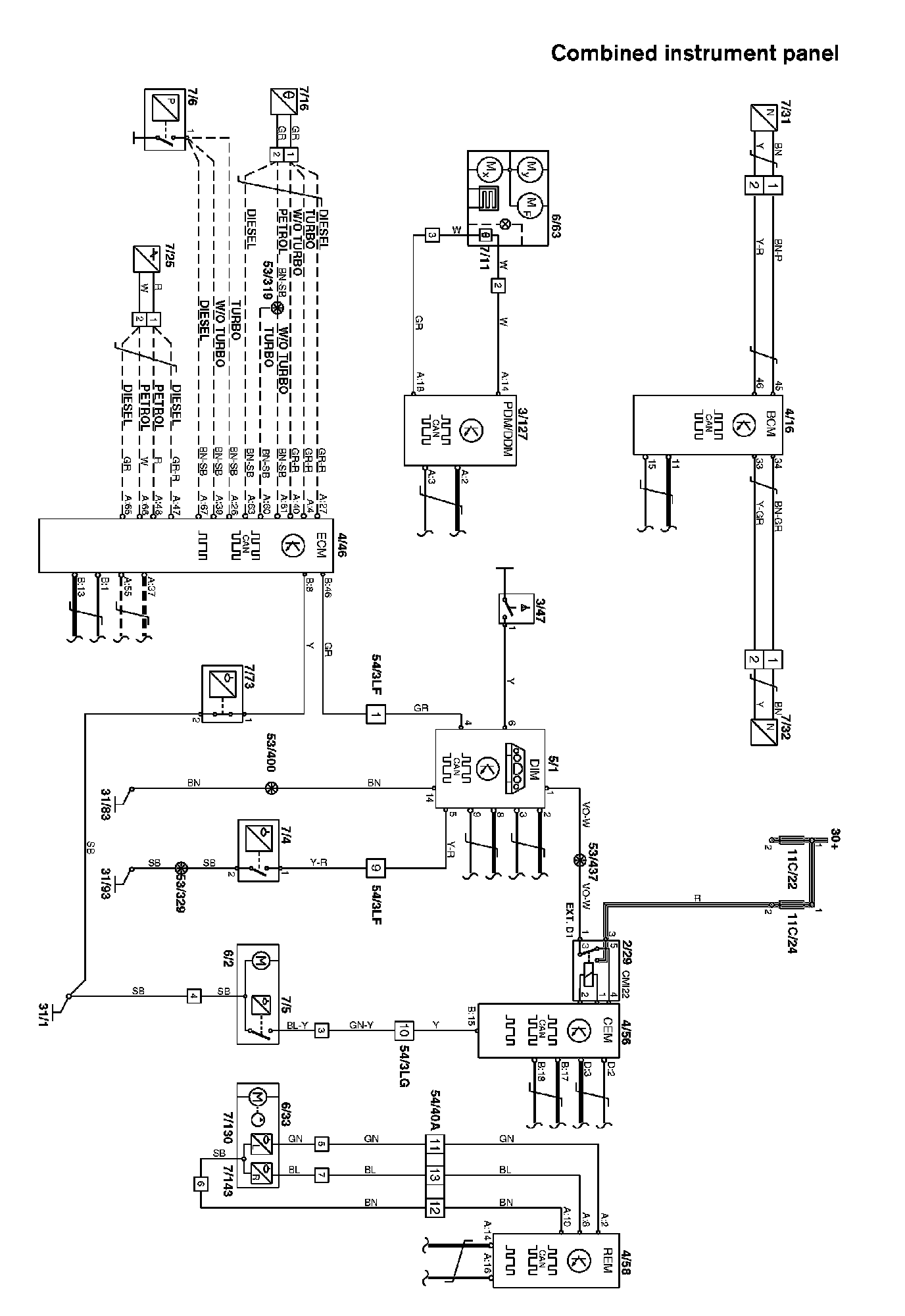

Combined Instrument Panel:






Diagram Legend, Diagram Legend

Wire Color Code Identification and other Abbreviations, Wire Color Code and Other Abbreviations
