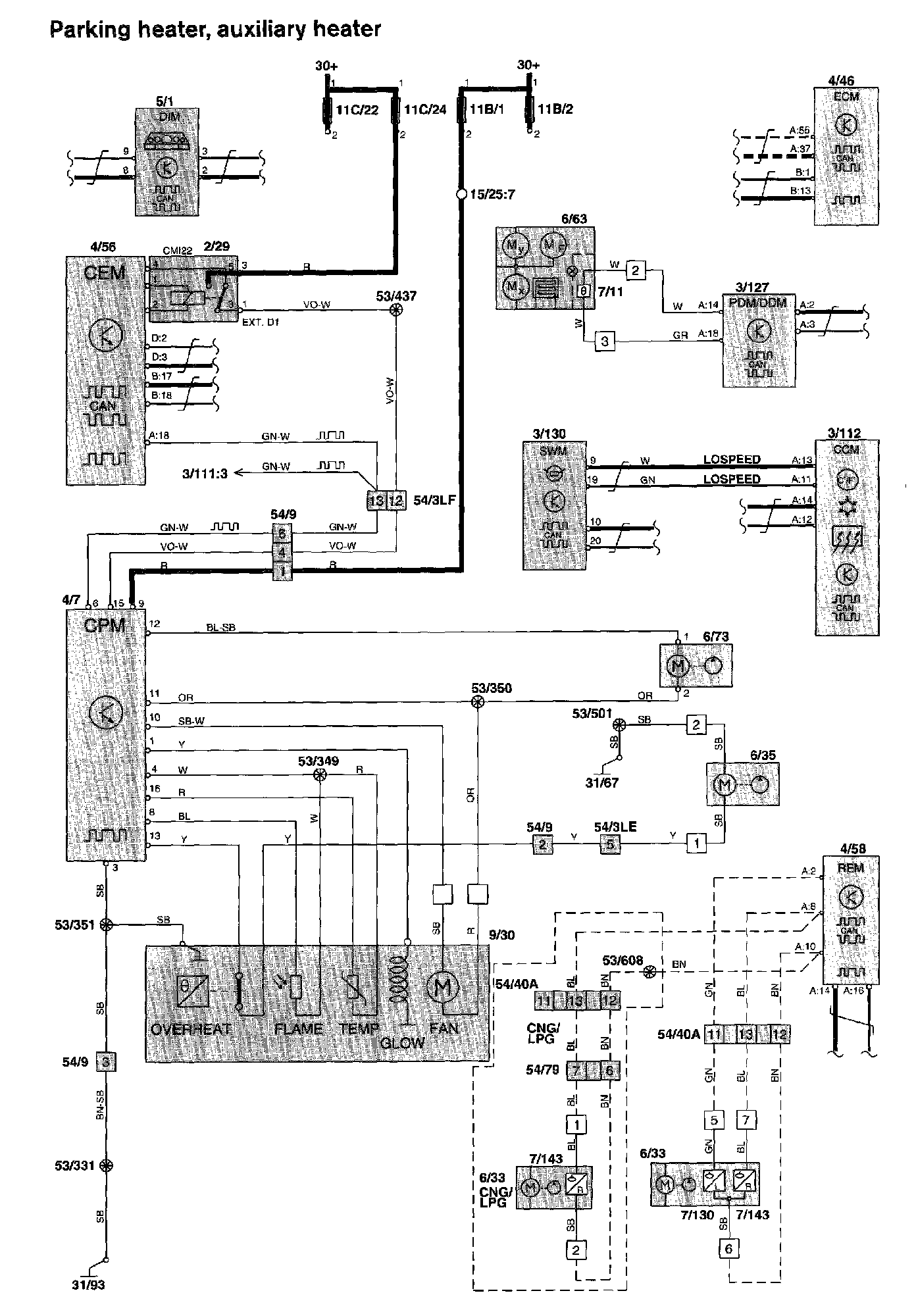

Parking Heater, Auxiliary Heater




Parking Heater, Auxiliary Heater:






Diagram legend: Diagram Legend
