Manual Climate Control (MCC)

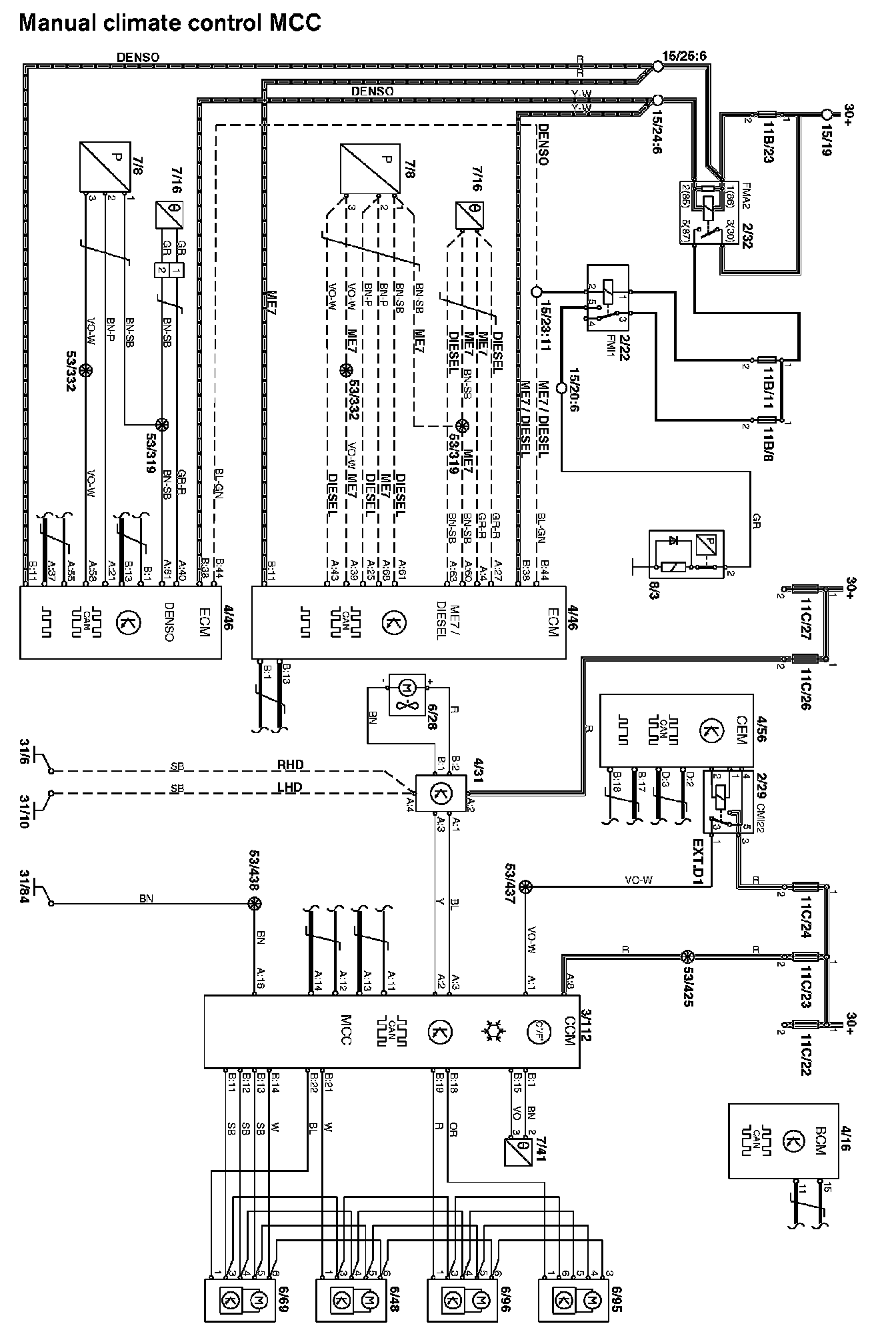

Manual Climate Control MCC:






Diagram Legend, Diagram Legend

Wire Color Code Identification and other Abbreviations, Wire Color Code and Other Abbreviations
