Hazard Warning Lamps
>>
Safety Lighting
Safety Lighting

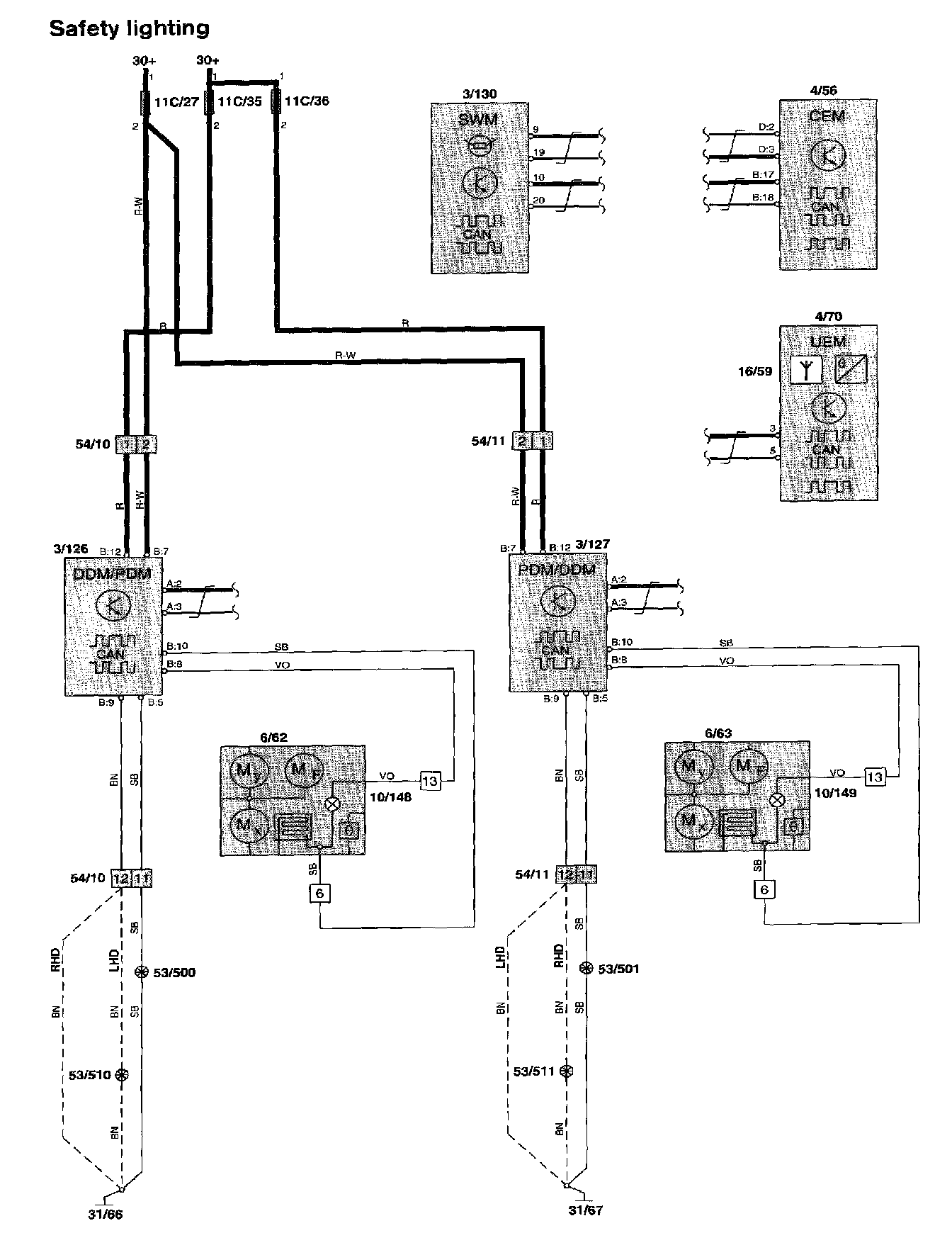

Safety Lighting:
Diagram legend:
Diagram Legend
