Home >> Volvo >> 2002 >> V70 2.4T AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> System Diagram

System Diagram

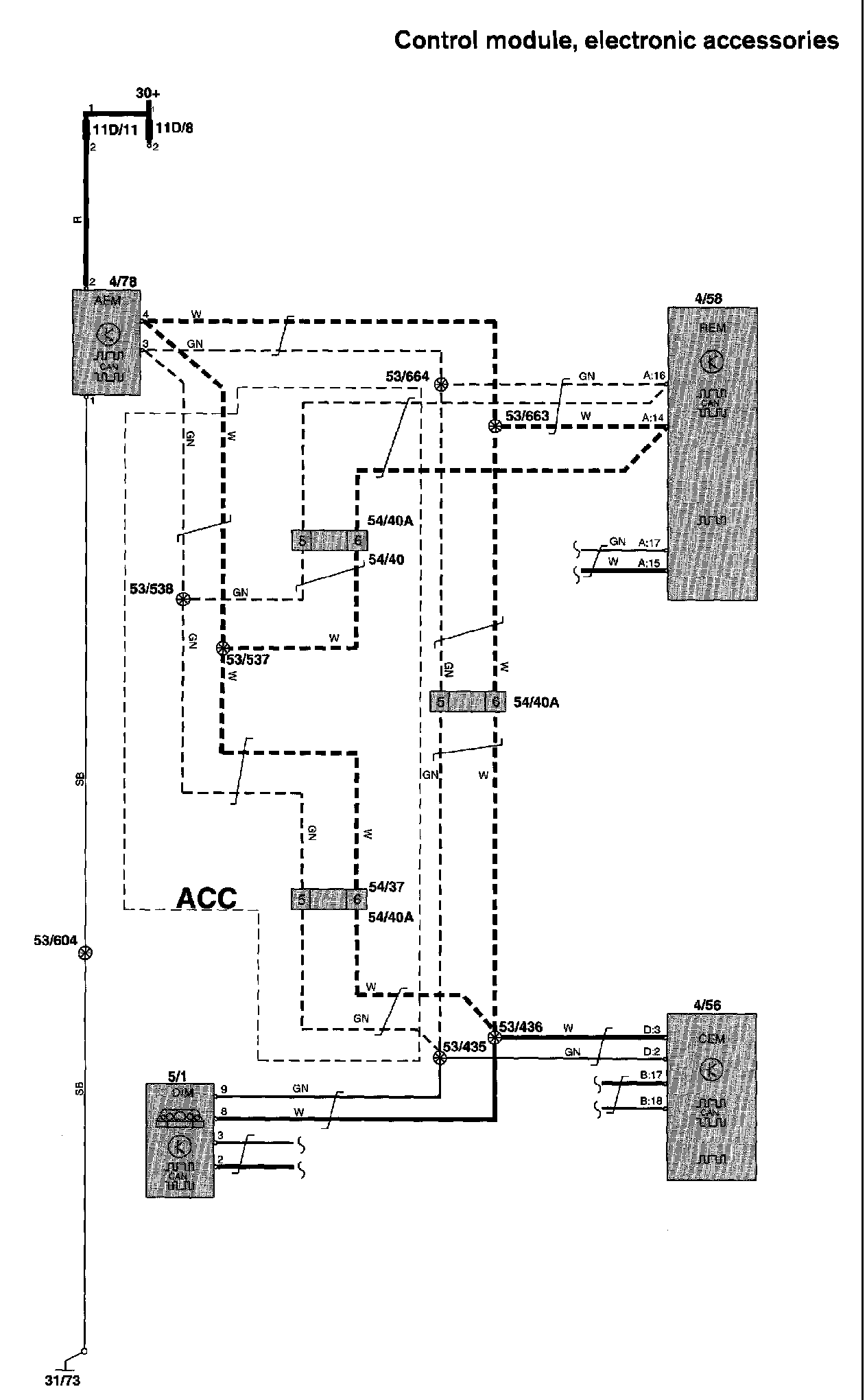

Control Module, Electronic Accessories:






Diagram legend: Diagram Legend
