Replacing the Hand Control on Turning Seats

Replacing the hand control on turning seats

Removal




- Ignition off
- Remove the sill trim panel. See Front door sill trim panel Front Door Sill Trim Panel
- Push the carpet at the B-post and the front sill to one side
- Cut off the tie strap

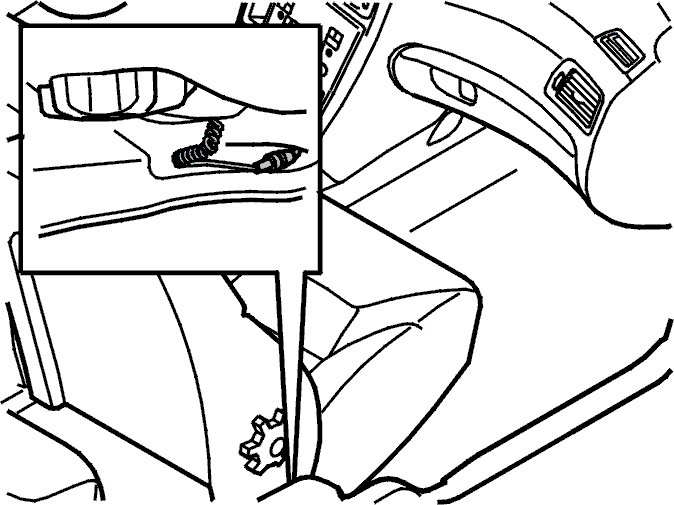

- Remove the DIN connector from the butyl tape
- Remove the hand control and the cable.





Installation
In reverse order.
