Drive Shaft For Height Adjustment

Drive shaft for height adjustment

Removing the drive shaft





Remove:
- the height adjustment motor. See Height adjustment motor, front / rear Height Adjustment Motor, Front / Rear
- the bushing

Note! Be careful with the bushing.

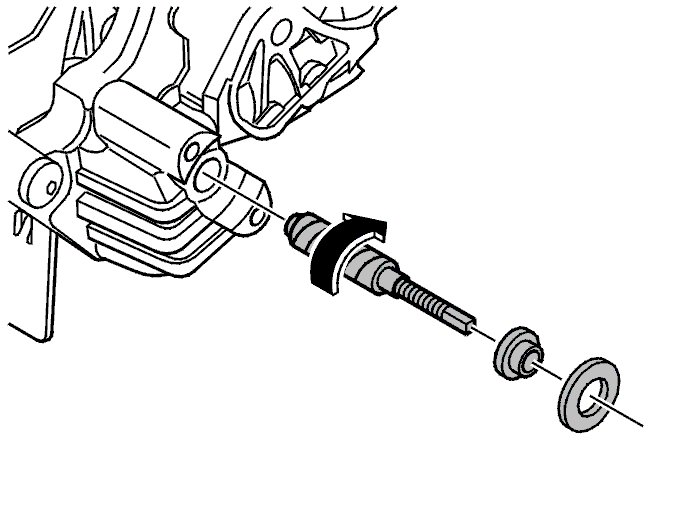

Unscrew and remove the drive shaft with the rack.

Note! Ensure that the gears do not move during the operation. There is a risk of function failure and increased wear.

Installing the drive shaft

Install:
- the drive shaft
- the bushing
- the height adjustment motor. See Height adjustment motor, front / rear Height Adjustment Motor, Front / Rear.
