Front-Rear Adjustment Motor

Front-rear adjustment motor

Replacing the motor for front-rear adjustment

Remove:
- the bracket. See Bracket (cross stay) Bracket (Cross Stay).

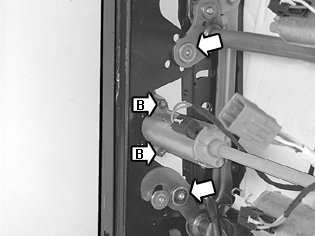

- the two screws.




- two screws (B)

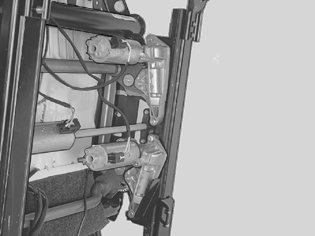

- the motor.

Note! Bend the system upwards until it can be dismantled.

Note! Ensure that the rails do not alter position during replacement.

Installation

Install:
In reverse order.
The seat must be tightened to the floor. Tighten to 48 Nm.
