Trunk / Liftgate Lock: Service and Repair

Lock cylinder, replacing

Removing the lock cylinder




Remove the knee bolster. See Knee bolster Service and Repair.

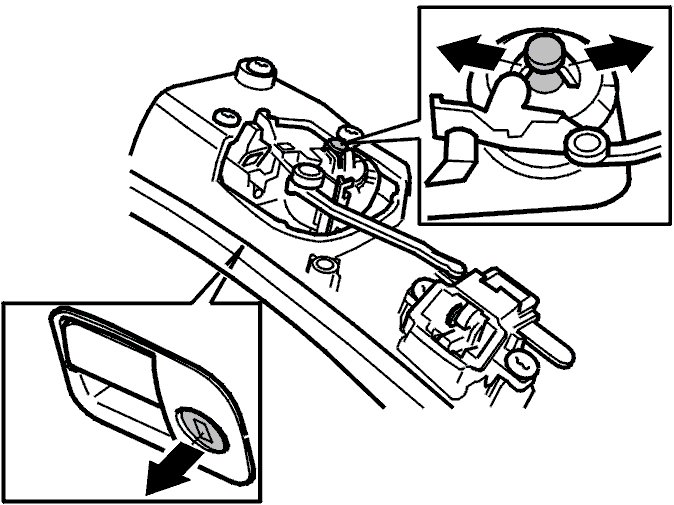

Open the lugs.
Press out the cylinder.

Note! It is not necessary to remove the lock assembly when removing the lock cylinder.

Installing the lock cylinder

Install:
In reverse order.
