Mechanical Cable Internal Handle Rear Side Door
Mechanical Cable Internal Handle Rear Side Door

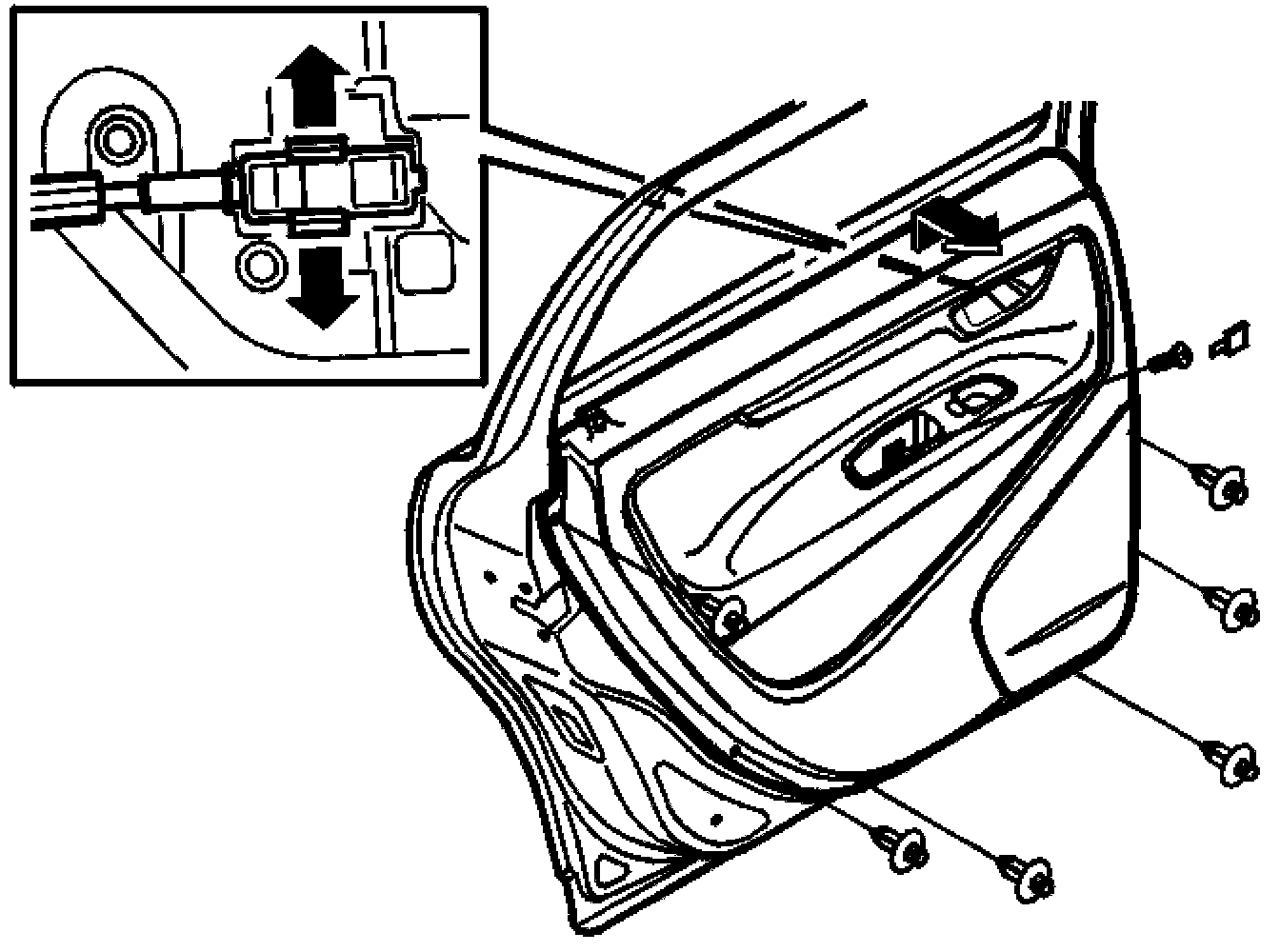

Mechanical Cable Internal Handle Rear Side Door, Replacing
Remove the door panel.
Unhook the mechanical cable at the lock.
Open the catches.
Lift out the mechanical cable.
Install:
In reverse order.
