Road Traffic Information (RTI)

Signal Specification, RTI

Connecting the breakout box and checking the ground terminal

NOTE: Before taking readings, the breakout box must be connected and the ground terminal must be checked.

Definitions

DC voltage in volts (V) Ulow = Ground, shield ground
Ubat = Battery voltage

RTI control module

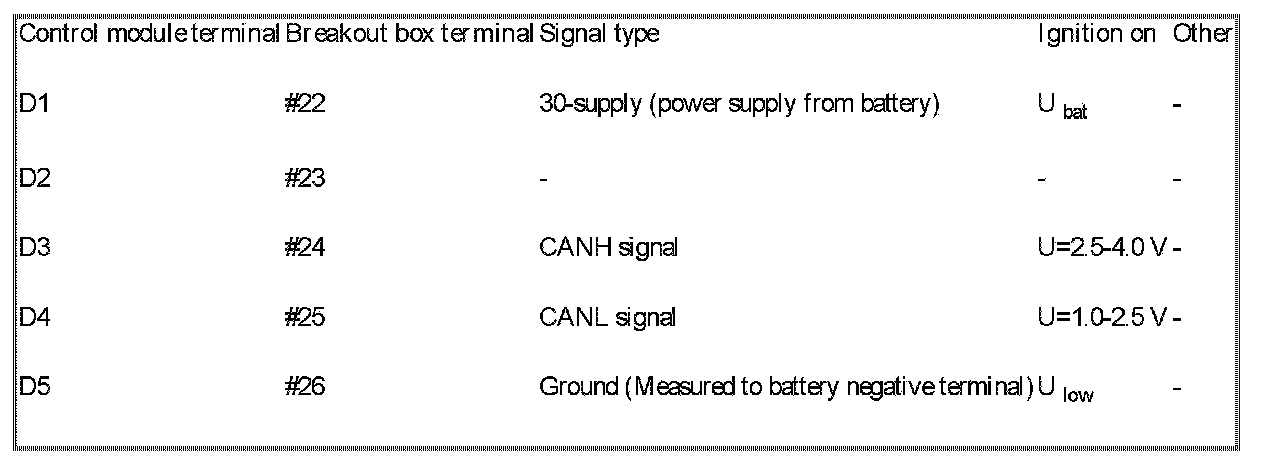

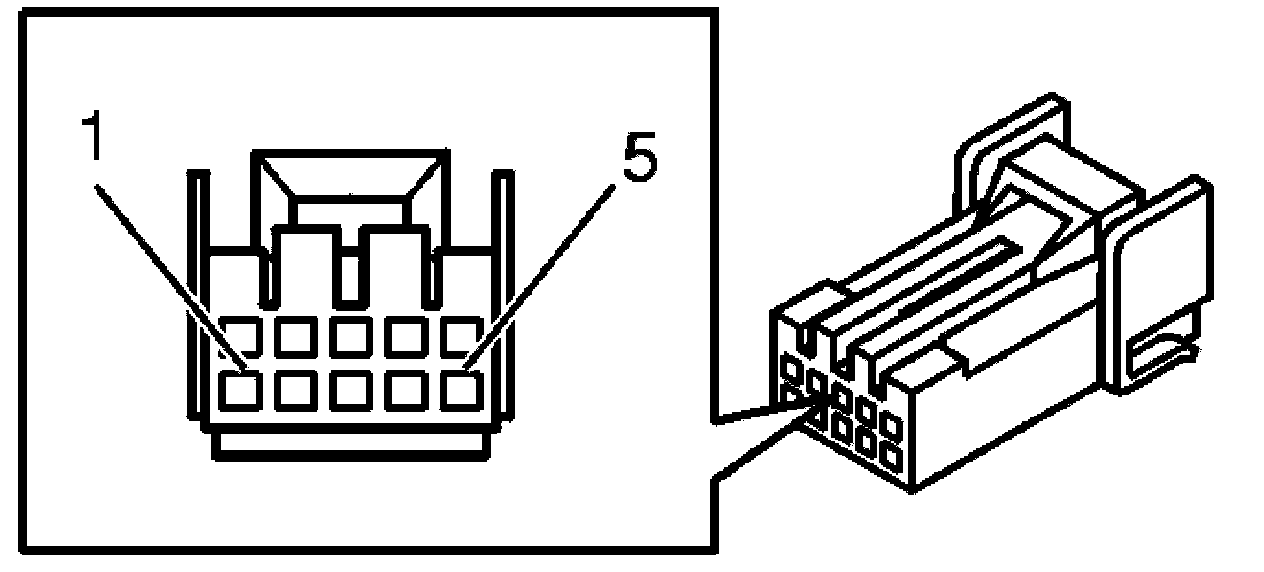

The road and traffic information (RTI) control module terminals D1-D5 correspond to terminals #22-#26 on the breakout box.

RTI control module (to TV receiver)

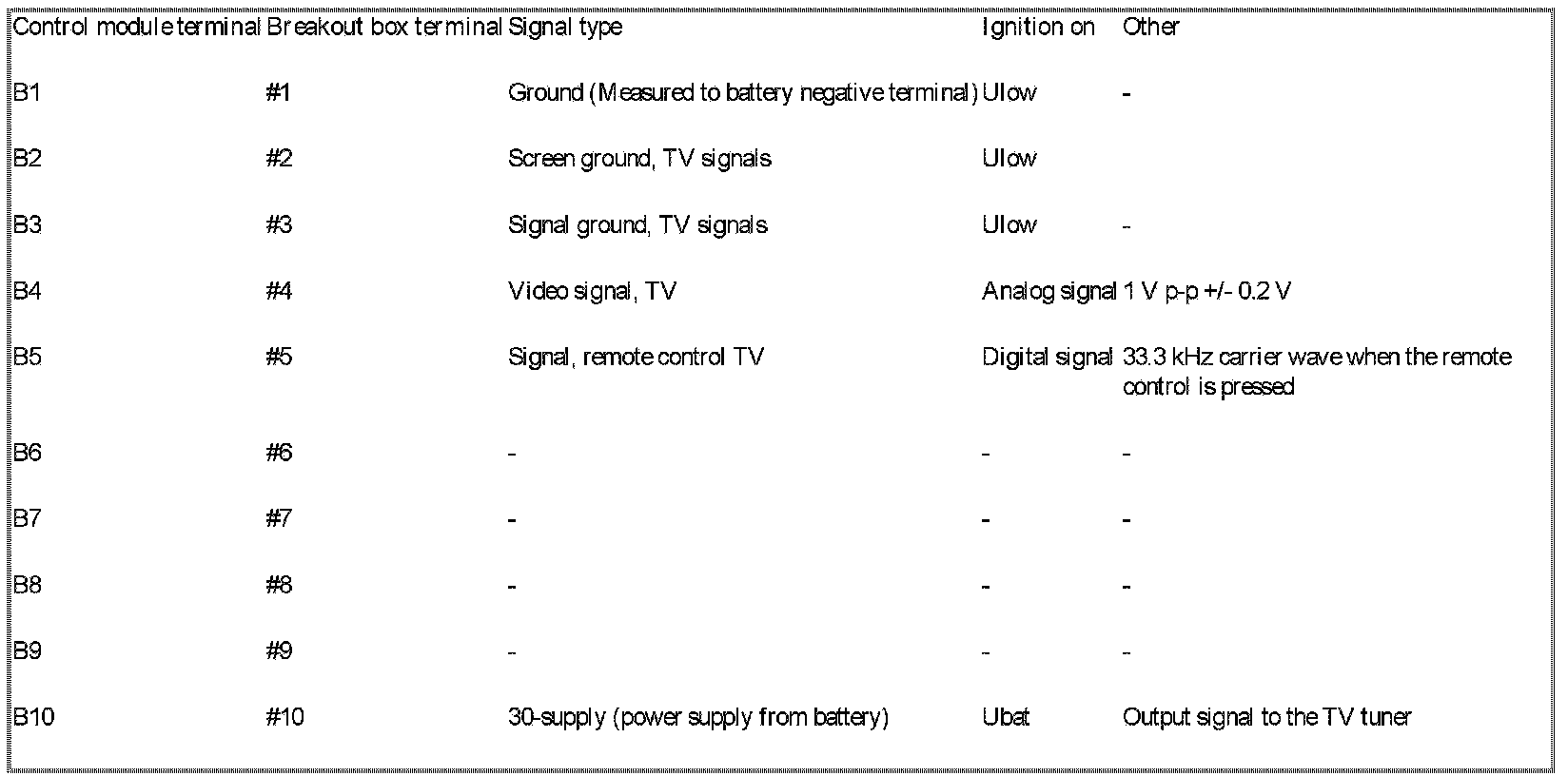

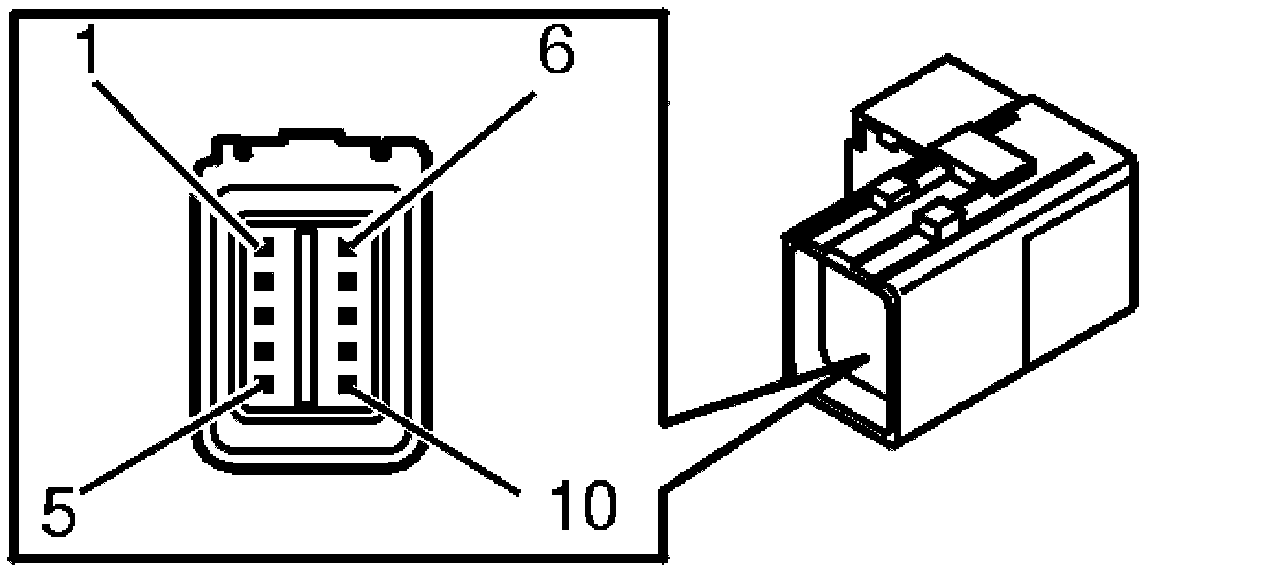

The RTI control module terminals B1-B10 correspond to terminals #1- #10 on the breakout box.

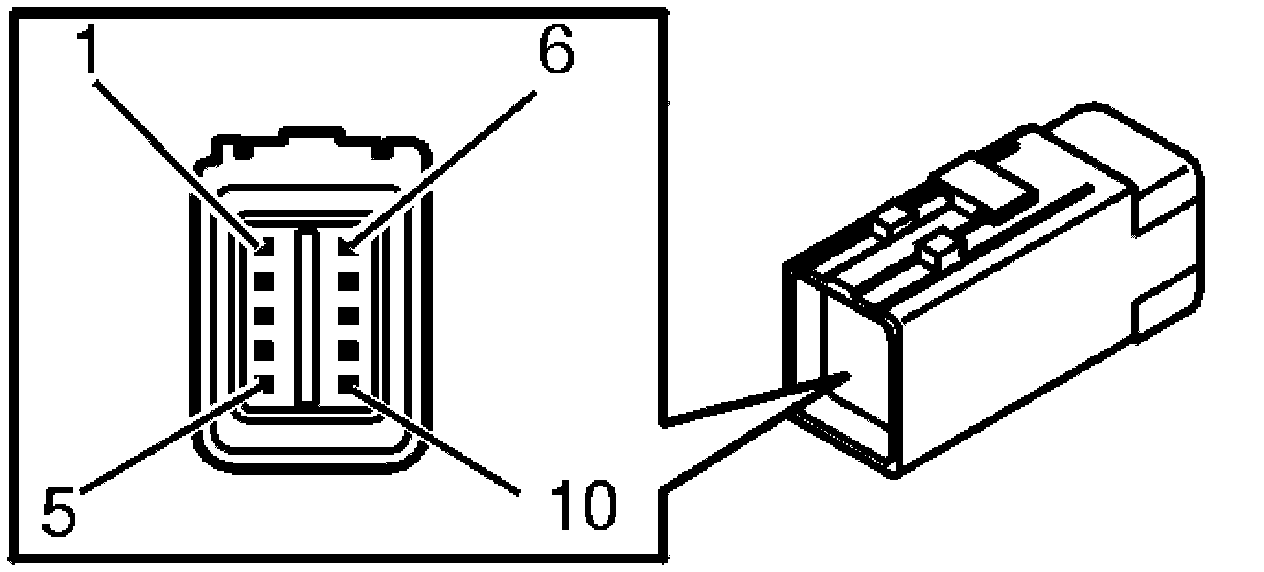

RTI control module (to display)

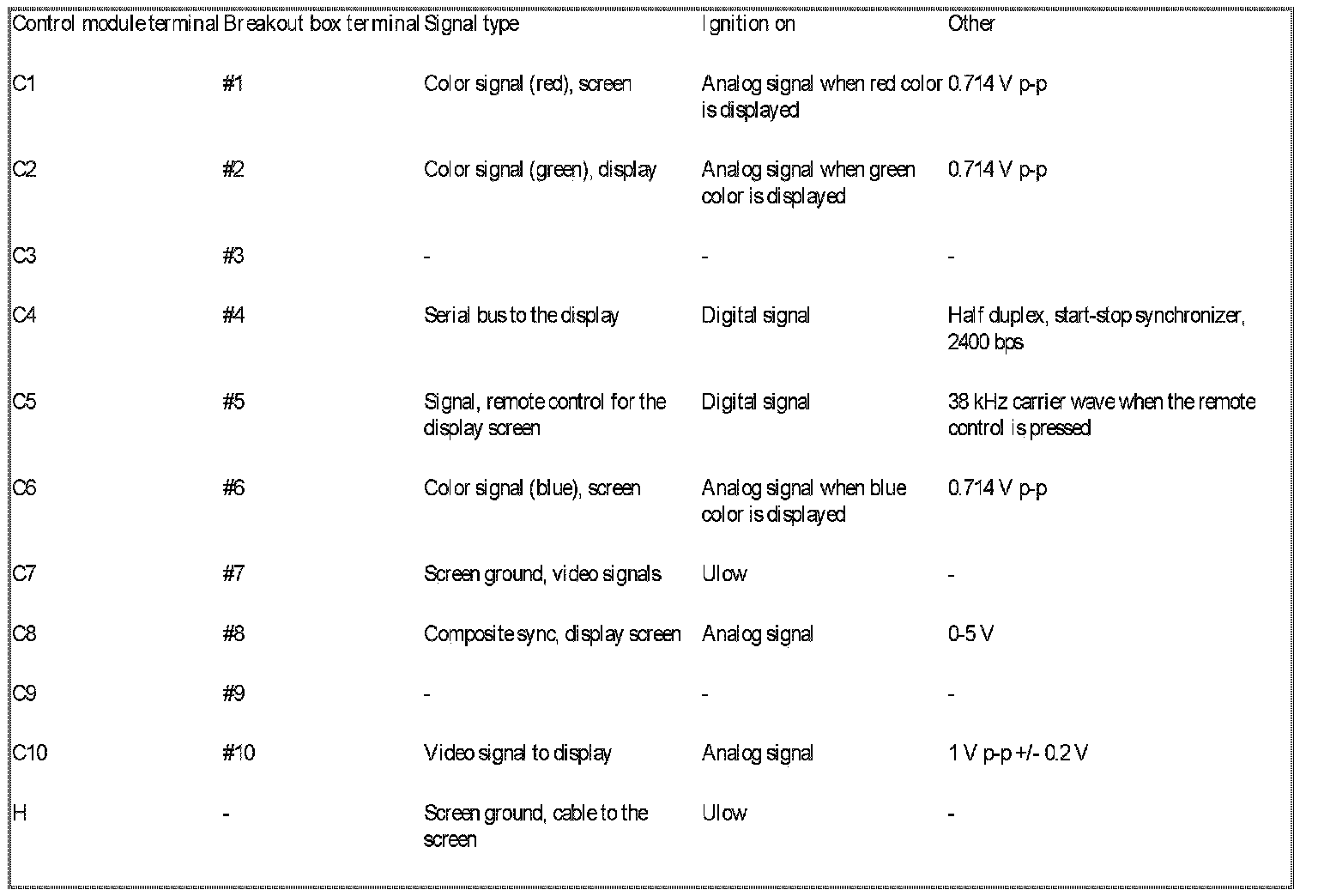

The RTI control module terminals C1-C10 correspond to terminals #1- #10 on the breakout box.

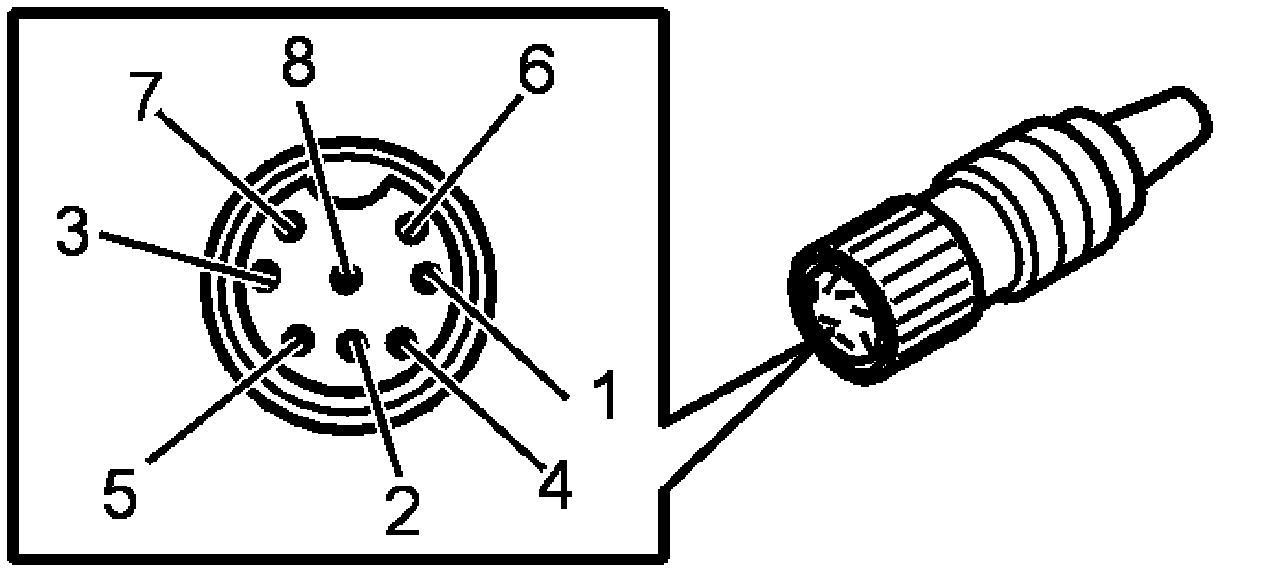

RTI control module (to audio unit)

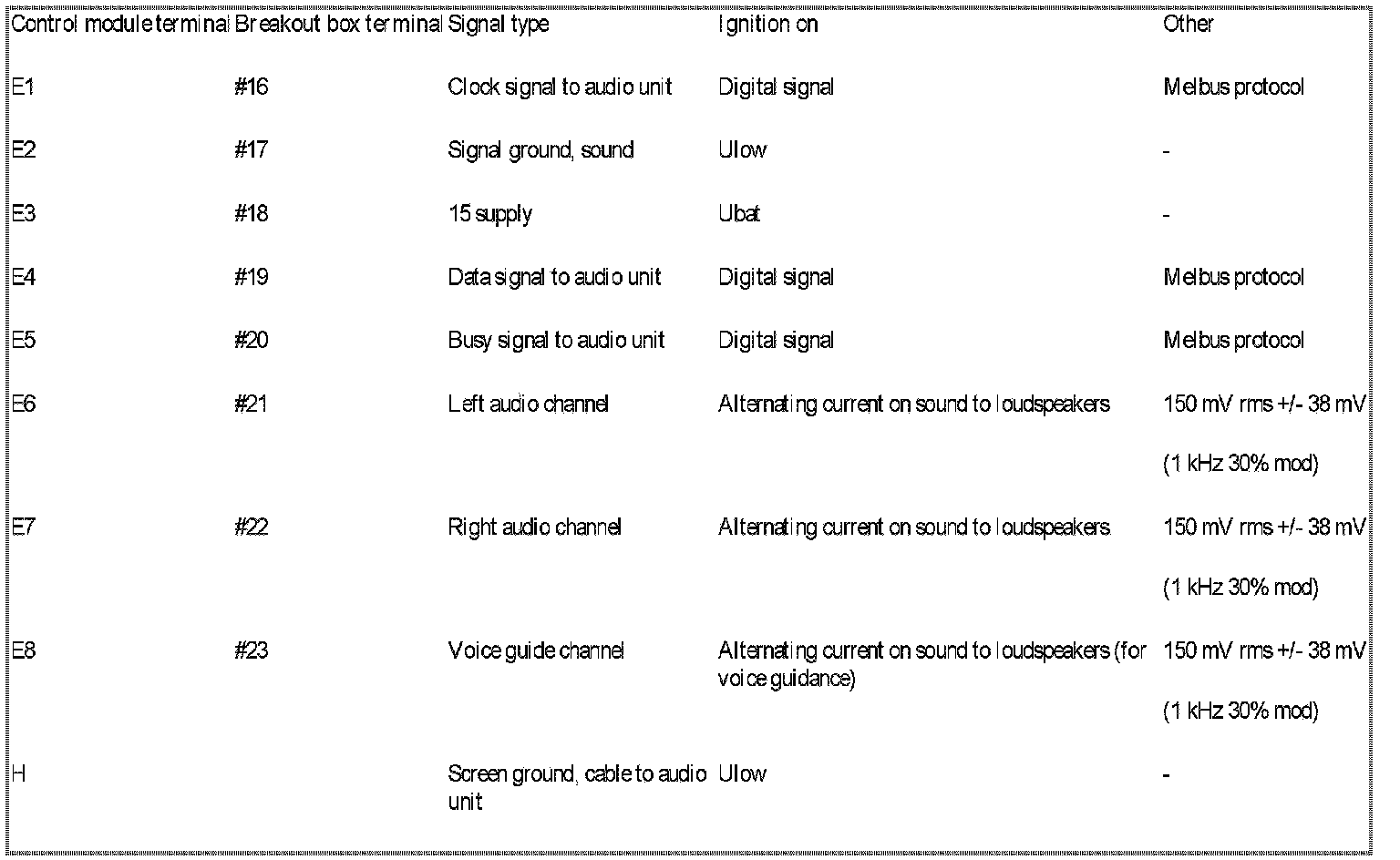

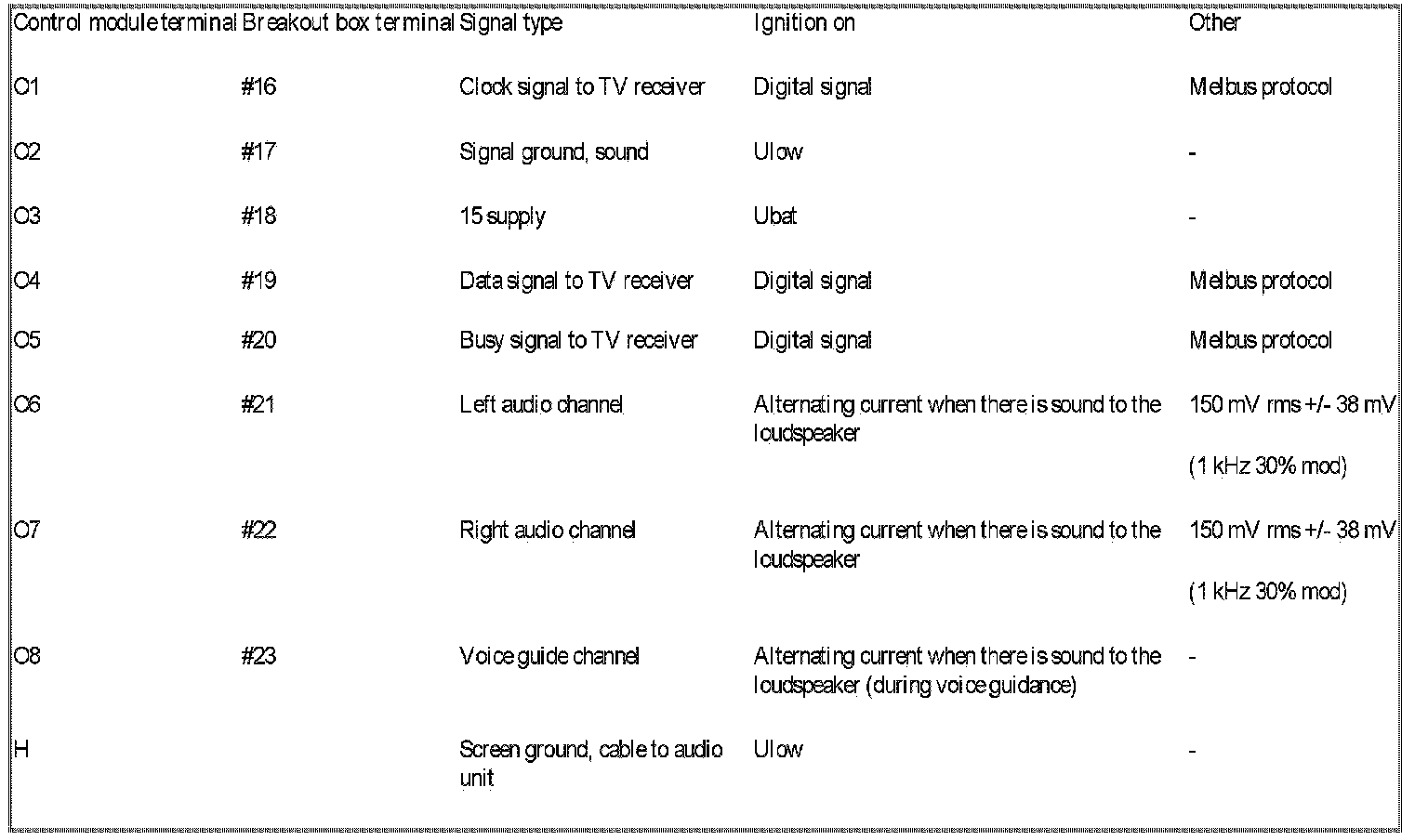

The RTI control module terminals E1-E8 correspond to terminal #16- #23 on the breakout box.

RTI control module (to TV receiver)

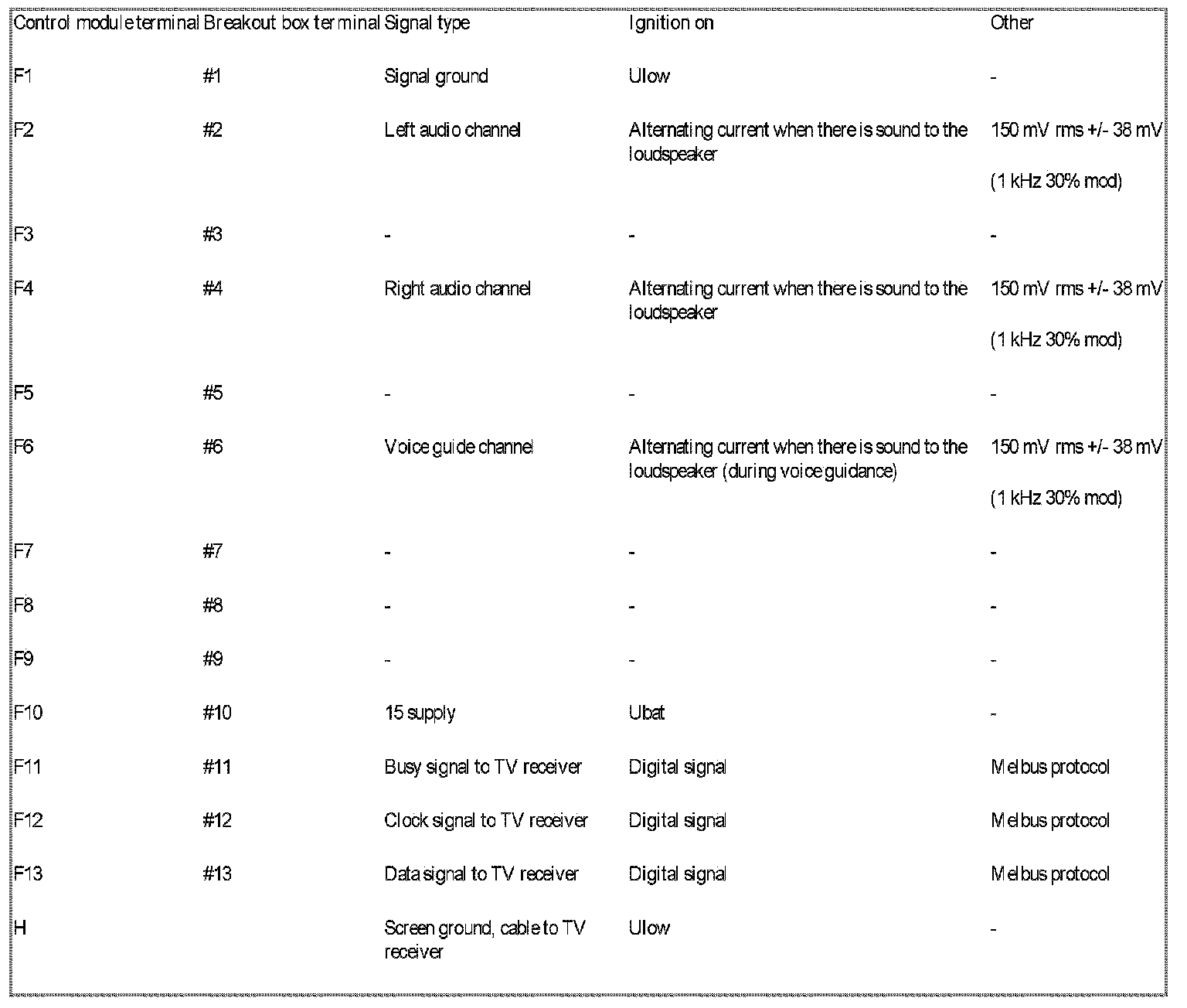

The RTI control module terminals F1-F13 correspond to terminals #1- #13 on the breakout box.

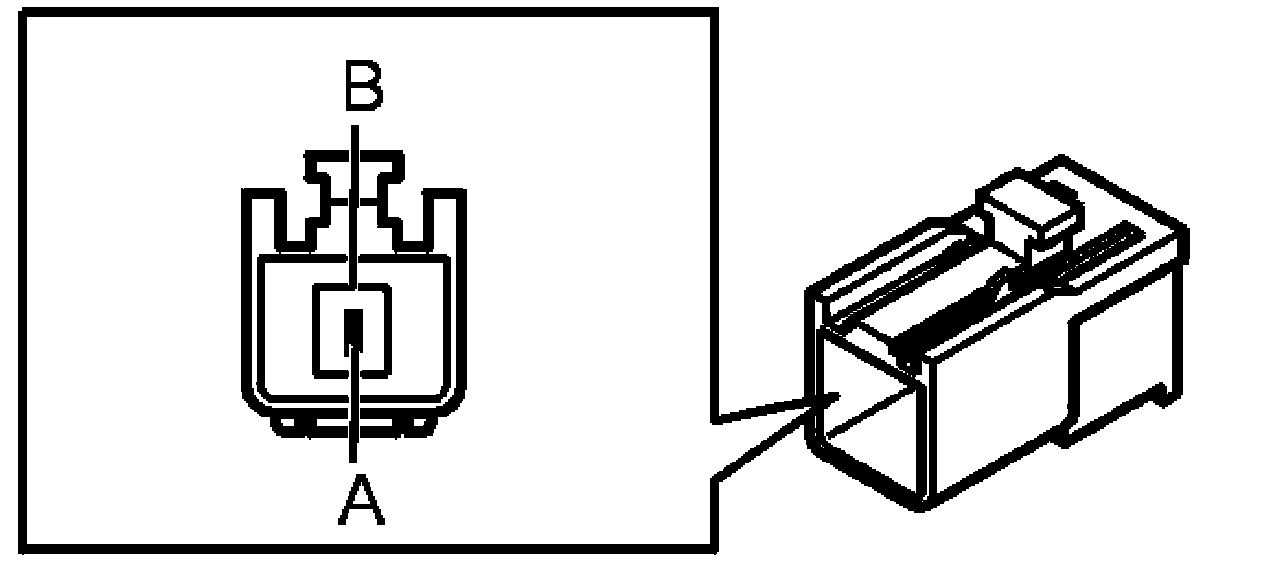

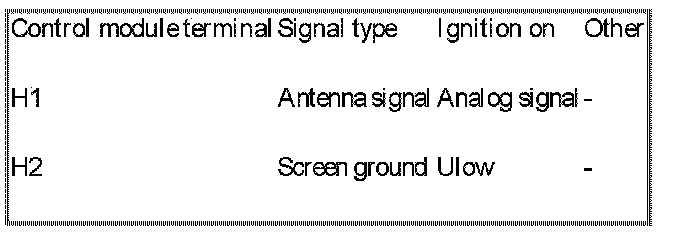

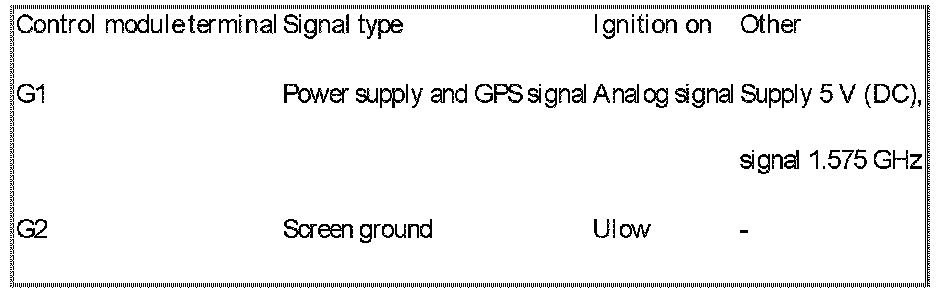

RTI control module (to GPS antenna, gray connector)

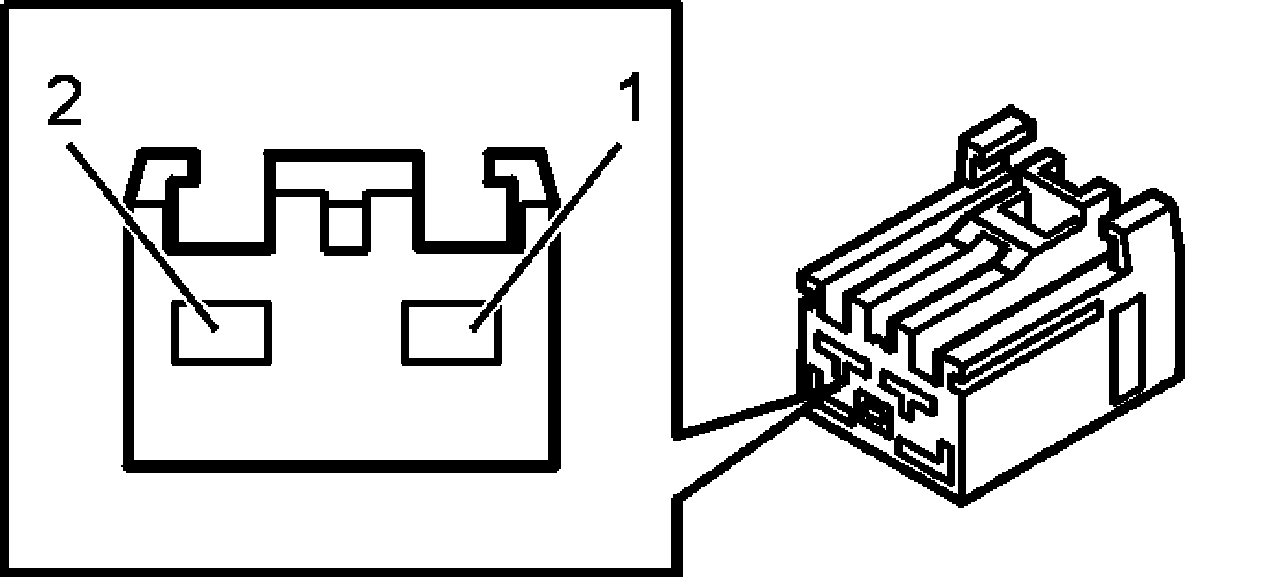

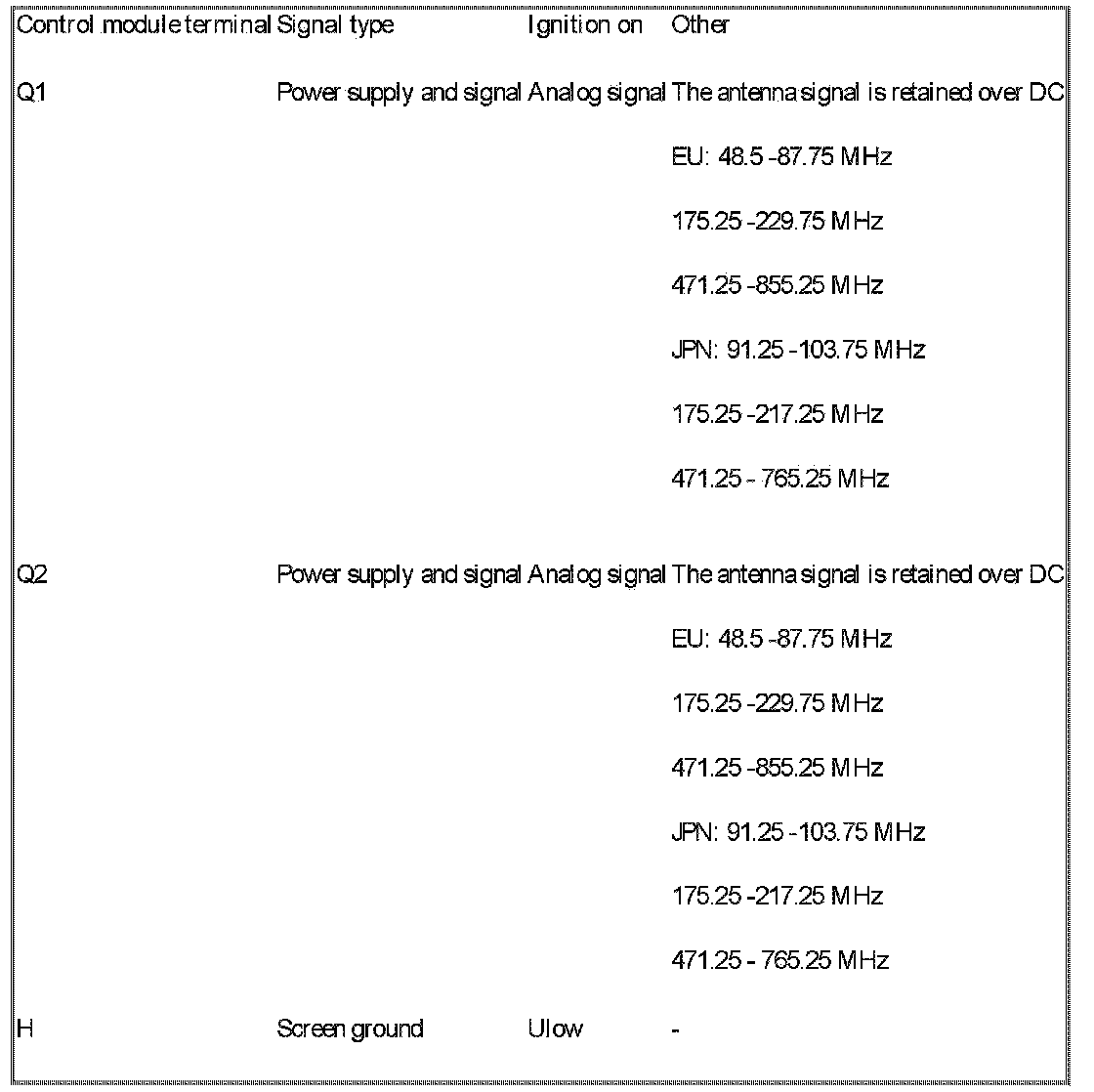

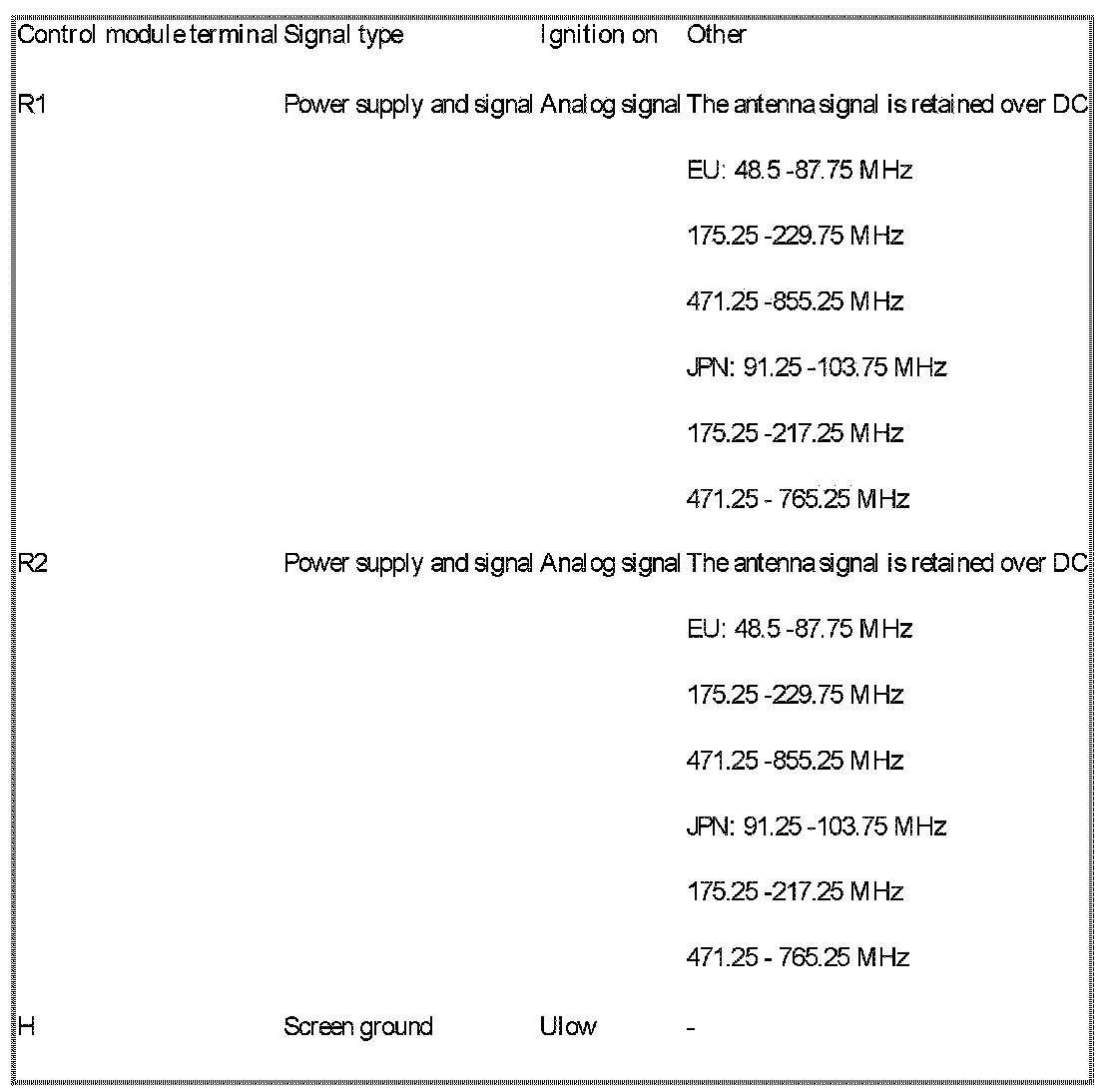

RTI control module (to TMC (FM-MPX) antenna, brown connector)

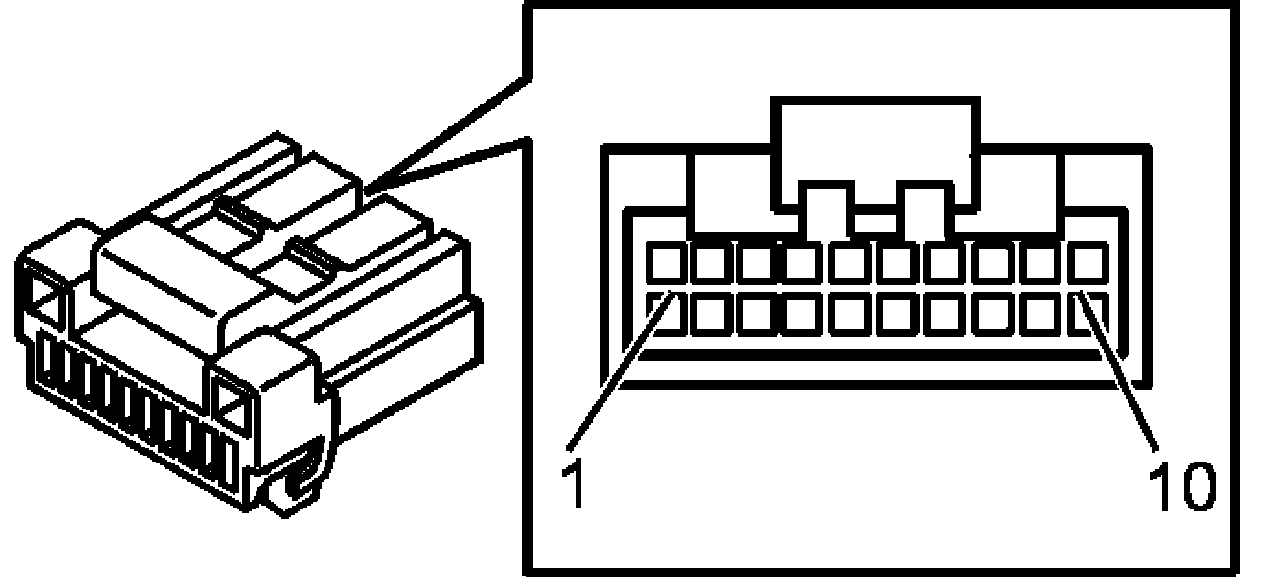

Display (to the road traffic information (RTI) control module)

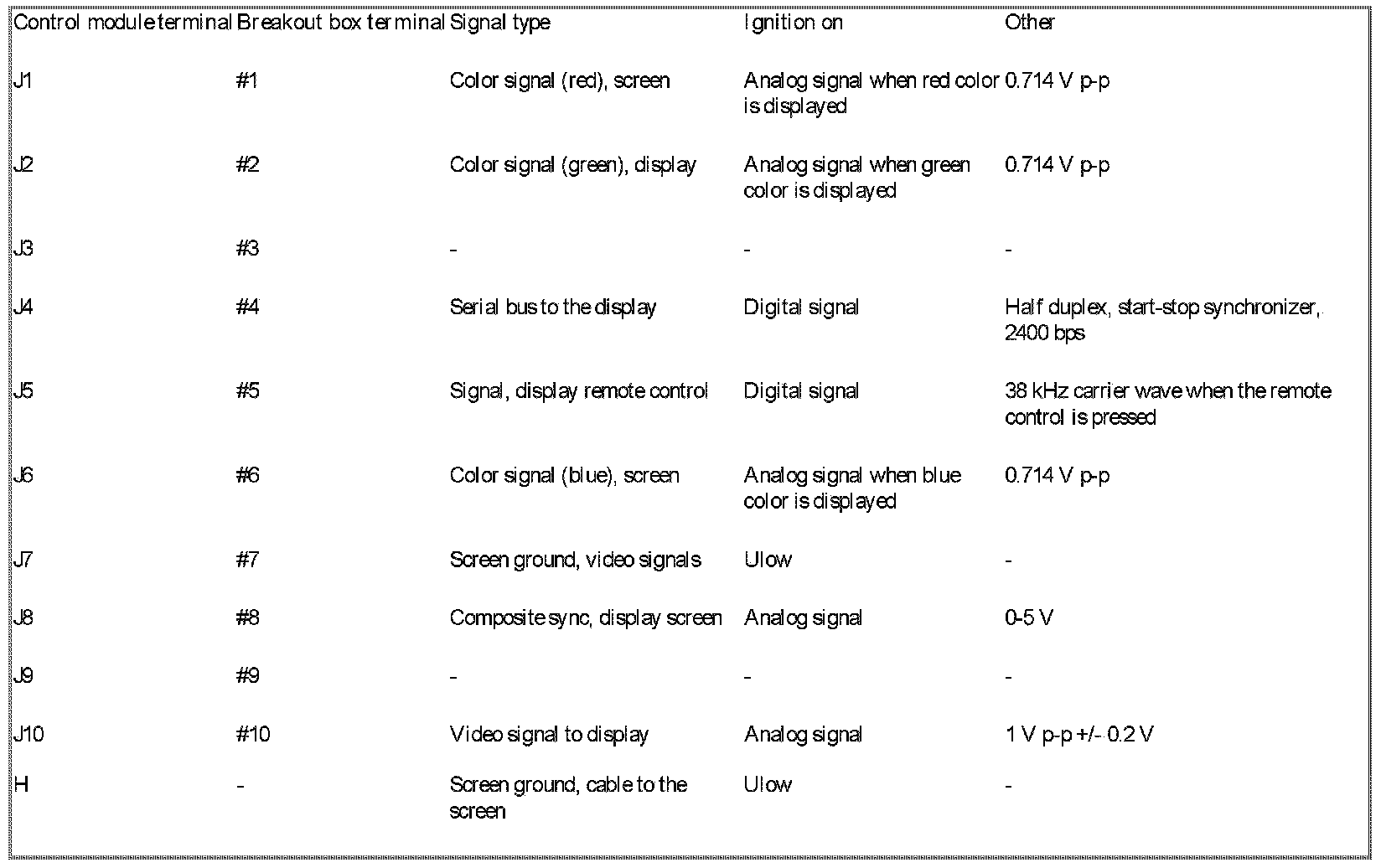

Display terminals J1-J10 correspond to terminals #1-#10 on the breakout box.

Display

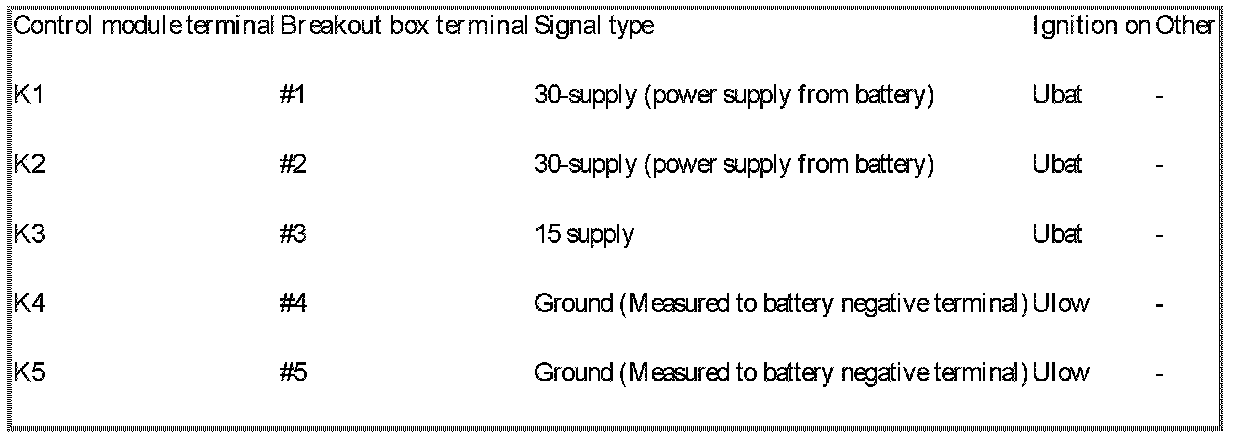

Display terminals K1-K5 correspond to terminals #1-#5 on the breakout box.

TV receiver (to RTI control module)

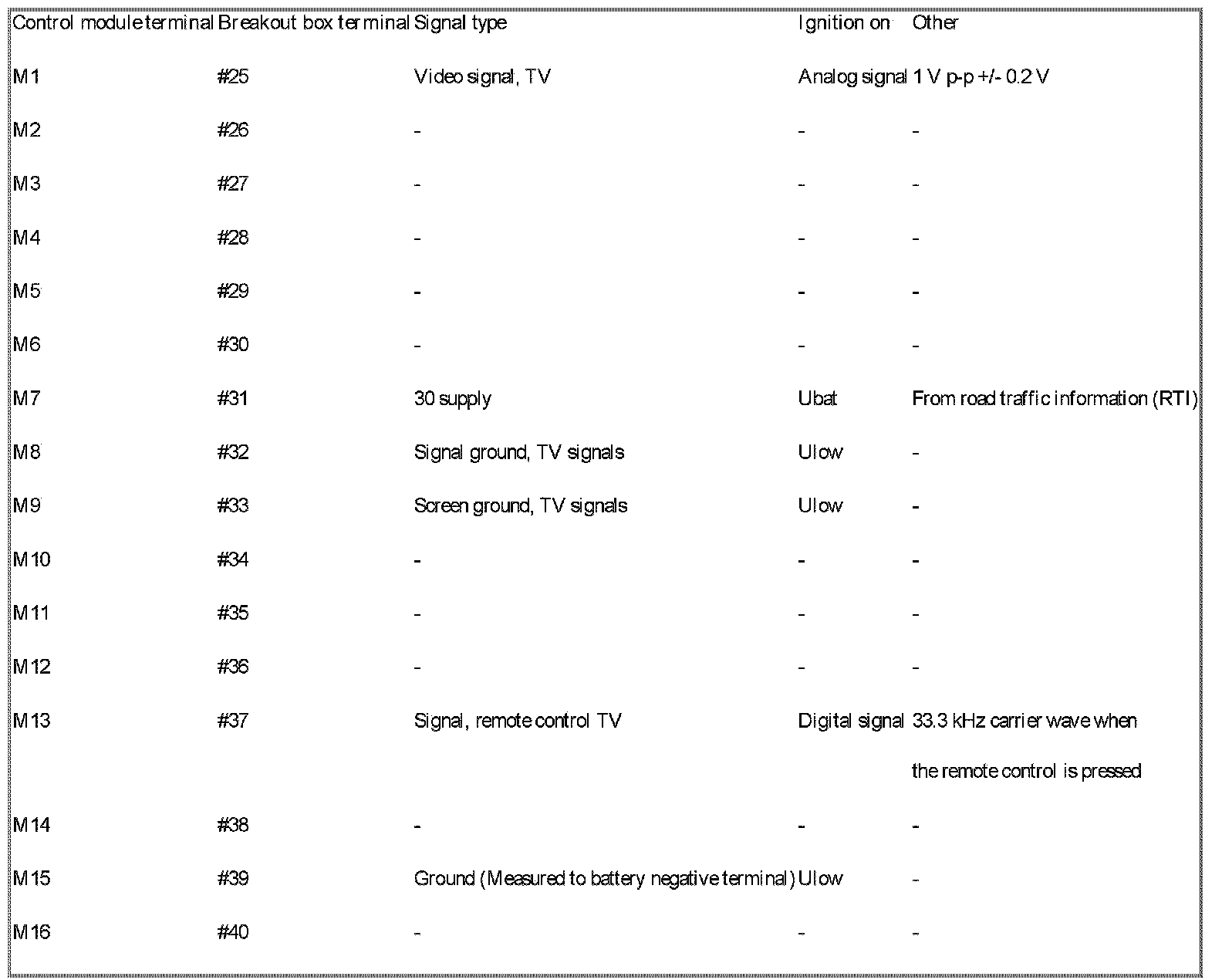

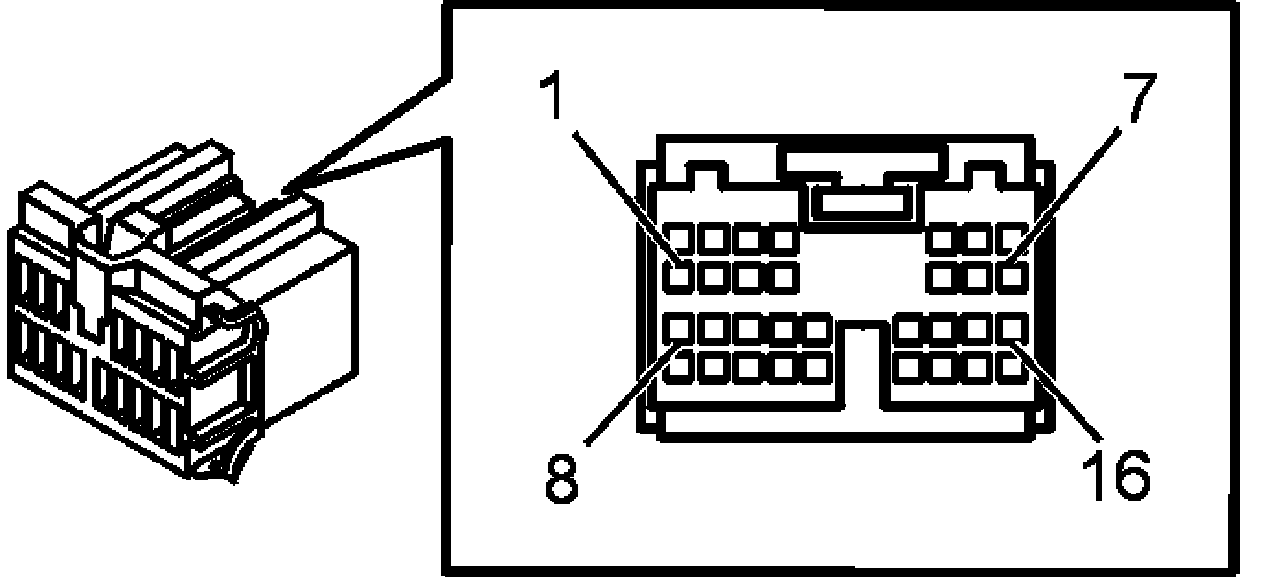

TV receiver terminals M1-M16 correspond to terminals #25-#40 on the breakout box.

TV receiver (to the video)

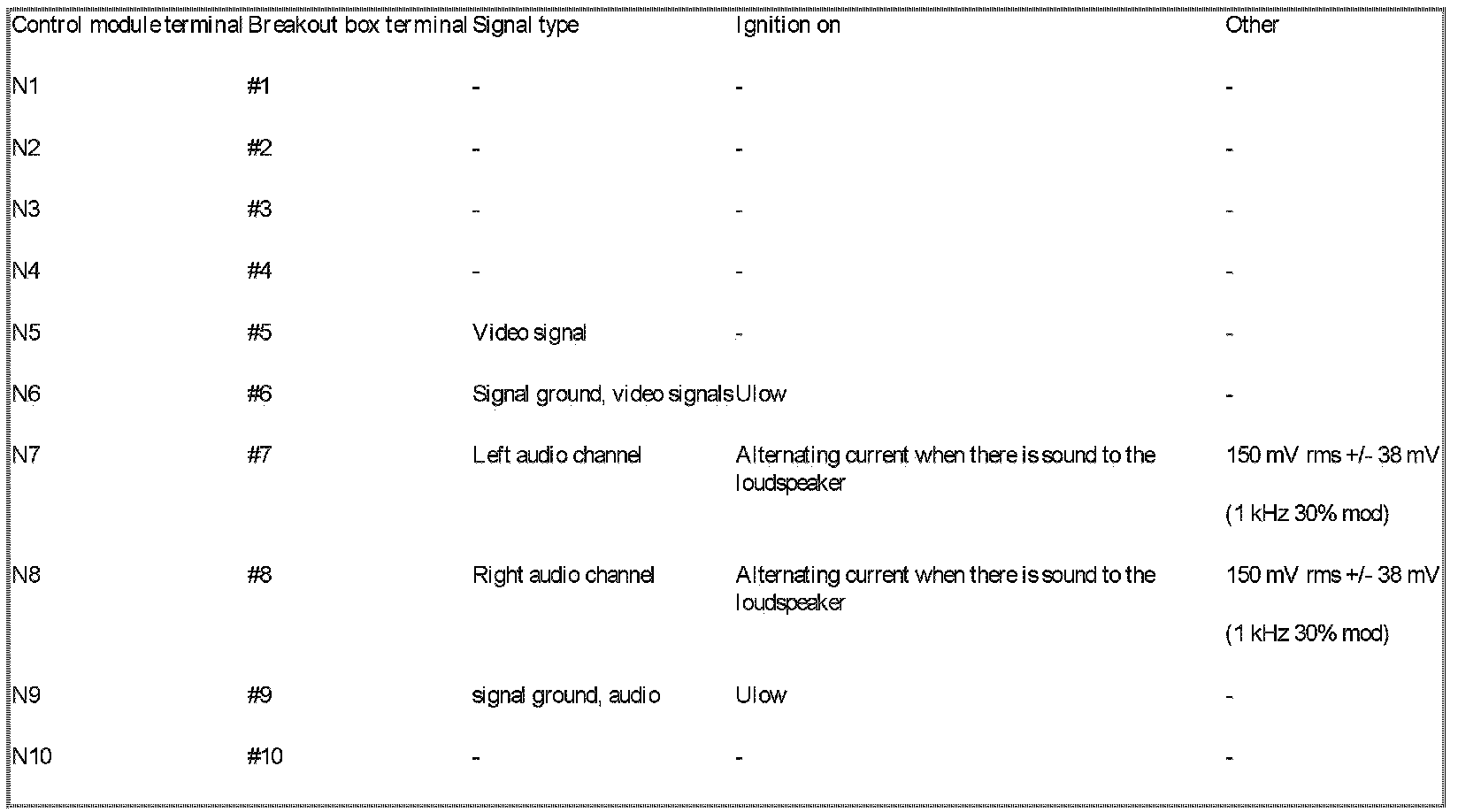

TV receiver terminals N1-N10 correspond to #1-#10 on the breakout box.

TV receiver (to RTI control module)










TV receiver terminals O1-O8 correspond to terminals #16 - #23 on the breakout box.

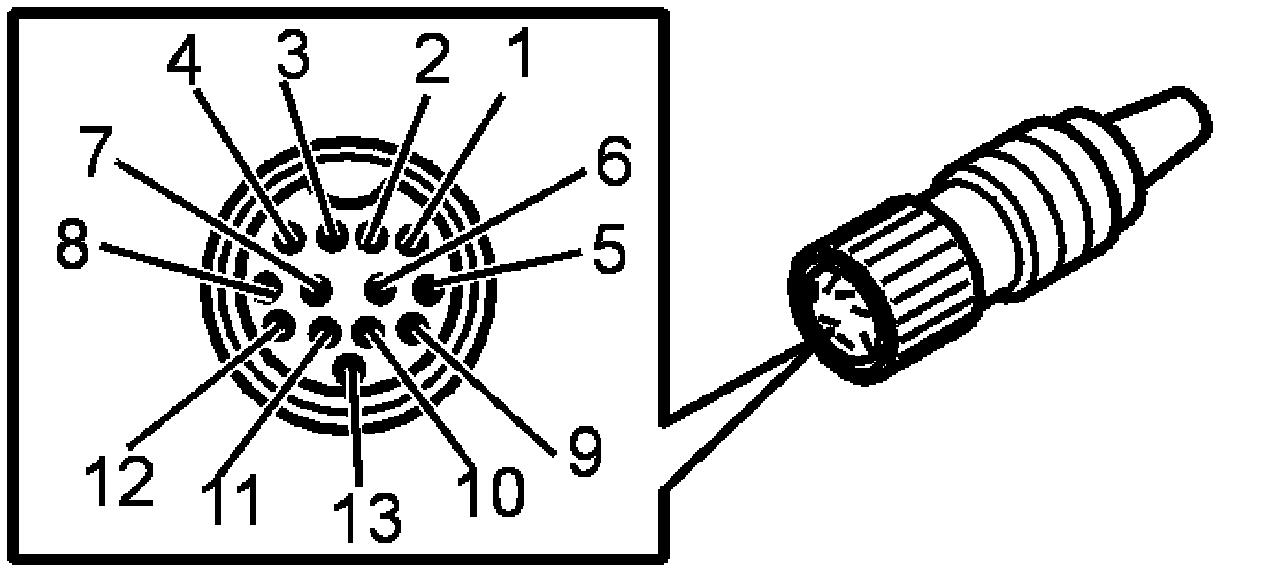

TV receiver (to CD player)

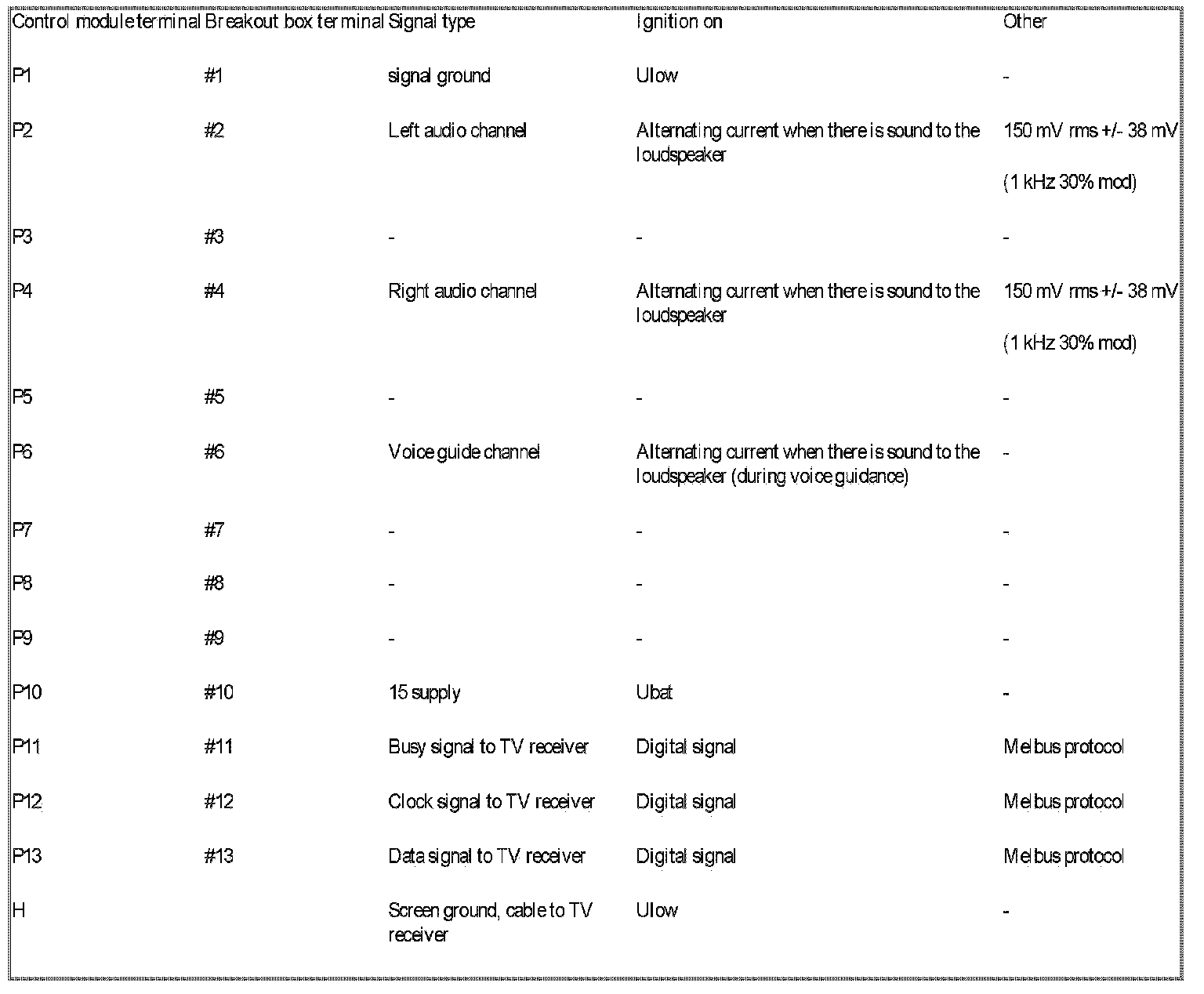

TV receiver terminals P1-P13 correspond to terminals #1-#13 on the breakout box.

TV receiver (to TV tuner A)










TV receiver (to TV tuner B)
