Design and Function

Design

Antenna
The audio module (AUM) has an antenna system for AM and FM. This consists partly of an AM antenna and partly of a dual antenna system for FM (Diversity reception). The dual antenna system is used to reduce Multipath interference. One antenna is integrated in the rear windshield (left-hand rear side window V70/V70XC). The other antenna is integrated in the rear bumper. The signals from the antennae are amplified or adjusted by each individual antenna amplifier.

External amplifier






The 4X50W amplifier is positioned under the right-hand front seat. It is used to amplify the audio output signal. The external amplifier is an option for the HU-4XX and HU-6XX. The amplifier is installed as standard with the HU-8XX.

Bass speakers
An extra bass speaker with an integrated amplifier (option) is available as an option on the V70/V70XC. This is mounted in the cargo compartment and supplemented with two loudspeakers in the D-posts.

CD changer (option)

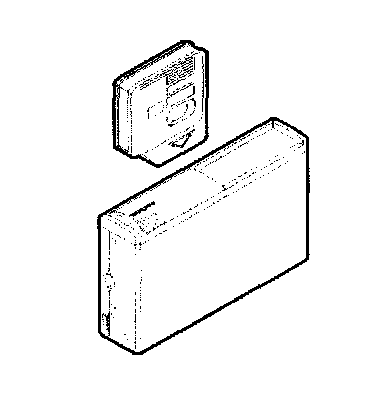

The CD changer is mounted on the left-hand side of the cargo compartment. The changer can take ten discs in a special magazine. The CD changer has disc selection, next/previous track, and random play (RND - random). The CD changer is controlled by the audio module (AUM) and is connected to the control module by connectors. The signals between the audio module (AUM) and the CD changer are transmitted via Melbus communication.

The V70/V70XC cannot be equipped with both the road traffic information system (RTI) and the CD changer.

Remote control

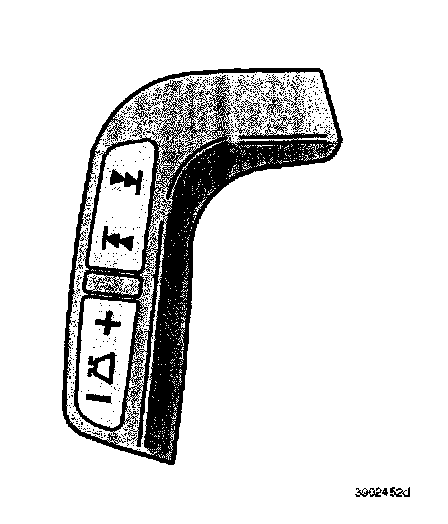

Remote control from the key pad on the steering wheel is available as both an option and as standard equipment depending on the market. The keypad is positioned on the right-hand side of the steering wheel and is connected to the steering wheel module (SWM) via serial communication. It is possible to control the volume (increase-decrease) and change the preprogrammed radio stations via the keypad. The buttons are used to select a track when playing a CD, cassette or Mini-Disk. The steering wheel module (SWM) communicates with the audio module (AUM) via the Controller area network (CAN).

Audio remote control (option)
Remote operation from a separate wireless remote control is available as an option. This can be used to control the volume (increase-decrease) and change the preset radio stations. The buttons are used to select tracks when playing a CD, cassette or Mini-Disk and to change the CD when using the CD changer. A particular frequency can be searched for, radio stations stored in the presets, Autostores made and sources stored.

The remote control is fitted with two AAA (LR03) batteries.

Function

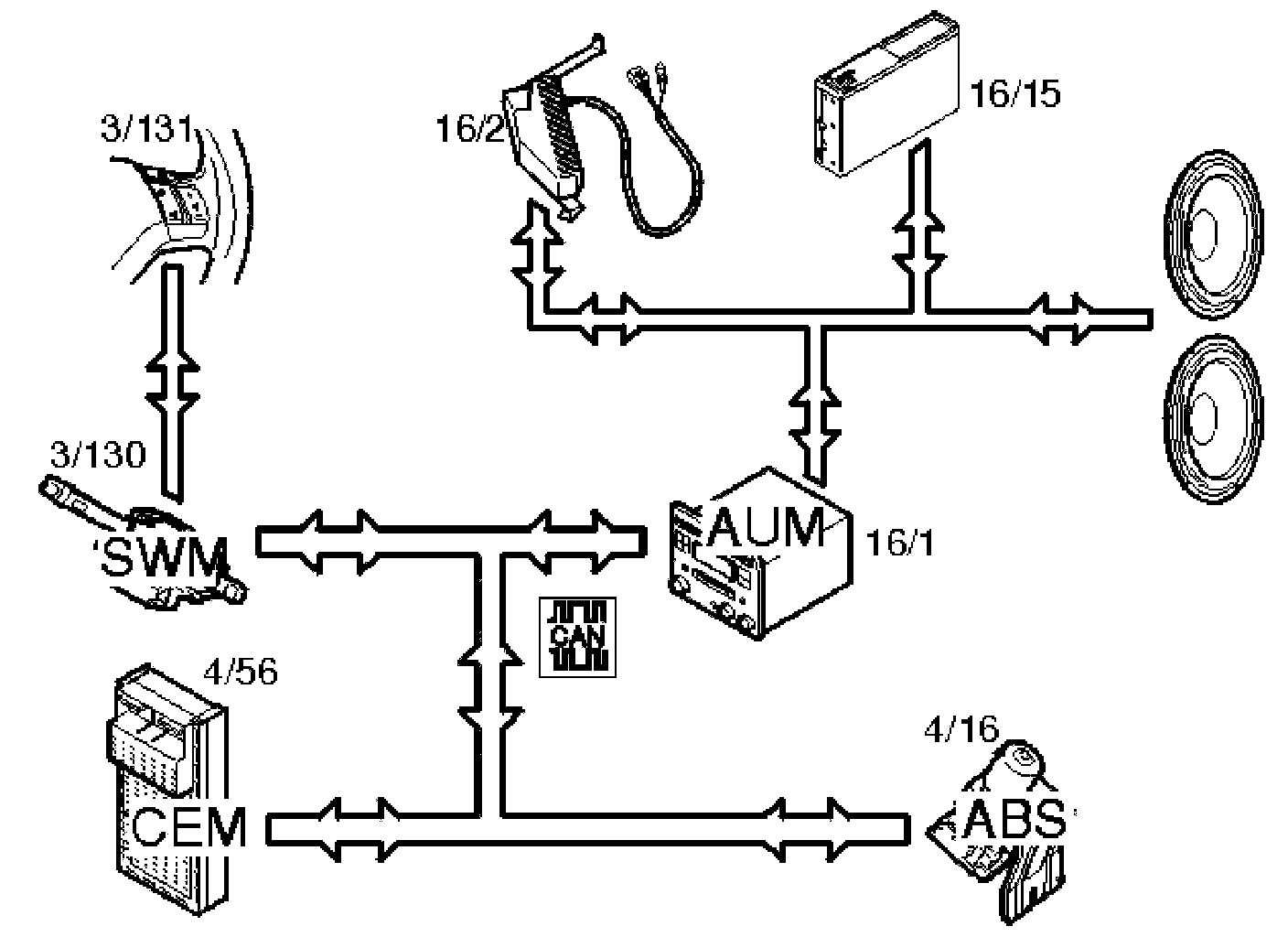

The audio module (AUM) functions as a sound unit in the car and is also connected to other control modules on the Controller area network (CAN). The audio module (AUM) receives the vehicle speed signal via the Control area network (CAN). Volume increases with speed (if the function is selected; the function can be switched off).

If a factory-installed carphone (option) is installed, the audio module (AUM) is muted during telephone calls.

If an accessory electronic module (AEM) is installed, the audio module (AUM) is muted if either a handsfree telephone is used (accessory) or back-up gear is selected if the car has a back-up warning system (accessory).

If the car has the Road Traffic Information system (RTI) (option), voice information is played back through the existing loudspeaker.

The keypad for remote operation (option) on the steering wheel is directly connected to the steering wheel module (SWM) via serial communication. The remote control keypad is on the right-hand side of the steering wheel. It is possible to control the volume (increase-decrease) and change the preprogrammed radio stations via remote operation. The buttons are used to select a track when playing a CD, cassette or Mini-Disk.

The steering wheel module (SWM) communicates with the audio module (AUM) via the Controller area network (CAN).
