Global Positioning System Antenna: Service and Repair

Antenna, GPS, replacing

Removal




- Remove Driver information module (DIM), replacing Driver Information Module (DIM), Replacing

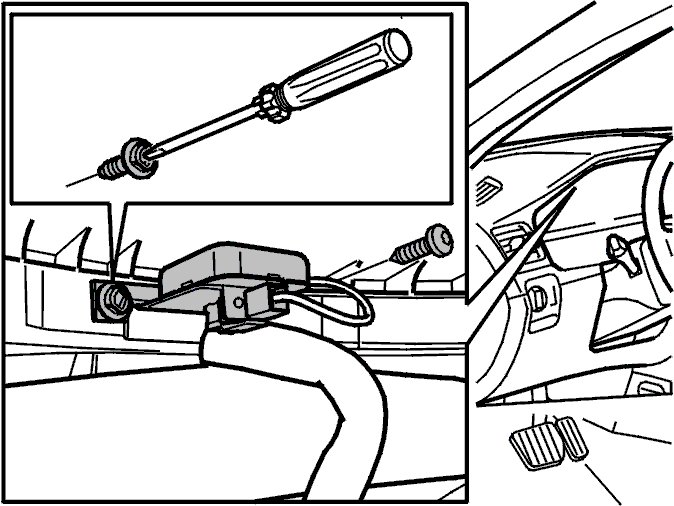

- Unscrew the antenna (also secured with a plug)
- Disconnect the connector.

Installation

- Connect the connector
- Screw the antenna into place
- Install Driver information module (DIM), replacing Driver Information Module (DIM), Replacing.
