Cars equipped with SRS/SIPS (Airbag)

Warning! Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent:1. Personal injury2. Damage to or malfunction of the SRS/SIPS system.Work on the SRS/SIPS systems or related components must be carried out by an authorised Volvo workshop.

Is the car equipped with SRS/SIPS?
Cars with SRS are most easily recognised by the letters SRS on the steering wheel pad. If the car also has an airbag on the passenger side, the letters SRS are embossed on the dashboard above the glove compartment. SIPS decals are located on the seat panels and the windscreen.

Do not damage the SRS wiring!
Do not trap, fray, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.

Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to the SRS service information for information on carrying out such work. This is to prevent damage.

SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorised Volvo workshop.

SRS collision sensor control module






S60 / V70 (00-) / S80
The collision sensor control module is located on the transmission tunnel in the centre console, beside the parking brake. The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery, within these areas. The panels must be able to open in the correct way and at the right time.






WARNING!
The ignition must be in position "0" and the key removed from the ignition if any connector in the SRS system is to be disassembled. Then wait at least five minutes. Then disconnect the battery negative lead before disassembling any of the connectors.






TV/DVD

Note! This accessory requires software unique to the car.




- Turn the ignition key to position 0. Remove the ignition key.

Note! Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

- Disconnect the battery negative lead.





Remove:

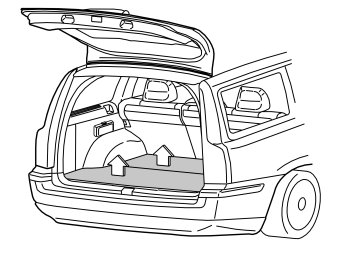

- lift up the two floor hatches. Pull the floor hatches backwards and remove
- the loose insulation panel in the front edge of the cargo compartment.




- Turn the clip on the left and right-hand sides of the storage box a quarter turn. Remove the storage box from under the rear floor hatch. Lift out the box.




- Remove the rear foldable side panels on the left and right-hand sides.




- Fold the left and right-hand rear seat cushions forward (1)
- Fold the left and right-hand rear backrests forward (2).




- Pull the upper edges of the left and right-hand side cushions backwards and lift the cushions. Remove the cushions.

Applies to illustration A




- Remove the cover and the screw from the front edges of the left and right-hand side panels in the cargo compartment. Remove the left and right-hand side panels
- Pull the top edge of the panel inwards until the clips release
- Fold the panel inwards. Lift the panel out.

Applies to illustration B





Remove:
- the two plastic plugs (1)
- the insulation panel.

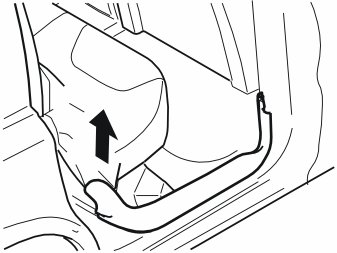

- Pull the sill trim panel straight up until the two clips in the rear edges release. Remove the sill trim panel in the right and left rear doors by the rear edges.




- Remove the C-post panels on the left and right hand sides. Pull the C-post panel inwards in the direction of the arrows until the clips release as illustrated.




- Remove the screw from the left and right-hand side panels in the cargo compartment. Pull the panels downwards starting at the rear edge. Remove the left and right-hand side panels
- Pull downwards until all the clips release.

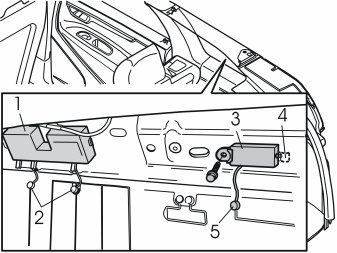

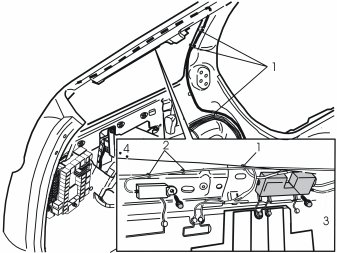

- Remove the connector (1) for the AM / FM aerial amplifier (2) above the left-hand rear side window
- Remove the switches (3) for the aerial amplifier
- Carefully remove the screw (4) that holds both the gas generator for the inflatable curtain and the aerial amplifier
- Press in the catches on the short sides of the aerial amplifier. Remove the aerial amplifier.

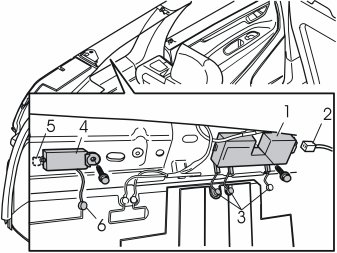

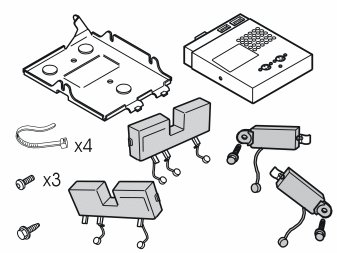

- Take the AM / FM / TV aerial amplifier (1) from the kit. Install the aerial amplifier in the same position as the old aerial amplifier
- Connect the existing connector (2) to the aerial amplifier
- Connect the switches (3)
- Install the small TV aerial amplifier (4) from the kit. Insert the locating pin (5) in the hole. Tighten using the screw
- The front section of the D-post panel must be bent down a little. This is so that the aerial amplifier can be installed. Do not damage the panel
- Connect the switch (6).




- Carefully remove the rear screw for the gas generator for the right-hand side inflatable curtain

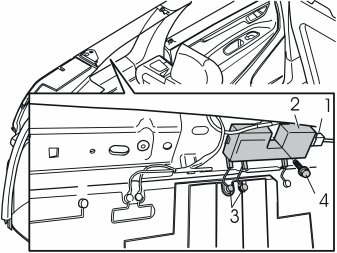

- Install the TV aerial amplifier (1) (from the kit) so that the mounting for the gas generator rests above the aerial amplifier mounting
- Tighten the aerial amplifier
- Connect the switches (2)
- Install the small TV aerial amplifier (3) from the kit. Insert the locating pin (4) in the hole. Tighten using the screw
- Connect the switch (5).




- Bend up the insulation panels (1) towards the reverse of the rear backrest

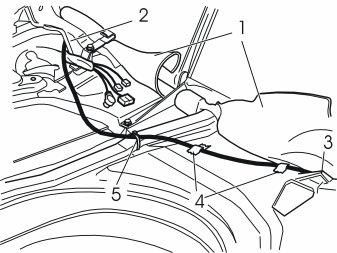

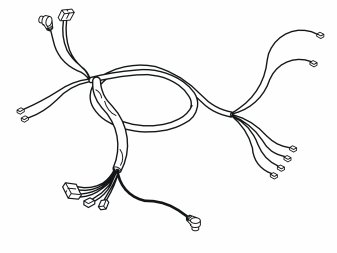

- Position the cable harness (from the kit) as illustrated. The junctions are situated on the section of cable harness which is routed on the left-hand side of the car. Ensure that the junction with the green 7-pin connector, the two grey connectors and the DIN connector are positioned as illustrated
- Route the left-hand cable harness under the strut (2) for the wheel arch in front of the left-hand shock absorber mounting
- Route the cable harness under the insulation panel under the left-hand rear backrest. Continue to the front edge of the left-hand rear wheel arch
- Route the right-hand cable harness in front of the strut (3) for the right-hand wheel arch. Continue in the same way as for the left hand cable harness to the front edge of the wheel arch
- Secure the cable harness to the cargo compartment floor and at the cable duct. Use two pieces of butyl tape (4) and a tie strap (5) from the kit.




- Route the right-hand cable harness from the front edge of the wheel arch along the C-post and the upper edge of the rear side window. Continue along to the relevant aerial amplifier

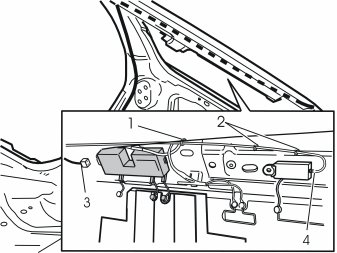

- Secure the cable harness to the existing wiring and the plastic hose. Use tie straps (1) from the kit. Also secure at the cantrail using pieces of butyl tape (2). Secure the wiring to prevent catching or rubbing
- Connect the wiring (3, 4) to the relevant aerial amplifier.




- Route the left-hand side cable harness from the front edge of the wheel arch to the aerial amplifier at the top edge of the rear side window, and to the DVD reader
- Route the cable harness with the two single cables along the front edge of the wheel arch. Continue along the C-post and along the upper edge of the rear side window. Continue along to the relevant aerial amplifier
- Secure the cable harness at the existing wiring and the plastic hose. Use tie straps (1) from the kit. Also secure at the cantrail. Use pieces of butyl tape (2). Secure the wiring to prevent catching or rubbing
- Connect the wiring (3, 4) to the relevant aerial amplifier.

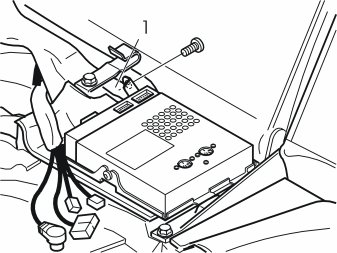

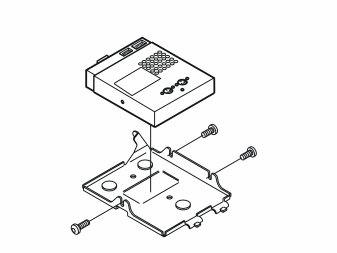

- Remove the four screws holding the DVD reader at the bracket
- Pull out the DVD reader
- Route the remaining section of the cable harness on the left-hand side: the seven pin cable with the green connector and the DIN-cable to the DVD reader.
Route the cable harness on top of the wheel arch under the insulation panel, through the hole in the bodywork and out through the bracket for the DVD reader to the DVD reader

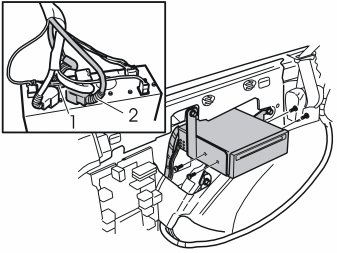

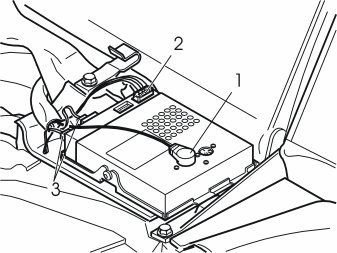

- Connect the green connector (1) to the DVD reader
- Connect the DIN cable (2) to the DVD reader
- Reinstall the DVD reader in the bracket. Tighten.

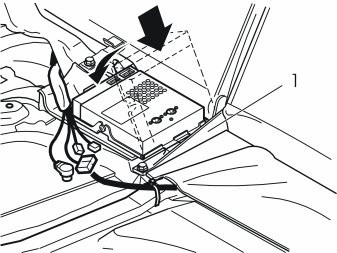

- Take the TV-receiver and bracket from the kit. Tighten the TV-receiver on the bracket. Use the three screws from the kit.




- Fold back both the carpet tabs
- Install the TV-receiver and the bracket into the bracket (1) for the rear seat backrest cushions. Insert the two lugs for the TV-receiver bracket into the corresponding holes in the bracket for the backrest cushions
- Fold down the bracket with the TV receiver towards the insulation panel.




- Tighten the bracket with the TV-receiver to the strut (1) for the left-hand wheel arch. Use the screw from the kit.




- Connect the DIN connector (1) to the TV receiver
- Connect the seven pin connector (2) to the TV receiver
- Connect the two 2-pin connectors (3) to the TV-receiver.

Reinstall:
- the C-post panels. Ensure that the no cables are trapped
- both the door sills at the rear edge
- the loose insulation panel
- the insulation panel over the DVD reader
- both side panels
- the rear folding side panels
- both roof panels.




- Turn the ignition key to position (II)
- Connect the battery negative lead
- Reinstall the storage box
- Reinstall both floor hatches
- Program the software using VCT 2000 according to the service information in VIDA.
