Antenna Kit Handsfree, Internal Antenna

Antenna Kit Handsfree, Internal Antenna

Cars Equipped With SRS/SIPS (Airbag)

WARNING: Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent:
1. Personal injury
2. Damage to or malfunction of the SRS/SIPS system.


Work on the SRS/SIPS systems or related components must be carried out by an authorised Volvo workshop.

Is the car equipped with SRS/SIPS?
Cars with SRS are most easily recognised by the letters SRS on the steering wheel pad. If the car also has an airbag on the passenger side, the letters SRS are embossed on the dashboard above the glove compartment. SIPS decals are located on the seat panels and the windscreen.

Do not damage the SRS wiring.
Do not trap, fray, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.

Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear.

SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorised Volvo workshop.

S60 / V70 (00-) / S80
The collision sensor control module is located on the transmission tunnel in the centre console, beside the parking brake. The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery, within these areas. The panels must be able to open in the correct way and at the right time.


WARNING: The ignition must be in position "0" and the key removed from the ignition if any connector in the SRS system is to be disassembled. Then wait at least five minutes. Then disconnect the battery negative lead before disassembling any of the connectors.

Antenna Kit Handsfree, Internal Antenna

Preparations







- Note the anti-theft radio code (if applicable)
- Move the front seats to their rearmost, uppermost positions

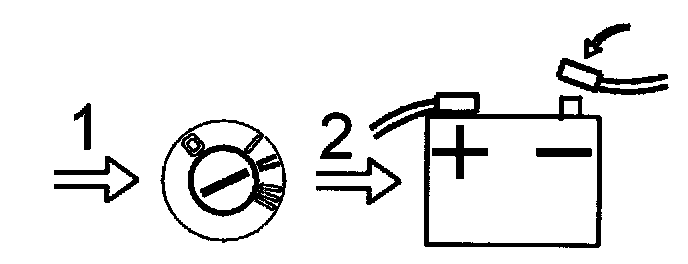

- Turn the ignition key to position 0
- Cars with manual gearboxes: Remove the ignition key
- Disconnect the battery negative lead.


NOTE: Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

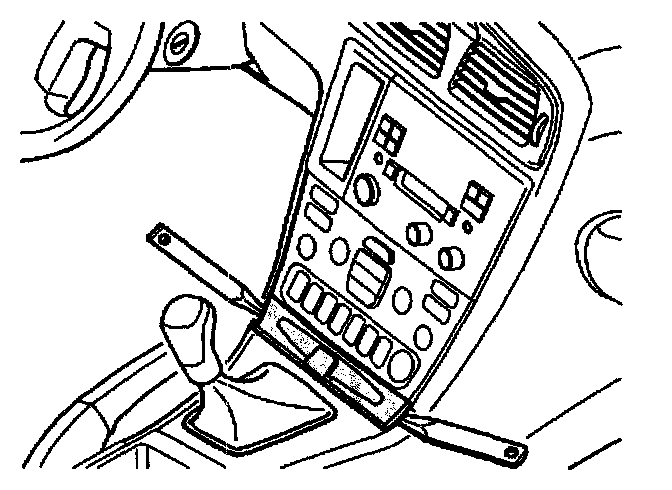

- Remove the panel in front of the gear selector lever. Pry off the panel using a weatherstrip tool
- Move the gear selector lever to its rearmost position.

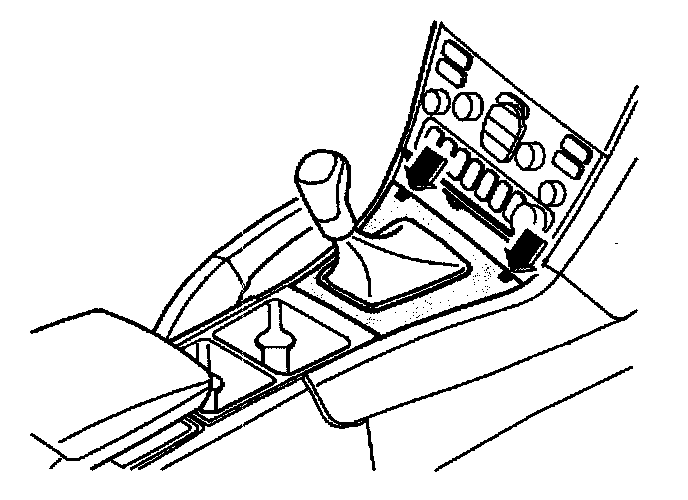

- Remove the panel around the gear selector lever. Press the two catches and pull up the front edge of the panel.

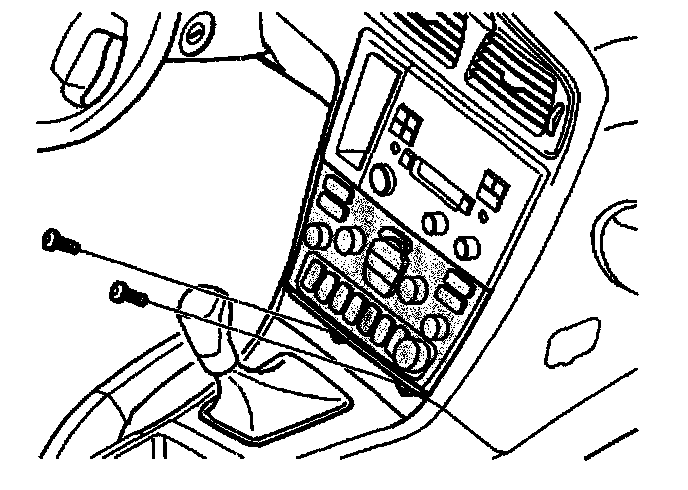

- Remove the two screws from the dashboard environment panel.

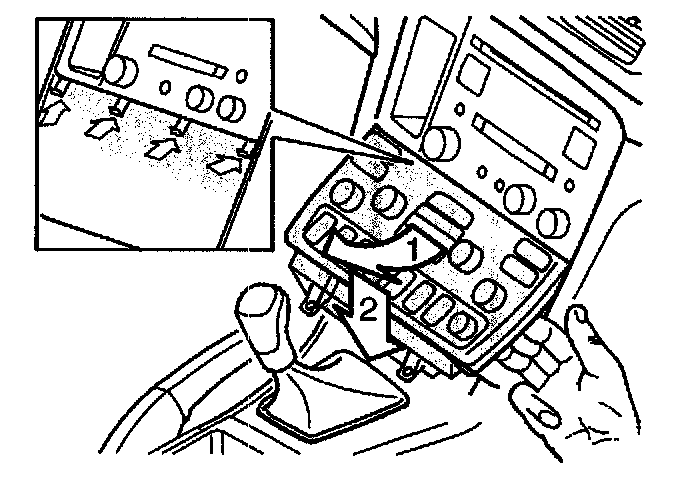

- Angle the dashboard environment panel outwards so that it is possible to insert a couple of fingers between the centre console and the reverse of the dashboard environment panel
- Remove the dashboard environment panel. Pull it downward, maintaining the same angle. Some force is required because the panel is tightly installed
- Disconnect the connectors on the reverse of the dashboard environment panel. Place the dashboard environment panel to one side.


NOTE: If any of the outer hooks break off, these must be repaired.

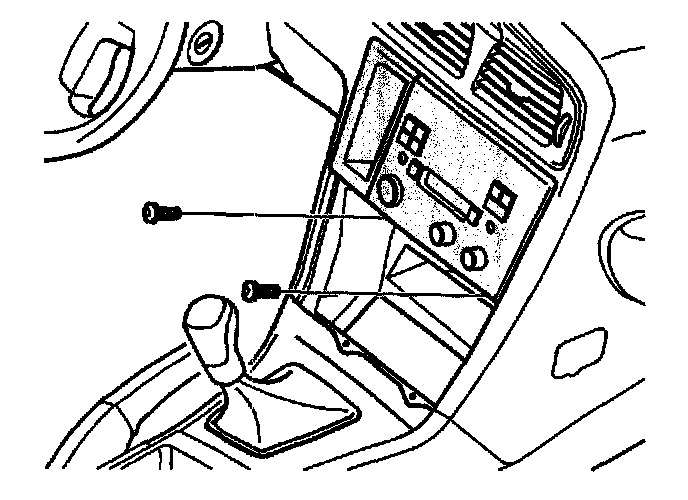

- Remove the screws from the radio bracket
- Pull out the bracket with the radio. Pull the lower corner while pressing downwards
- Disconnect the connectors on the radio. Remove the bracket with the radio.







- Remove the panel from the right hand end of the dashboard.







- Turn the clips in the rear edge of the panels 90 degrees. Remove the panels (1) by pulling the rear edge of the panels outwards and backwards
- Remove the two screws (3). Pry the rear edge of the panel (2) down until the three clips release. Remove the panel
- Pull the front edge of the sill moulding (4) for the right hand side front door backwards. Then pull upwards. Remove the sill moulding.

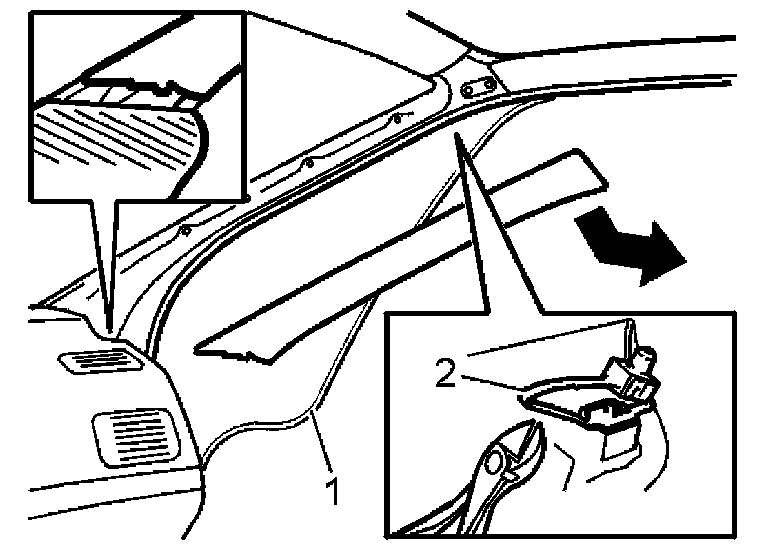

- Remove the rubber strip (1) at the front edge of the door opening
- Remove the A-post panel on the right-hand side. Pull out the upper edge of the panel to release the two clips
- Cut off the clip (2). New clips can be found in the kit
- Pull the panel upwards from the lower mounting.

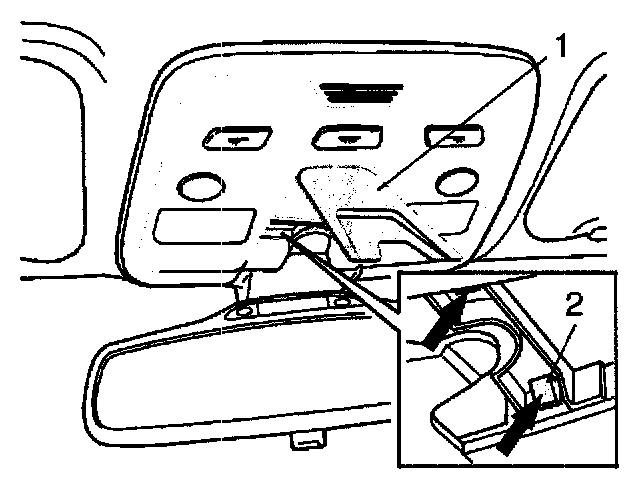

- Fold down the cover (1) by carefully pulling down the front edge of the cover
- Press the catches (2) together. Detach the front edge of the panel. Remove the panel.

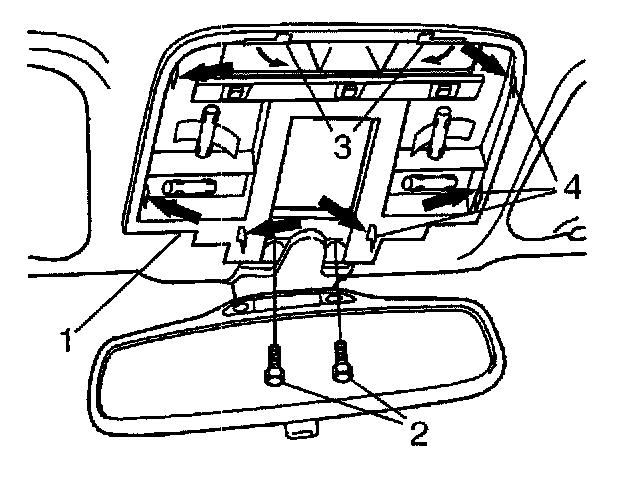

- Remove the bracket (1) and mirror. First remove the screws (2)and bend the tabs (3) forward
- Detach the clips (4) by pressing the clips inwards. Detach one side at a time
- Pull the bracket downwards so that it releases from the mountings. Allow the bracket to hang from the wiring.

Installation

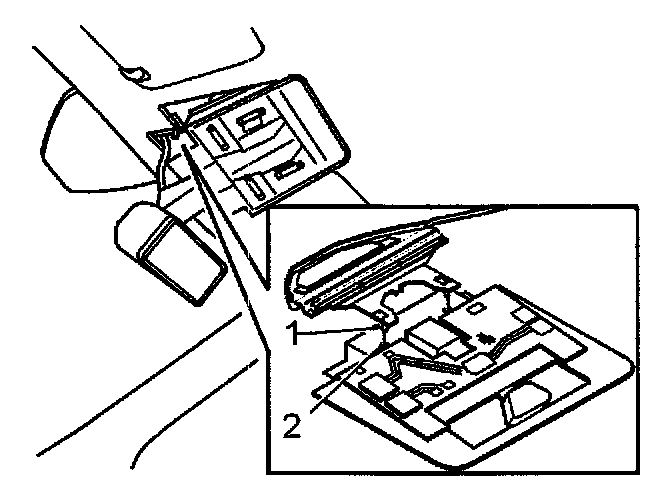

- Install the new antenna. Carefully bend the headlining downward and slide the antenna backward and inwards. Align the antenna lugs (1) with the grooves in the bracket (2)
- Insert the cable at the inside of the front edge of the headlining. Route the cable out towards the right-hand A-post
- Secure the cable using butyl tape
- Reinstall the bracket and rear view mirror
- Reinstall the panel. Securely lock the panel using the cover.







- Route the cable down from the headlining along the right A-post

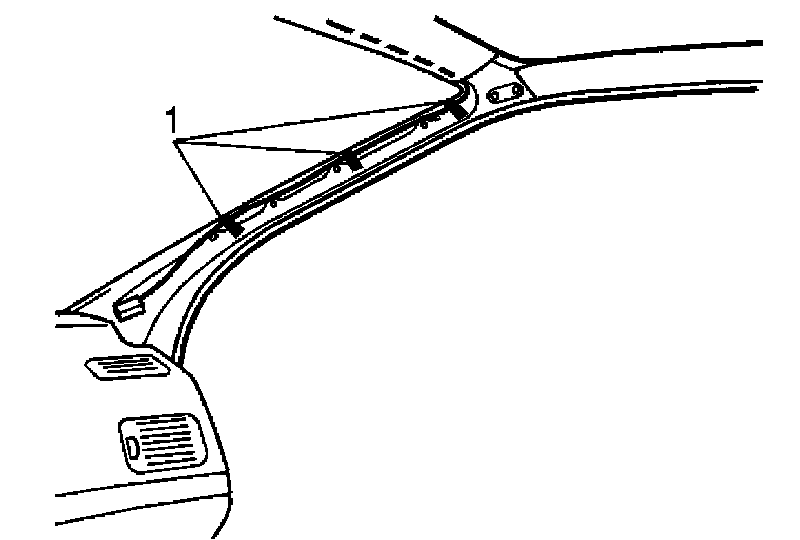

- Tape the cable onto the existing cable harness as illustrated (1).


WARNING: Ensure that the inflatable curtain is not trapped and does not catch on the antenna cable.







- Fold the right hand carpet back into place at the front seat

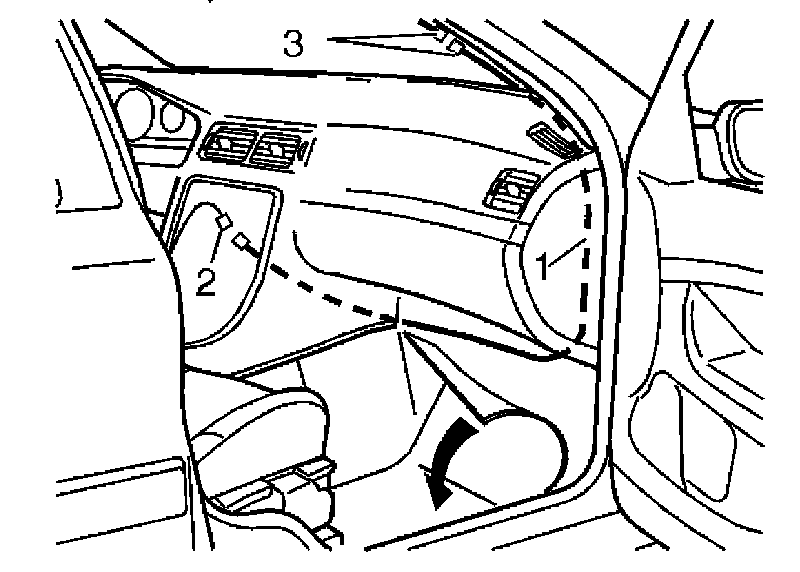

- Thread the extension cable (1) down between the A-post and the right hand side of the dashboard. Route the cable at the front edge of the floor
- Route the cable along the front edge of the floor to the left, to the inside of the centre console.

Applies when installing the carphone
- Connect the extension cable (1) to the remaining cable (2) from the carphone holder.

Illustration B applies to cars with other installed carphone antennas

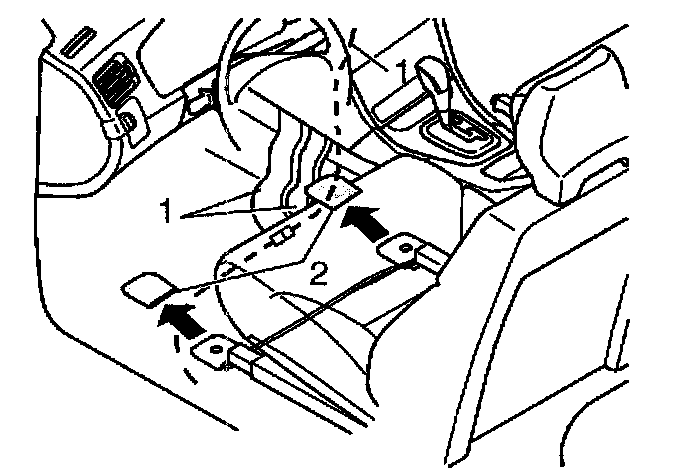

- Find the joint between the cable for the existing antenna and the cable from the carphone holder. The antenna cable is routed along the air ducts (1) and then down under the carpet, where the cable splice is
- Remove the two covers (2) from the front mounting for the seat to gain access under the carpet
- Detach the two cables from each other
- Pull the new antenna cable downwards. Connect the antenna cable where the old cable was disconnected
- Remove the old antenna if necessary.

Applies to all models







- Connect both connectors (3) at the right A-post to each other
- Wrap the foam tape around the connectors to prevent rattling. Secure the cable using butyl tape.

Applies to cars with the antenna installed later
- Connect the connectors to the radio. Reinstall the radio
- Connect the connectors to the dashboard environment panel.
Reinstall the dashboard environment panel.

Finishing work
- Fold the carpet at the right front seat back into position.

Reinstall:







- the carpet at the right-hand front seat
- the panel for the right end of the dashboard
- the A-post panel using new clips from the kit
- the right side panel for the centre console
- the soundproofing panel on the right-hand side
- the sill trim panel for the right-hand front door
- the rubber strip in the door frame in the right-hand front door.

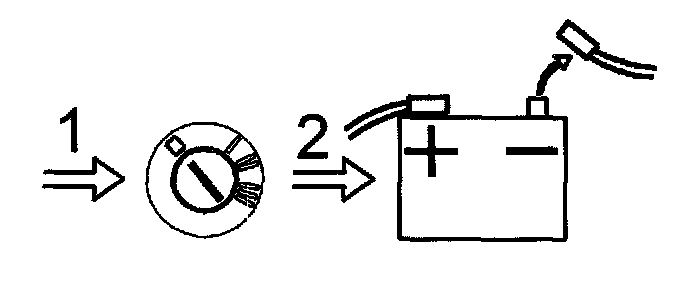

- Turn the ignition key to position II
- Reconnect the battery negative lead
- Program the software according to the service information in VADIS.
