Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code information

SWM-0025

Condition

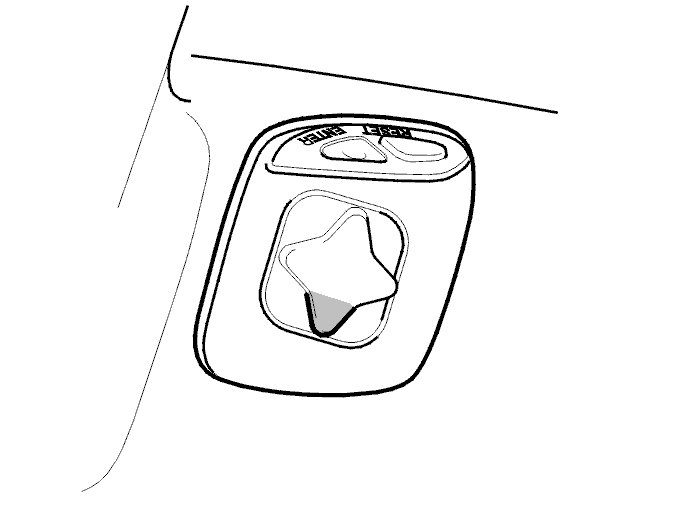

If SWM microprocessor/control unit registers that RTI Down button is activated for more than 5 minutes, diagnostic trouble code SWM-0025 is displayed.

Substitute value
Nothing.

Possible source
- RTI Down button is activated for more than 5 minutes.

Fault symptom[s]
- RTI settings change without RTI buttons being activated manually
- RTI steering wheel buttons do not work.
