Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

SWM-0020

Condition




Diagnostic trouble code (DTC) SWM-0020 is stored if the micro processor or steering wheel module registers that the Scan+ control is activated for more than 5 minutes.

Substitute value
None.

Possible source

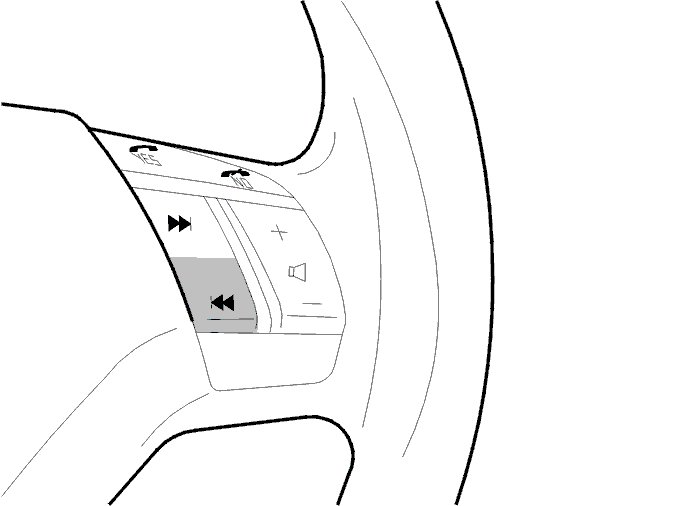

- The Scan+ control is activated for more than 5 minutes.

Fault symptom[s]
- The station setting changes without the scan+ or scan- buttons being manually activated
- The steering wheel radio controls do not function
- The carphone does not function.
