Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code information

SWM-0004

Condition

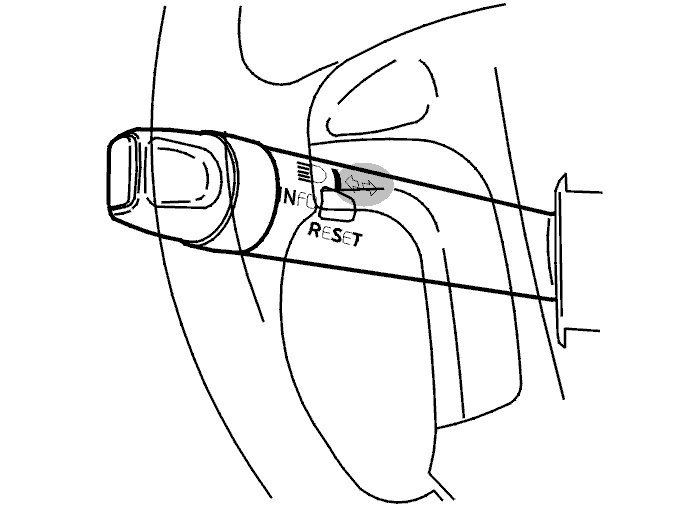

If the control unit registers that left and right switches on indicator lever are activated at the same time, diagnostic trouble code is displayed. Continuous checks are done when the microprocessor is in operation and switches are activated at the same time.

Possible source
- Left and right switches on indicator lever are activated at the same time.

Fault symptom[s]
- Indicator control does not work.
