Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code information

SWM-0002

Condition

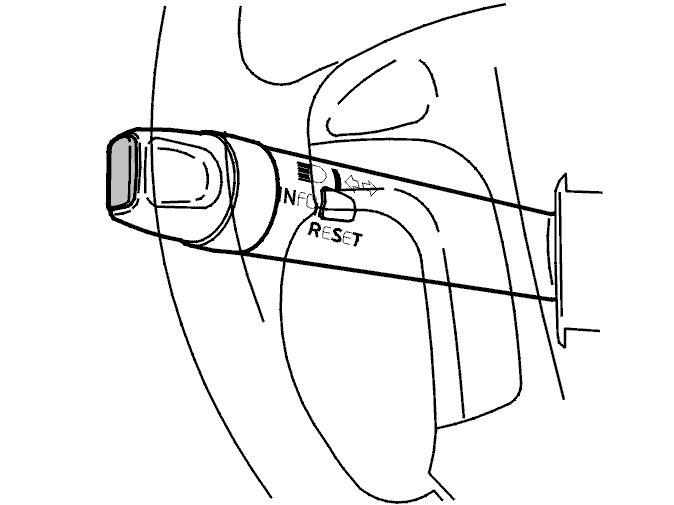

If the control unit registers that read button is activated for more than 60 seconds, diagnostic trouble code SWM-0002 is displayed. When the control unit is in operation, continuous checks of read button are done.





Substitute value
- Nothing.

Possible source
- Read button is activated for more than 60 seconds.

Fault symptom[s]
- Warning message on combined instrument warning display cannot be erased
- Message in combined instrument cannot be erased.
