Verification

Verification







HINT: After carrying out the repair, check that the fault has been remedied.

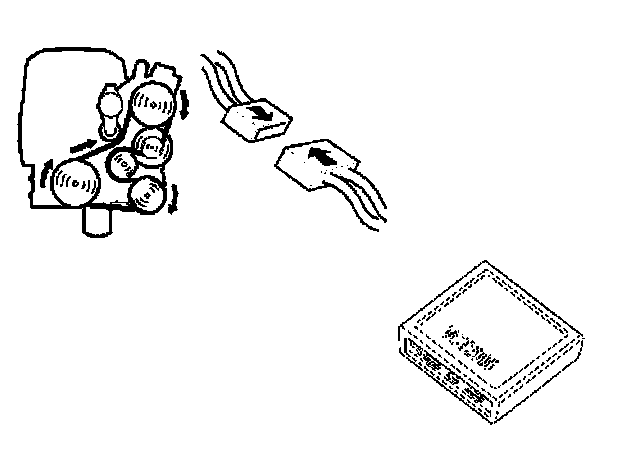

- Ignition off
- Reinstall the connectors, components etc.
- Start the engine
- Read off diagnostic trouble codes (DTCs).

The fault has been remedied if status of the diagnostic trouble code (DTC) is intermittent.

Is the status of the diagnostic trouble code (DTC) intermittent?

YES: Refer to Diagnostic Trouble Code Descriptions. Diagnostic Trouble Code Descriptions
NO: Refer to Fault-Tracing Information - Permanent Fault. Fault-Tracing Information - Permanent Fault
