Verification

Verification







HINT: After carrying out the repair, check that the fault has been remedied.

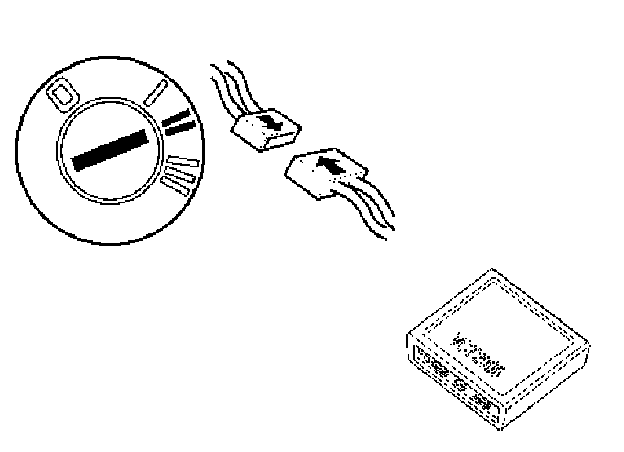

- Ignition off
- Reconnect the connectors, reinstall components etc.
- Ignition off
- Ignition on
- Read off the movement of the accelerator pedal by carefully depressing and releasing the accelerator pedal (AP).

Check that the value changes with accelerator pedal movement. The value must be approximately 0.4 V when the accelerator pedal (AP) is unaffected and approximately 4 V when the accelerator pedal (AP) is fully depressed.

The fault has been remedied if the values are OK.

Are these values OK?

YES: Refer to Diagnostic Trouble Code Descriptions. Diagnostic Trouble Code Descriptions
NO: Refer to Fault-Tracing Information - Permanent Fault. Fault-Tracing Information - Permanent Fault
